H05V-U/H07V-U/H07V-R

Application and Description

H05 V-U/(H)05 V-U

H05V-U/H07V-U/H07V-R cables are determined for the installation to the inside of apparatus as well as for the protective laying to the lightings, in dry rooms, in production facilities, switch and distributor boards, in tubes, under and surface mounting of plasters.



H07 V-U/(H)07 V-U

H05V-U/H07V-U/H07V-R cables are suitable for laying tubes, under and surface mounting of plasters and also in closed installation conduits. H05V-U/H07V-U/H07V-R cables are not allowed to install for direct laying in cable trays, channels or tanks. H05V-U/H07V-U/H07V-R cables are permitted for the inner wiring of equipment, distributor and switchboards and also for protective laying to the lightings with a nominal voltage up to 1000 V alternating current or up to 750 V direct current against ground..

Standard and Approval

NP2356/3

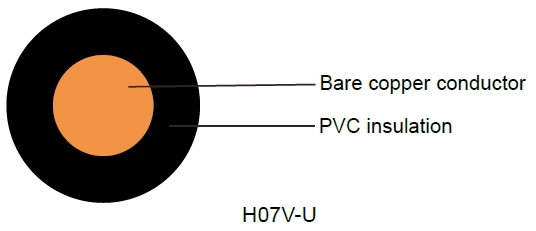

Cable Construction

Solid bare copper single wire
Solid to DIN VDE 0295 cl-1 and IEC 60228 cl-1
Special PVC TI1 core insulation
Cores to VDE-0293 colors on chart
H05V-U (20, 18 & 17 AWG)
H07V-U (16 AWG and Larger)

Technical Characteristics

Working voltage: 300/500v (H05V-U)
Working voltage: 450/750v (H07V-U)
Test voltage: 2000V(H05V-U)/2500V (H07V-U)
Flexing bending radius: 15 x Ø
Static bending radius: 15 x Ø
Flexing temperature: -5º C to +70º C
Static temperature: -30º C to +90º C
Short circuit temperature: +160º C
Flame retardant: IEC 60332.1
Insulation resistance: 10 MΩ x km

H05V-U/H07V-U/H07V-R H05V-U/H07V-U/H07V-R

Cable Parameter

AWG No. of Cores x Nominal Cross Sectional Area # x mm² Nominal Thickness of Insulation mm Nominal Overall Diameter mm Nominal Copper Weight kg/Km Nominal Weight kg/Km
20 1 x 0.5 0.6 2.1 4.8 9
18 1 x 0.75 0.6 2.2 7.2 11
17 1 x 1 0.6 2.4 9.6 14
16 1 x 1.5 0.7 2.9 14.4 21
14 1 x 2.5 0.8 3.5 24.0 33
12 1 x 4 0.8 3.9 38.0 49
10 1 x 6 0.8 4.5 58.0 69
8 1 x 10 1.0 5.7 96.0 115
