6192Y/ 6193Y to BS 6004

Application and Description

6192Y/ 6193Y to BS 6004 cables are suitable for fixed installation in dry or damp premises on walls, boards or trays, in channels or embedded in plaster. They should be laid in conduit in conduit or trunking where mechanical protection is required.

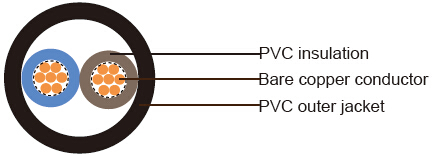

Cable Construction

• Fine bare copper strands

  Stranding to BS 6360, IEC 60228 CL-1 or 2

  PVC insulation type TI1 to BS 7655

  PVC sheath type T6 to BS 7655

Core Identification

• 2 cores: brown and blue

  3 cores: brown, black and grey

Technical Characteristics

• Working voltage: 300/500v

  Test voltage: 2000 volts

  Minimum bending radius: 4xOverall diameter

  Operating temperature: -15º C to +70º C

• Short circuit temperature: +160º C

  Flame retardant: IEC 60332.1

  - Insulation resistance: 10 MΩxkm

Cable Parameter

AWG (No of Strands/ Strand Diameter)	No. of Cores x Nominal Cross Sectional Area #xmm²	Nominal thickness  of insulation mm	Nominal thickness of sheath mm	Nominal overall dimensions		Nominal Weight kg/km
				lower limit mm	upper limit mm
6192Y
17	2 × 1.0	0.6	0.9	3.9x6.1	4.8x7.4	53
16	2 × 1.5	0.7	0.9	4.4x7.0	5.4x8.5	70
14	2 × 2.5	0.8	1	5.1x8.4	6.2x10.1	105
12(7/20)	2 × 4	0.8	1	5.7x9.5	6.9x11.5	150
10(7/18)	2 × 6	0.8	1.1	6.4x10.8	7.8x13.0	205
8(7/16)	2 × 10	1	1.2	7.9x13.4	9.5x16.2	325
6(7/14)	2 × 16	1	1.3	8.9x15.4	10.8x18.6	465
6193Y
17	3 × 1.0	0.6	0.9	3.9x8.4	4.8x10.1	77
16	3 × 1.5	0.7	0.9	4.4x9.6	5.3x11.7	100
14	3 × 2.5	0.8	1	5.1x11.6	6.2x14.0	150
12(7/20)	3 × 4	0.8	1.1	5.9x13.5	7.1x16.3	230
10(7/18)	3 × 6	0.8	1.1	6.4x15.1	7.8x18.2	300
8(7/16)	3 × 10	1	1.2	7.9x19.0	9.5x23.0	485
6(7/14)	3 × 16	1	1.3	8.9x21.8	10.8x26.3	700
