Industrial Cables - Multi-Core Flexible Cables
VC4V-K
Application and Description
VC4V-K cables with braided copper wire and are resistant to mineral oils. For use inside
buildings, especially for connecting parts of machines used for manufacturing, including machine tools.
Recommended in installations requiring electromagnetic protection to avoid the generation of parasite
currents in other circuits. Easy to handle during installation and laying, they are rodent-proof.
Standard and Approval
UNE 21031-13, IEC 60332-1, IEC 60332-1, EN 50265, IEC 60502, IEC 60228

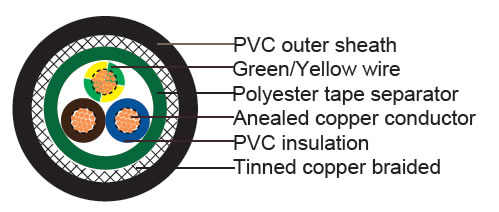

Cable Construction
Flexible annealed copper conductor
Class 5 in accordance with IEC 60228.
Polyvinyl chloride (PVC)
Color coded to HD 308
Polyester tape separator
High coverage tinned copper braided screen
Acrylic polyvinyl chloride (flexible PVC)
Technical Characteristics
Working voltage: 300/500vots 600/1000 volts
Test voltage: 2500 volts(600/1000 volts)
Minimum bending radius: 5 x Ø
Working temperature: -15º C to +70º C
Short circuit temperature: +160º C
Insulation resistance: 20 MΩ x km
Flame retardant: IEC 60332-1, EN 50265-2-1
Non-flame propagating: IEC 60332-3, EN 50266-2
Cable Parameter
| AWG (No of Strands/ Strand Diameter) | No. of Cores x Nominal Cross Sectional Area #xmm² |
Nominal Overall Diameter mm |
Nominal Weight kg/km |
| 300/500V | |||
| 17(32/32) | 2x1 | 7.7 | 76 |
| 16(30/30) | 2x1.5 | 8.6 | 95 |
| 14(50/30) | 2x2.5 | 9.8 | 121 |
| 17(32/32) | 3G1 | 8.1 | 88 |
| 16(30/30) | 3G1.5 | 9.3 | 124 |
| 14(50/30) | 3G2.5 | 10.9 | 174 |
| 17(32/32) | 4G1 | 8.8 | 114 |
| 16(30/30) | 4G1.5 | 9.8 | 138 |
| 14(50/30) | 4G2.5 | 11.8 | 213 |
| 17(32/32) | 5G1 | 9.6 | 140 |
| 16(30/30) | 5G1.5 | 11.1 | 185 |
| 17(32/32) | 6G1 | 10.8 | 172 |
| 16(30/30) | 6G1.5 | 12.2 | 224 |
| 17(32/32) | 8G1 | 12 | 218 |
| 16(30/30) | 8G1.5 | 14 | 288 |
| 17(32/32) | 10G1 | 13.1 | 239 |
| 17(32/32) | 12G1 | 13.4 | 271 |
| 16(30/30) | 12G1.5 | 15.7 | 358 |
| 17(32/32) | 16G1 | 14.9 | 350 |
| 17(32/32) | 19G1 | 15.9 | 402 |
| 16(30/30) | 24G1.5 | 22 | 723 |
| 600/1000V | |||
| 14(50/30) | 2x2.5 | 9.6 | 121 |
| 14(50/30) | 3G2.5 | 10.8 | 162 |
| 14(50/30) | 4G2.5 | 11.7 | 204 |
| 14(50/30) | 5G2.5 | 12.8 | 243 |
| 14(50/30) | 7G2.5 | 13.8 | 305 |
| 12(56/28) | 4G4.0 | 12.6 | 272 |
| 10(84/28) | 4G6.0 | 14.4 | 358 |
| 8(80/26) | 4G10 | 17.5 | 570 |
| 6(128/26) | 4G16 | 20.1 | 814 |
| 4(200/26) | 4G25 | 24.5 | 1224 |
| 2(280/26) | 4G35 | 28.2 | 1654 |
| 1(400/26) | 4G50 | 32.3 | 2249 |
| 2/0(356/24) | 4G70 | 37.5 | 3102 |
| 3/0(485/24) | 4G95 | 42.5 | 3931 |
