VVR-GRD

Application and Description

VVR-GRD cables are use for exposed wiring in air or use raceway, dry location.

Reference Standard

TIS 11-2531

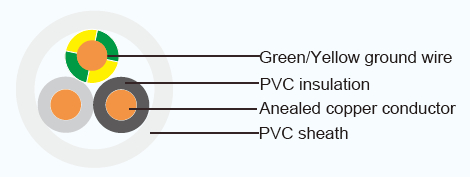

Cable Construction

VVR-GRD

Conductor : Solid and stranded annealed copper, Sizes: 1 mm² up to 35 mm²

Insulation : Polyvinyl chloride (PVC)

Color : Light grey, Black, Ground core:Green/Yellow

Sheath : Polyvinyl chloride (PVC), white color

Technical Characteristics

Maximum conductor temperature 70°C

Circuit voltage not exceeding 750 volts

Test voltage 2500 volts

Cable Parameter

NO. OF CORE CONDUCTOR GROUND CONDUCTOR THICKNESS OF SHEATH OVERALL DIAMETER MAXIMUM CONTINUOUS CURRENT RATING IN FREE AIR MINIMUM INSULATION RESISTANCE (AT 70°C) CABLE WEIGHT
SIZE NO.& DIA. OF WIRES THICKNESS OF INSULATION SIZE NO.& DIA. OF WIRES THICKNESS OF INSULATION
MM² NO./MM MM MM2 NO./MM MM MM MM A MOHM-KM KG/KM
2+1 1 1/1.13 0.6 1 1/1.13 0.6 0.9 8 15 0.0115 80
2+1 1 7/0.40 0.6 1 7/0.40 0.6 0.9 8.4 15 0.011 80
2+1 1.5 1/1.38 0.6 1 1/1.13 0.6 1.2 9.2 20 0.01 100
2+1 1.5 7/0.50 0.6 1 7/0.40 0.6 1.2 9.6 20 0.0094 100
2+1 2.5 1/1.78 0.7 1.5 1/1.38 0.6 1.2 10.5 25 0.0092 140
2+1 2.5 7/0.67 0.7 1.5 7/0.50 0.6 1.2 11.5 25 0.0084 140
2+1 4 1/2.25 0.8 2.5 1/1.78 0.6 1.2 12.5 33 0.0086 200
2+1 4 7/0.85 0.8 2.5 7/0.67 0.6 1.2 13 33 0.0078 200
2+1 6 7/1.04 0.8 4 7/0.85 0.6 1.2 14.5 45 0.0066 290
2+1 10 7/1.35 0.9 4 7/0.85 0.6 1.2 16 62 0.0059 410
2+1 16 7/1.70 1 6 7/1.04 0.6 1.4 19 81 0.0053 610
2+1 25 7/2.14 1.2 6 7/1.04 0.6 1.4 22.5 109 0.0051 880
2+1 35 19/1.53 1.2 10 7/1.35 0.6 1.4 25.5 134 0.0043 1176
3+1 1 1/1.13 0.6 1 1/1.13 0.6 0.9 8.6 13 0.0115 95
3+1 1 7/0.40 0.6 1 7/0.40 0.6 0.9 9 13 0.011 95
3+1 1.5 1/1.38 0.6 1 1/1.13 0.6 1.2 10 17 0.01 130
3+1 1.5 7/0.50 0.6 1 7/0.40 0.6 1.2 10.5 17 0.0094 130
3+1 2.5 1/1.78 0.7 1.5 1/1.38 0.6 1.2 11.5 21 0.0092 180
3+1 2.5 7/0.67 0.7 1.5 7/0.50 0.6 1.2 12.5 21 0.0084 180
3+1 4 1/2.25 0.8 2.5 1/1.78 0.6 1.2 13.5 30 0.0086 260
3+1 4 7/0.85 0.8 2.5 7/0.67 0.6 1.2 14 30 0.0078 260
3+1 6 7/1.04 0.8 4 7/0.85 0.6 1.2 15.5 38 0.0066 370
3+1 10 7/1.35 0.9 4 7/0.85 0.6 1.2 18.5 53 0.0059 530
3+1 16 7/1.70 1 6 7/1.04 0.6 1.4 22 71 0.0053 800
3+1 25 7/2.14 1.2 6 7/1.04 0.6 1.8 27.5 93 0.0051 1220
3+1 35 19/1.53 1.2 10 7/1.35 0.6 1.8 30.5 113 0.0043 1610
4+1 1 1/1.13 0.6 1 1/1.13 0.6 0.9 9.2 12 0.0115 110
4+1 1 7/0.40 0.6 1 7/0.40 0.6 0.9 9.8 12 0.011 110
4+1 1.5 1/1.38 0.6 1 1/1.13 0.6 1.2 11 15 0.01 150
4+1 1.5 7/0.50 0.6 1 7/0.40 0.6 1.2 11.5 15 0.0094 150
4+1 2.5 1/1.78 0.7 1.5 1/1.38 0.6 1.2 12.5 19 0.0092 220
4+1 2.5 7/0.67 0.7 1.5 7/0.50 0.6 1.2 13.5 19 0.0084 220
4+1 4 1/2.25 0.8 2.5 1/1.78 0.6 1.2 14.5 27 0.0086 330
4+1 4 7/0.85 0.8 2.5 7/0.67 0.6 1.2 15.5 27 0.0078 330
4+1 6 7/1.04 0.8 4 7/0.85 0.6 1.2 17 37 0.0066 470
4+1 10 7/1.35 0.9 4 7/0.85 0.6 1.4 20.5 49 0.0059 700
4+1 16 7/1.70 1 6 7/1.04 0.6 1.4 24.5 64 0.0053 1030
4+1 25 7/2.14 1.2 6 7/1.04 0.6 1.8 30 84 0.0051 1570
4+1 35 19/1.53 1.2 10 7/1.35 0.6 1.8 33.5 102 0.0043 2070
