FCVVS

Application and Description

FCVVS cables are used for supervisory electrical equipment, station control circuits, outdoor, suitable installation in dry or wet cable trenches.

Reference Standard

IEC 60502-1

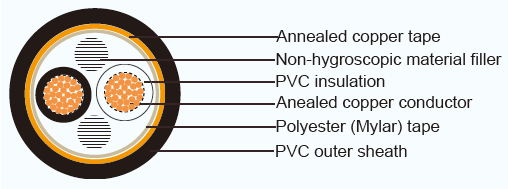

Cable Construction

FCVVS

Conductor : Flexible stranded annealed copper wires, Sizes : 0.5 mm² up to 6 mm²

Insulation : Polyvinyl chloride (PVC)

Color

2-4 cores : Black, White, Red and Green

More than 4 cores : Black core with marking numbers

Filler : Non-hygroscopic material(optional)

Binding tape : Polyester (Mylar) tape (optional)

Shield : Annealed copper tape, 0.1mm

Outer sheath : Polyvinyl chloride (PVC), Black color (A special flame retardant can be supplied)

Technical Characteristics

Maximum conductor temperature 70°C

Circuit voltage not exceeding 600 volts

Test voltage 3500 volts

Cable Parameter

NO. OF CORES CONDUCTOR INSULATION THICKNESS OUTER SHEATH THICKNESS OVERALL DIAMETER MAX. CONDUCTOR RESISTANCE (AT 20°C) MIN. INSULATION RESISTANCE (AT70°C) CABLE WEIGHT
SIZE NO. & DIA. OF WIRES DIAMETER
MM² NO./MM MM MM MM MM OHM/KM MOHM/KM KG/KM
2 0.5 16/0.20 0.92 0.6 1.2 10.5 39.0 0.0130 130
0.75 24/0.20 1.13 0.6 1.2 11 26.0 0.0114 140
1 32/0.20 1.31 0.6 1.2 11.5 19.5 0.0104 150
1.5 30/0.25 1.58 0.6 1.3 12 13.3 0.0089 180
2.5 50/0.25 2.04 0.7 1.3 13.5 7.98 0.0081 230
4 56/0.30 2.59 0.8 1.3 15 4.95 0.0076 300
6 84/0.30 3.6 0.8 1.4 17 3.30 0.0061 400
3 0.5 16/0.20 0.92 0.6 1.2 11 39.0 0.0130 140
0.75 24/0.20 1.13 0.6 1.2 11.5 26.0 0.0114 160
1 32/0.20 1.31 0.6 1.2 12 19.5 0.0104 170
1.5 30/0.25 1.58 0.6 1.3 12.5 13.3 0.0089 200
2.5 50/0.25 2.04 0.7 1.3 14 7.98 0.0081 270
4 56/0.30 2.59 0.8 1.4 16 4.95 0.0076 360
6 84/0.30 3.6 0.8 1.4 18 3.30 0.0061 480
4 0.5 16/0.20 0.92 0.6 1.2 11.5 39.0 0.0130 160
0.75 24/0.20 1.13 0.6 1.3 12 26.0 0.0114 180
1 32/0.20 1.31 0.6 1.3 12.5 19.5 0.0104 200
1.5 30/0.25 1.58 0.6 1.3 13.5 13.3 0.0089 240
2.5 50/0.25 2.04 0.7 1.3 15 7.98 0.0081 320
4 56/0.30 2.59 0.8 1.4 17 4.95 0.0076 430
6 84/0.30 3.6 0.8 1.4 19.5 3.30 0.0061 580
5 0.5 16/0.20 0.92 0.6 1.3 12.5 39.0 0.0130 190
0.75 24/0.20 1.13 0.6 1.3 13 26.0 0.0114 210
1 32/0.20 1.31 0.6 1.3 13.5 19.5 0.0104 230
1.5 30/0.25 1.58 0.6 1.3 14 13.3 0.0089 280
2.5 50/0.25 2.04 0.7 1.4 16 7.98 0.0081 380
4 56/0.30 2.59 0.8 1.4 18.5 4.95 0.0076 520
6 84/0.30 3.6 0.8 1.5 21 3.30 0.0061 700
6 0.5 16/0.20 0.92 0.6 1.3 13 39.0 0.0130 200
0.75 24/0.20 1.13 0.6 1.3 13.5 26.0 0.0114 230
1 32/0.20 1.31 0.6 1.3 14 19.5 0.0104 250
1.5 30/0.25 1.58 0.6 1.3 15 13.3 0.0089 300
2.5 50/0.25 2.04 0.7 1.4 17.5 7.98 0.0081 410
4 56/0.30 2.59 0.8 1.5 20 4.95 0.0076 570
6 84/0.30 3.6 0.8 1.5 23 3.30 0.0061 760
7 0.5 16/0.20 0.92 0.6 1.3 13 39.0 0.0130 200
0.75 24/0.20 1.13 0.6 1.3 13.5 26.0 0.0114 230
1 32/0.20 1.31 0.6 1.3 14 19.5 0.0104 260
1.5 30/0.25 1.58 0.6 1.3 15 13.3 0.0089 310
2.5 50/0.25 2.04 0.7 1.4 17.5 7.98 0.0081 440
4 56/0.30 2.59 0.8 1.5 20 4.95 0.0076 610
6 84/0.30 3.6 0.8 1.5 23 3.30 0.0061 820
8 0.5 16/0.20 0.92 0.6 1.3 13.5 39.0 0.0130 220
0.75 24/0.20 1.13 0.6 1.3 14.5 26.0 0.0114 260
1 32/0.20 1.31 0.6 1.4 15 19.5 0.0104 300
1.5 30/0.25 1.58 0.6 1.4 16 13.3 0.0089 350
2.5 50/0.25 2.04 0.7 1.5 18.5 7.98 0.0081 490
4 56/0.30 2.59 0.8 1.5 21 4.95 0.0076 680
6 84/0.30 3.6 0.8 1.6 25 3.30 0.0061 930
9 0.5 16/0.20 0.92 0.6 1.3 14.5 39.0 0.0130 240
0.75 24/0.20 1.13 0.6 1.4 15.5 26.0 0.0114 290
1 32/0.20 1.31 0.6 1.4 16 19.5 0.0104 330
1.5 30/0.25 1.58 0.6 1.4 17 13.3 0.0089 390
2.5 50/0.25 2.04 0.7 1.5 20 7.98 0.0081 550
4 56/0.30 2.59 0.8 1.6 23 4.95 0.0076 770
6 84/0.30 3.6 0.8 1.7 26.5 3.30 0.0061 1050
10 0.5 16/0.20 0.92 0.6 1.3 15.5 39.0 0.0130 260
0.75 24/0.20 1.13 0.6 1.4 16.5 26.0 0.0114 310
1 32/0.20 1.31 0.6 1.4 17 19.5 0.0104 350
1.5 30/0.25 1.58 0.6 1.4 18 13.3 0.0089 420
2.5 50/0.25 2.04 0.7 1.5 21 7.98 0.0081 600
4 56/0.30 2.59 0.8 1.6 24.5 4.95 0.0076 840
6 84/0.30 3.6 0.8 1.7 29 3.30 0.0061 1150
11 0.5 16/0.20 0.92 0.6 1.3 15.5 39.0 0.0130 280
0.75 24/0.20 1.13 0.6 1.4 17 26.0 0.0114 340
1 32/0.20 1.31 0.6 1.4 17.5 19.5 0.0104 380
1.5 30/0.25 1.58 0.6 1.4 18.5 13.3 0.0089 460
2.5 50/0.25 2.04 0.7 1.5 21.5 7.98 0.0081 650
4 56/0.30 2.59 0.8 1.6 25 4.95 0.0076 920
6 84/0.30 3.6 0.8 1.7 29.5 3.30 0.0061 1260
12 0.5 16/0.20 0.92 0.6 1.4 16 39.0 0.0130 290
0.75 24/0.20 1.13 0.6 1.4 17 26.0 0.0114 340
1 32/0.20 1.31 0.6 1.4 17.5 19.5 0.0104 390
1.5 30/0.25 1.58 0.6 1.4 18.5 13.3 0.0089 470
2.5 50/0.25 2.04 0.7 1.5 21.5 7.98 0.0081 670
4 56/0.30 2.59 0.8 1.6 25 4.95 0.0076 960
6 84/0.30 3.6 0.8 1.7 29.5 3.30 0.0061 1310
13 0.5 16/0.20 0.92 0.6 1.4 16.5 39.0 0.0130 320
0.75 24/0.20 1.13 0.6 1.4 17.5 26.0 0.0114 370
1 32/0.20 1.31 0.6 1.4 18 19.5 0.0104 420
1.5 30/0.25 1.58 0.6 1.5 19.5 13.3 0.0089 520
2.5 50/0.25 2.04 0.7 1.6 23 7.98 0.0081 740
4 56/0.30 2.59 0.8 1.7 26.5 4.95 0.0076 1060
6 84/0.30 3.6 0.8 1.7 31 3.30 0.0061 1430
14 0.5 16/0.20 0.92 0.6 1.4 16.5 39.0 0.0130 320
0.75 24/0.20 1.13 0.6 1.4 17.5 26.0 0.0114 380
1 32/0.20 1.31 0.6 1.4 18 19.5 0.0104 430
1.5 30/0.25 1.58 0.6 1.5 19.5 13.3 0.0089 530
2.5 50/0.25 2.04 0.7 1.6 23 7.98 0.0081 760
4 56/0.30 2.59 0.8 1.7 26.5 4.95 0.0076 1090
6 84/0.30 3.6 0.8 1.7 31 3.30 0.0061 1480
15 0.5 16/0.20 0.92 0.6 1.4 17 39.0 0.0130 350
0.75 24/0.20 1.13 0.6 1.4 18 26.0 0.0114 410
1 32/0.20 1.31 0.6 1.5 19 19.5 0.0104 480
1.5 30/0.25 1.58 0.6 1.5 20.5 13.3 0.0089 580
2.5 50/0.25 2.04 0.7 1.6 24 7.98 0.0081 830
4 56/0.30 2.59 0.8 1.7 28 4.95 0.0076 1190
6 84/0.30 3.6 0.8 1.8 33 3.30 0.0061 1630
16 0.5 16/0.20 0.92 0.6 1.4 17 39.0 0.0130 350
0.75 24/0.20 1.13 0.6 1.4 18 26.0 0.0114 420
1 32/0.20 1.31 0.6 1.5 19 19.5 0.0104 480
1.5 30/0.25 1.58 0.6 1.5 20.5 13.3 0.0089 590
2.5 50/0.25 2.04 0.7 1.6 24 7.98 0.0081 850
4 56/0.30 2.59 0.8 1.7 28 4.95 0.0076 1220
6 84/0.30 3.6 0.8 1.8 33 3.30 0.0061 1680
17 0.5 16/0.20 0.92 0.6 1.4 18 39.0 0.0130 380
0.75 24/0.20 1.13 0.6 1.5 19 26.0 0.0114 460
1 32/0.20 1.31 0.6 1.5 20 19.5 0.0104 520
1.5 30/0.25 1.58 0.6 1.5 21.5 13.3 0.0089 640
2.5 50/0.25 2.04 0.7 1.6 25 7.98 0.0081 920
4 56/0.30 2.59 0.8 1.8 29.5 4.95 0.0076 1340
6 84/0.30 3.6 0.8 1.8 34.5 3.30 0.0061 1820
18 0.5 16/0.20 0.92 0.6 1.4 18 39.0 0.0130 380
0.75 24/0.20 1.13 0.6 1.5 19 26.0 0.0114 460
1 32/0.20 1.31 0.6 1.5 20 19.5 0.0104 530
1.5 30/0.25 1.58 0.6 1.5 21.5 13.3 0.0089 650
2.5 50/0.25 2.04 0.7 1.6 25 7.98 0.0081 940
4 56/0.30 2.59 0.8 1.8 29.5 4.95 0.0076 1370
6 84/0.30 3.6 0.8 1.8 34.5 3.30 0.0061 1870
19 0.5 16/0.20 0.92 0.6 1.4 18 39.0 0.0130 390
0.75 24/0.20 1.13 0.6 1.5 19 26.0 0.0114 470
1 32/0.20 1.31 0.6 1.5 20 19.5 0.0104 540
1.5 30/0.25 1.58 0.6 1.5 21.5 13.3 0.0089 660
2.5 50/0.25 2.04 0.7 1.6 25 7.98 0.0081 960
4 56/0.30 2.59 0.8 1.8 29.5 4.95 0.0076 1400
6 84/0.30 3.6 0.8 1.8 34.5 3.30 0.0061 1920
20 0.5 16/0.20 0.92 0.6 1.4 18.5 39.0 0.0130 420
0.75 24/0.20 1.13 0.6 1.5 20 26.0 0.0114 500
1 32/0.20 1.31 0.6 1.5 21 19.5 0.0104 580
1.5 30/0.25 1.58 0.6 1.6 22.5 13.3 0.0089 720
2.5 50/0.25 2.04 0.7 1.7 26.5 7.98 0.0081 1050
4 56/0.30 2.59 0.8 1.8 31 4.95 0.0076 1510
6 84/0.30 3.6 0.8 1.9 36.5 3.30 0.0061 2080
21 0.5 16/0.20 0.92 0.6 1.4 18.5 39.0 0.0130 420
0.75 24/0.20 1.13 0.6 1.5 20 26.0 0.0114 510
1 32/0.20 1.31 0.6 1.5 21 19.5 0.0104 580
1.5 30/0.25 1.58 0.6 1.6 22.5 13.3 0.0089 730
2.5 50/0.25 2.04 0.7 1.7 26.5 7.98 0.0081 1060
4 56/0.30 2.59 0.8 1.8 31 4.95 0.0076 1530
6 84/0.30 3.6 0.8 1.9 36.5 3.30 0.0061 2120
22 0.5 16/0.20 0.92 0.6 1.5 19.5 39.0 0.0130 460
0.75 24/0.20 1.13 0.6 1.5 20.5 26.0 0.0114 550
1 32/0.20 1.31 0.6 1.5 21.5 19.5 0.0104 630
1.5 30/0.25 1.58 0.6 1.6 23.5 13.3 0.0089 780
2.5 50/0.25 2.04 0.7 1.7 27.5 7.98 0.0081 1140
4 56/0.30 2.59 0.8 1.8 32 4.95 0.0076 1650
6 84/0.30 3.6 0.8 1.9 38 3.30 0.0061 2280
23 0.5 16/0.20 0.92 0.6 1.5 19.5 39.0 0.0130 460
0.75 24/0.20 1.13 0.6 1.5 20.5 26.0 0.0114 550
1 32/0.20 1.31 0.6 1.5 21.5 19.5 0.0104 630
1.5 30/0.25 1.58 0.6 1.6 23.5 13.3 0.0089 790
2.5 50/0.25 2.04 0.7 1.7 27.5 7.98 0.0081 1150
4 56/0.30 2.59 0.8 1.8 32 4.95 0.0076 1660
6 84/0.30 3.6 0.8 1.9 38 3.30 0.0061 2310
24 0.5 16/0.20 0.92 0.6 1.5 20.5 39.0 0.0130 480
0.75 24/0.20 1.13 0.6 1.5 21.5 26.0 0.0114 570
1 32/0.20 1.31 0.6 1.6 23 19.5 0.0104 670
1.5 30/0.25 1.58 0.6 1.6 24.5 13.3 0.0089 820
2.5 50/0.25 2.04 0.7 1.7 29 7.98 0.0081 1200
4 56/0.30 2.59 0.8 1.9 34 4.95 0.0076 1750
6 84/0.30 3.6 0.8 2 41 3.30 0.0061 2460
25 0.5 16/0.20 0.92 0.6 1.5 21 39.0 0.0130 500
0.75 24/0.20 1.13 0.6 1.5 22 26.0 0.0114 600
1 32/0.20 1.31 0.6 1.6 23.5 19.5 0.0104 700
1.5 30/0.25 1.58 0.6 1.6 25 13.3 0.0089 870
2.5 50/0.25 2.04 0.7 1.7 29.5 7.98 0.0081 1270
4 56/0.30 2.59 0.8 1.9 35 4.95 0.0076 1850
6 84/0.30 3.6 0.8 2 41.5 3.30 0.0061 2600
26 0.5 16/0.20 0.92 0.6 1.5 21 39.0 0.0130 510
0.75 24/0.20 1.13 0.6 1.5 22 26.0 0.0114 610
1 32/0.20 1.31 0.6 1.6 23.5 19.5 0.0104 710
1.5 30/0.25 1.58 0.6 1.6 25 13.3 0.0089 880
2.5 50/0.25 2.04 0.7 1.7 29.5 7.98 0.0081 1290
4 56/0.30 2.59 0.8 1.9 35 4.95 0.0076 1880
6 84/0.30 3.6 0.8 2 41.5 3.30 0.0061 2650
27 0.5 16/0.20 0.92 0.6 1.5 21 39.0 0.0130 510
0.75 24/0.20 1.13 0.6 1.5 22 26.0 0.0114 610
1 32/0.20 1.31 0.6 1.6 23.5 19.5 0.0104 720
1.5 30/0.25 1.58 0.6 1.6 25 13.3 0.0089 890
2.5 50/0.25 2.04 0.7 1.8 29.5 7.98 0.0081 1320
4 56/0.30 2.59 0.8 1.9 35 4.95 0.0076 1920
6 84/0.30 3.6 0.8 2 41.5 3.30 0.0061 2700
28 0.5 16/0.20 0.92 0.6 1.5 21.5 39.0 0.0130 540
0.75 24/0.20 1.13 0.6 1.6 23 26.0 0.0114 660
1 32/0.20 1.31 0.6 1.6 24 19.5 0.0104 760
1.5 30/0.25 1.58 0.6 1.7 26 13.3 0.0089 950
2.5 50/0.25 2.04 0.7 1.8 30.5 7.98 0.0081 1390
4 56/0.30 2.59 0.8 1.9 36 4.95 0.0076 2020
6 84/0.30 3.6 0.8 2.1 43.5 3.30 0.0061 2870
29 0.5 16/0.20 0.92 0.6 1.5 21.5 39.0 0.0130 540
0.75 24/0.20 1.13 0.6 1.6 23 26.0 0.0114 660
1 32/0.20 1.31 0.6 1.6 24 19.5 0.0104 770
1.5 30/0.25 1.58 0.6 1.7 26 13.3 0.0089 960
2.5 50/0.25 2.04 0.7 1.8 30.5 7.98 0.0081 1420
4 56/0.30 2.59 0.8 1.9 36 4.95 0.0076 2060
6 84/0.30 3.6 0.8 2.1 43.5 3.30 0.0061 2920
30 0.5 16/0.20 0.92 0.6 1.5 21.5 39.0 0.0130 550
0.75 24/0.20 1.13 0.6 1.6 23 26.0 0.0114 670
1 32/0.20 1.31 0.6 1.6 24 19.5 0.0104 780
1.5 30/0.25 1.58 0.6 1.7 26 13.3 0.0089 980
2.5 50/0.25 2.04 0.7 1.8 30.5 7.98 0.0081 1440
4 56/0.30 2.59 0.8 1.9 36 4.95 0.0076 2090
6 84/0.30 3.6 0.8 2.1 43.5 3.30 0.0061 2970
31 0.5 16/0.20 0.92 0.6 1.5 22 39.0 0.0130 580
0.75 24/0.20 1.13 0.6 1.6 23.5 26.0 0.0114 710
1 32/0.20 1.31 0.6 1.6 25 19.5 0.0104 820
1.5 30/0.25 1.58 0.6 1.7 27 13.3 0.0089 1030
2.5 50/0.25 2.04 0.7 1.8 31.5 7.98 0.0081 1520
4 56/0.30 2.59 0.8 2 38 4.95 0.0076 2260
6 84/0.30 3.6 0.8 2.1 45 3.30 0.0061 3140
32 0.5 16/0.20 0.92 0.6 1.5 22 39.0 0.0130 580
0.75 24/0.20 1.13 0.6 1.6 23.5 26.0 0.0114 710
1 32/0.20 1.31 0.6 1.6 25 19.5 0.0104 830
1.5 30/0.25 1.58 0.6 1.7 27 13.3 0.0089 1040
2.5 50/0.25 2.04 0.7 1.8 31.5 7.98 0.0081 1540
4 56/0.30 2.59 0.8 2 38 4.95 0.0076 2290
6 84/0.30 3.6 0.8 2.1 45 3.30 0.0061 3190
33 0.5 16/0.20 0.92 0.6 1.5 22 39.0 0.0130 590
0.75 24/0.20 1.13 0.6 1.6 23.5 26.0 0.0114 720
1 32/0.20 1.31 0.6 1.6 25 19.5 0.0104 840
1.5 30/0.25 1.58 0.6 1.7 27 13.3 0.0089 1060
2.5 50/0.25 2.04 0.7 1.8 31.5 7.98 0.0081 1560
4 56/0.30 2.59 0.8 2 38 4.95 0.0076 2330
6 84/0.30 3.6 0.8 2.1 45 3.30 0.0061 3240
34 0.5 16/0.20 0.92 0.6 1.6 23 39.0 0.0130 630
0.75 24/0.20 1.13 0.6 1.6 24.5 26.0 0.0114 760
1 32/0.20 1.31 0.6 1.6 25.5 19.5 0.0104 880
1.5 30/0.25 1.58 0.6 1.7 27.5 13.3 0.0089 1110
2.5 50/0.25 2.04 0.7 1.9 33 7.98 0.0081 1660
4 56/0.30 2.59 0.8 2 39 4.95 0.0076 2450
6 84/0.30 3.6 0.8 2.2 46.5 3.30 0.0061 3420
35 0.5 16/0.20 0.92 0.6 1.6 23 39.0 0.0130 640
0.75 24/0.20 1.13 0.6 1.6 24.5 26.0 0.0114 770
1 32/0.20 1.31 0.6 1.6 25.5 19.5 0.0104 890
1.5 30/0.25 1.58 0.6 1.7 27.5 13.3 0.0089 1120
2.5 50/0.25 2.04 0.7 1.9 33 7.98 0.0081 1680
4 56/0.30 2.59 0.8 2 39 4.95 0.0076 2480
6 84/0.30 3.6 0.8 2.2 46.5 3.30 0.0061 3480
36 0.5 16/0.20 0.92 0.6 1.6 23 39.0 0.0130 640
0.75 24/0.20 1.13 0.6 1.6 24.5 26.0 0.0114 770
1 32/0.20 1.31 0.6 1.6 25.5 19.5 0.0104 900
1.5 30/0.25 1.58 0.6 1.7 27.5 13.3 0.0089 1140
2.5 50/0.25 2.04 0.7 1.9 33 7.98 0.0081 1700
4 56/0.30 2.59 0.8 2 39 4.95 0.0076 2520
6 84/0.30 3.6 0.8 2.2 46.5 3.30 0.0061 3530
37 0.5 16/0.20 0.92 0.6 1.6 23 39.0 0.0130 640
0.75 24/0.20 1.13 0.6 1.6 24.5 26.0 0.0114 780
1 32/0.20 1.31 0.6 1.6 25.5 19.5 0.0104 910
1.5 30/0.25 1.58 0.6 1.7 27.5 13.3 0.0089 1150
2.5 50/0.25 2.04 0.7 1.9 33 7.98 0.0081 1720
4 56/0.30 2.59 0.8 2 39 4.95 0.0076 2550
6 84/0.30 3.6 0.8 2.2 46.5 3.30 0.0061 3580
38 0.5 16/0.20 0.92 0.6 1.6 23.5 39.0 0.0130 680
0.75 24/0.20 1.13 0.6 1.6 25 26.0 0.0114 820
1 32/0.20 1.31 0.6 1.7 26.5 19.5 0.0104 970
1.5 30/0.25 1.58 0.6 1.7 28.5 13.3 0.0089 1210
2.5 50/0.25 2.04 0.7 1.9 34 7.98 0.0081 1800
4 56/0.30 2.59 0.8 2.1 41 4.95 0.0076 2700
6 84/0.30 3.6 0.8 2.2 48.5 3.30 0.0061 3750
39 0.5 16/0.20 0.92 0.6 1.6 23.5 39.0 0.0130 680
0.75 24/0.20 1.13 0.6 1.6 25 26.0 0.0114 830
1 32/0.20 1.31 0.6 1.7 26.5 19.5 0.0104 980
1.5 30/0.25 1.58 0.6 1.7 28.5 13.3 0.0089 1220
2.5 50/0.25 2.04 0.7 1.9 34 7.98 0.0081 1830
4 56/0.30 2.59 0.8 2.1 41 4.95 0.0076 2730
6 84/0.30 3.6 0.8 2.2 48.5 3.30 0.0061 3800
40 0.5 16/0.20 0.92 0.6 1.6 23.5 39.0 0.0130 680
0.75 24/0.20 1.13 0.6 1.6 25 26.0 0.0114 830
1 32/0.20 1.31 0.6 1.7 26.5 19.5 0.0104 980
1.5 30/0.25 1.58 0.6 1.7 28.5 13.3 0.0089 1230
2.5 50/0.25 2.04 0.7 1.9 34 7.98 0.0081 1840
4 56/0.30 2.59 0.8 2.1 41 4.95 0.0076 2750
6 84/0.30 3.6 0.8 2.2 48.5 3.30 0.0061 3840
41 0.5 16/0.20 0.92 0.6 1.6 25 39.0 0.0130 740
0.75 24/0.20 1.13 0.6 1.7 27 26.0 0.0114 900
1 32/0.20 1.31 0.6 1.7 28.5 19.5 0.0104 1050
1.5 30/0.25 1.58 0.6 1.8 31 13.3 0.0089 1320
2.5 50/0.25 2.04 0.7 1.9 36.5 7.98 0.0081 1960
4 56/0.30 2.59 0.8 2.1 44 4.95 0.0076 2920
6 84/0.30 3.6 0.8 2.3 52.5 3.30 0.0061 4090
42 0.5 16/0.20 0.92 0.6 1.6 25 39.0 0.0130 740
0.75 24/0.20 1.13 0.6 1.7 27 26.0 0.0114 910
1 32/0.20 1.31 0.6 1.7 28.5 19.5 0.0104 1060
1.5 30/0.25 1.58 0.6 1.8 31 13.3 0.0089 1330
2.5 50/0.25 2.04 0.7 1.9 36.5 7.98 0.0081 1980
4 56/0.30 2.59 0.8 2.1 44 4.95 0.0076 2960
6 84/0.30 3.6 0.8 2.3 52.5 3.30 0.0061 4140
43 0.5 16/0.20 0.92 0.6 1.6 25 39.0 0.0130 740
0.75 24/0.20 1.13 0.6 1.7 27 26.0 0.0114 910
1 32/0.20 1.31 0.6 1.7 28.5 19.5 0.0104 1060
1.5 30/0.25 1.58 0.6 1.8 31 13.3 0.0089 1340
2.5 50/0.25 2.04 0.7 1.9 36.5 7.98 0.0081 1990
4 56/0.30 2.59 0.8 2.1 44 4.95 0.0076 2970
6 84/0.30 3.6 0.8 2.3 52.5 3.30 0.0061 4170
44 0.5 16/0.20 0.92 0.6 1.6 25 39.0 0.0130 750
0.75 24/0.20 1.13 0.6 1.7 27 26.0 0.0114 920
1 32/0.20 1.31 0.6 1.7 28.5 19.5 0.0104 1070
1.5 30/0.25 1.58 0.6 1.8 31 13.3 0.0089 1350
2.5 50/0.25 2.04 0.7 2 37.5 7.98 0.0081 2070
4 56/0.30 2.59 0.8 2.2 44 4.95 0.0076 3030
6 84/0.30 3.6 0.8 2.3 53 3.30 0.0061 4280
45 0.5 16/0.20 0.92 0.6 1.6 25.5 39.0 0.0130 780
0.75 24/0.20 1.13 0.6 1.7 27.5 26.0 0.0114 960
1 32/0.20 1.31 0.6 1.7 29 19.5 0.0104 1120
1.5 30/0.25 1.58 0.6 1.8 31.5 13.3 0.0089 1420
2.5 50/0.25 2.04 0.7 2 38 7.98 0.0081 2170
4 56/0.30 2.59 0.8 2.2 45 4.95 0.0076 3180
6 84/0.30 3.6 0.8 2.3 53.5 3.30 0.0061 4480
46 0.5 16/0.20 0.92 0.6 1.6 25.5 39.0 0.0130 780
0.75 24/0.20 1.13 0.6 1.7 27.5 26.0 0.0114 960
1 32/0.20 1.31 0.6 1.7 29 19.5 0.0104 1120
1.5 30/0.25 1.58 0.6 1.8 31.5 13.3 0.0089 1420
2.5 50/0.25 2.04 0.7 2 38 7.98 0.0081 2170
4 56/0.30 2.59 0.8 2.2 45 4.95 0.0076 3190
6 84/0.30 3.6 0.8 2.3 53.5 3.30 0.0061 4500
47 0.5 16/0.20 0.92 0.6 1.6 25.5 39.0 0.0130 780
0.75 24/0.20 1.13 0.6 1.7 27.5 26.0 0.0114 970
1 32/0.20 1.31 0.6 1.7 29 19.5 0.0104 1130
1.5 30/0.25 1.58 0.6 1.8 31.5 13.3 0.0089 1430
2.5 50/0.25 2.04 0.7 2 38 7.98 0.0081 2190
4 56/0.30 2.59 0.8 2.2 45 4.95 0.0076 3220
6 84/0.30 3.6 0.8 2.3 53.5 3.30 0.0061 4550
48 0.5 16/0.20 0.92 0.6 1.6 25.5 39.0 0.0130 790
0.75 24/0.20 1.13 0.6 1.7 27.5 26.0 0.0114 980
1 32/0.20 1.31 0.6 1.7 29 19.5 0.0104 1140
1.5 30/0.25 1.58 0.6 1.8 31.5 13.3 0.0089 1450
2.5 50/0.25 2.04 0.7 2 38 7.98 0.0081 2220
4 56/0.30 2.59 0.8 2.2 45 4.95 0.0076 3270
6 84/0.30 3.6 0.8 2.4 54 3.30 0.0061 4650
