CVVAMS

Application and Description

CVVAMS cables are used for electric signal transmission of control or monitoring circuits for 0.6/1kV

Reference Standard

IEC 60502-1

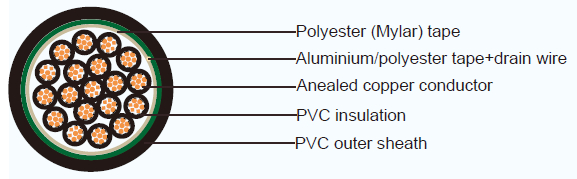

Cable Construction

CVVAMS

Conductor : Stranded annealed copper wires, Sizes : 1.5 mm² up to 10 mm²

Insulation : Polyvinyl chloride (PVC)

Color : Black with marking numbers

Filler : Non-hygroscopic material(optional)

Binding tape : Polyester (Mylar) tape (optional)

Overall Screen 1 : Aluminium/polyester tape is applied over each pair metallic side down in contact with tinned copper drain wire.

Sheath : Polyvinyl chloride (PVC), Black color (other colors can be provided upn request)

Technical Characteristics

Maximum conductor temperature 70°C

Circuit voltage not exceeding 600 volts

Test voltage : 3500 volts

Cable Parameter

NO. OF CORES CONDUCTOR THICKNESS OF INSULATION THICKNESS OF OUTER SHEATH OVERALL DIAMETER MAXIMUM CONDUCTOR RESISTANCE (AT 20°C) CABLE WEIGHT
NOMINAL CROSS- SECTIONAL AREA NO.& DIA. OF  WIRES DIAMETER
MM2 MM MM MM MM MM OHM/KM KG/KM
2 1.5 7/0.53 1.59 0.8 1.8 12 12.1 160
2.5 7/0.67 2.01 0.8 1.8 13 7.41 190
4 7/0.85 2.55 1 1.8 14.5 4.61 260
6 7/1.04 3.12 1 1.8 16 3.08 320
10 7/1.35 4.05 1 1.8 17.5 1.83 430
3 1.5 7/0.53 1.59 0.8 1.8 12.5 12.1 190
2.5 7/0.67 2.01 0.8 1.8 13.5 7.41 240
4 7/0.85 2.55 1 1.8 15.5 4.61 330
6 7/1.04 3.12 1 1.8 17 3.08 410
10 7/1.35 4.05 1 1.8 18.5 1.83 570
4 1.5 7/0.53 1.59 0.8 1.8 13.5 12.1 230
2.5 7/0.67 2.01 0.8 1.8 14.5 7.41 290
4 7/0.85 2.55 1 1.8 16.5 4.61 410
6 7/1.04 3.12 1 1.8 18 3.08 520
10 7/1.35 4.05 1 1.8 20.5 1.83 720
5 1.5 7/0.53 1.59 0.8 1.8 14.5 12.1 270
2.5 7/0.67 2.01 0.8 1.8 15.5 7.41 340
4 7/0.85 2.55 1 1.8 18 4.61 490
6 7/1.04 3.12 1 1.8 19.5 3.08 630
10 7/1.35 4.05 1 1.8 22.5 1.83 870
6 1.5 7/0.53 1.59 0.8 1.8 15.5 12.1 310
2.5 7/0.67 2.01 0.8 1.8 16.5 7.41 400
4 7/0.85 2.55 1 1.8 19.5 4.61 580
6 7/1.04 3.12 1 1.8 21.5 3.08 740
10 7/1.35 4.05 1 1.8 24.5 1.83 1040
7 1.5 7/0.53 1.59 0.8 1.8 15.5 12.1 340
2.5 7/0.67 2.01 0.8 1.8 16.5 7.41 430
4 7/0.85 2.55 1 1.8 19.5 4.61 630
6 7/1.04 3.12 1 1.8 21.5 3.08 810
10 7/1.35 4.05 1 1.8 24.5 1.83 1150
8 1.5 7/0.53 1.59 0.8 1.8 16.5 12.1 390
2.5 7/0.67 2.01 0.8 1.8 17.5 7.41 490
4 7/0.85 2.55 1 1.8 21.5 4.61 730
6 7/1.04 3.12 1 1.8 23.5 3.08 940
10 7/1.35 4.05 1 1.8 26.5 1.83 1330
10 1.5 7/0.53 1.59 0.8 1.8 18.5 12.1 470
2.5 7/0.67 2.01 0.8 1.8 20.5 7.41 600
4 7/0.85 2.55 1 1.8 24.5 4.61 890
6 7/1.04 3.12 1 1.8 26.5 3.08 1150
10 7/1.35 4.05 1 1.8 30.5 1.83 1640
12 1.5 7/0.53 1.59 0.8 1.8 18.5 12.1 530
2.5 7/0.67 2.01 0.8 1.8 20.5 7.41 690
4 7/0.85 2.55 1 1.8 25.5 4.61 1030
6 7/1.04 3.12 1 1.8 27.5 3.08 1330
10 7/1.35 4.05 1 1.8 31.5 1.83 1910
15 1.5 7/0.53 1.59 0.8 1.8 20.5 12.1 640
2.5 7/0.67 2.01 0.8 1.8 22.5 7.41 830
4 7/0.85 2.55 1 1.8 27.5 4.61 1250
6 7/1.04 3.12 1 1.8 29.5 3.08 1630
20 1.5 7/0.53 1.59 0.8 1.8 22 12.1 820
2.5 7/0.67 2.01 0.8 1.8 25.0 7.41 1070
4 7/0.85 2.55 1 1.8 30.0 4.61 1630
6 7/1.04 3.12 1 1.8 33 3.08 2130
30 1.5 7/0.53 1.59 0.8 1.8 26 12.1 1160
2.5 7/0.67 2.01 0.8 1.8 29 7.41 1540
4 7/0.85 2.55 1 1.9 36 4.61 2370
