CCES cables are used in control circuits required electrostatic shielding in underground duct, conduit and open air.
IEC 60502-1

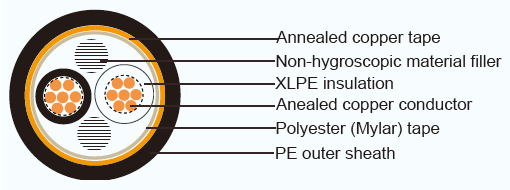

Conductor : Stranded annealed copper wires, Sizes: 1.5 mm² up to 10 mm²
Insulation : Cross-linked polyethylene(XLPE)
Color
2-4 cores : Black, White, Red and Green
More than 4 cores : Black core with marking numbers
Filler : Non-hygroscopic material(optional)
Binding tape : Polyester (Mylar) tape (optional) Shield: Annealed copper tape, 0.1mm
Outer sheath : Polyethylene(PE), Black color (A special flame retardant can be supplied)
Maximum conductor temperature 90°C
Circuit voltage not exceeding 600 volts
Test voltage 3500 volts
NO. OF CORES | CONDUCTOR | THICKNESS OF INSULATION | THICKNESS OF OUTER SHEATH | OVERALL DIAMETER | MAXIMUM CONDUCTOR RESISTANCE (AT 20°C) | CABLE WEIGHT | ||
---|---|---|---|---|---|---|---|---|
NOMINAL CROSS- SECTIONAL AREA | NO.& DIA. OF WIRES | DIAMETER | ||||||
MM² | MM | MM | MM | MM | MM | OHM/KM | KG/KM | |
2 | 1.5 | 7 / 0.53 | 1.59 | 0.8 | 1.8 | 11.4 | 12.1 | 148 |
2.5 | 7 / 0.67 | 2.01 | 0.8 | 1.8 | 12.3 | 7.41 | 173 | |
4 | 7 / 0.85 | 2.55 | 1.0 | 1.8 | 14.2 | 4.61 | 237 | |
6 | 7 / 1.04 | 3.12 | 1.0 | 1.8 | 15.4 | 3.08 | 290 | |
10 | 7 / 1.35 | 4.05 | 1.0 | 1.8 | 16.9 | 1.83 | 343 | |
3 | 1.5 | 7 / 0.53 | 1.59 | 0.8 | 1.8 | 11.9 | 12.1 | 169 |
2.5 | 7 / 0.67 | 2.01 | 0.8 | 1.8 | 12.9 | 7.41 | 214 | |
4 | 7 / 0.85 | 2.55 | 1.0 | 1.8 | 15.0 | 4.61 | 301 | |
6 | 7 / 1.04 | 3.12 | 1.0 | 1.8 | 16.2 | 3.08 | 375 | |
10 | 7 / 1.35 | 4.05 | 1.0 | 1.8 | 17.9 | 1.83 | 457 | |
4 | 1.5 | 7 / 0.53 | 1.59 | 0.8 | 1.8 | 12.8 | 12.1 | 197 |
2.5 | 7 / 0.67 | 2.01 | 0.8 | 1.8 | 13.9 | 7.41 | 245 | |
4 | 7 / 0.85 | 2.55 | 1.0 | 1.8 | 16.2 | 4.61 | 345 | |
6 | 7 / 1.04 | 3.12 | 1.0 | 1.8 | 17.6 | 3.08 | 433 | |
10 | 7 / 1.35 | 4.05 | 1.0 | 1.8 | 19.5 | 1.83 | 575 | |
5 | 1.5 | 7 / 0.53 | 1.59 | 0.8 | 1.8 | 13.8 | 12.1 | 227 |
2.5 | 7 / 0.67 | 2.01 | 0.8 | 1.8 | 15.0 | 7.41 | 287 | |
4 | 7 / 0.85 | 2.55 | 1.0 | 1.8 | 17.3 | 4.61 | 410 | |
6 | 7 / 1.04 | 3.12 | 1.0 | 1.8 | 19.2 | 3.08 | 526 | |
10 | 7 / 1.35 | 4.05 | 1.0 | 1.8 | 21.4 | 1.83 | 690 | |
6 | 1.5 | 7 / 0.53 | 1.59 | 0.8 | 1.8 | 14.8 | 12.1 | 248 |
2.5 | 7 / 0.67 | 2.01 | 0.8 | 1.8 | 16.1 | 7.41 | 322 | |
4 | 7 / 0.85 | 2.55 | 1.0 | 1.8 | 19.0 | 4.61 | 486 | |
6 | 7 / 1.04 | 3.12 | 1.0 | 1.8 | 20.8 | 3.08 | 614 | |
10 | 7 / 1.35 | 4.05 | 1.0 | 1.8 | 23.2 | 1.83 | 838 | |
7 | 1.5 | 7 / 0.53 | 1.59 | 0.8 | 1.8 | 14.8 | 12.1 | 279 |
2.5 | 7 / 0.67 | 2.01 | 0.8 | 1.8 | 16.1 | 7.41 | 362 | |
4 | 7 / 0.85 | 2.55 | 1.0 | 1.8 | 19.0 | 4.61 | 543 | |
6 | 7 / 1.04 | 3.12 | 1.0 | 1.8 | 20.8 | 3.08 | 710 | |
10 | 7 / 1.35 | 4.05 | 1.0 | 1.8 | 23.2 | 1.83 | 972 | |
8 | 1.5 | 7 / 0.53 | 1.59 | 0.8 | 1.8 | 15.8 | 12.1 | 312 |
2.5 | 7 / 0.67 | 2.01 | 0.8 | 1.8 | 17.3 | 7.41 | 408 | |
4 | 7 / 0.85 | 2.55 | 1.0 | 1.8 | 20.5 | 4.61 | 608 | |
6 | 7 / 1.04 | 3.12 | 1.0 | 1.8 | 21.7 | 3.08 | 789 | |
10 | 7 / 1.35 | 4.05 | 1.0 | 1.8 | 24.5 | 1.83 | 1074 | |
10 | 1.5 | 7 / 0.53 | 1.59 | 0.8 | 1.8 | 18.2 | 12.1 | 408 |
2.5 | 7 / 0.67 | 2.01 | 0.8 | 1.8 | 19.9 | 7.41 | 532 | |
4 | 7 / 0.85 | 2.55 | 1.0 | 1.8 | 23.8 | 4.61 | 792 | |
6 | 7 / 1.04 | 3.12 | 1.0 | 1.8 | 22.4 | 3.08 | 1019 | |
10 | 7 / 1.35 | 4.05 | 1.0 | 1.8 | 29.6 | 1.83 | 1392 | |
12 | 1.5 | 7 / 0.53 | 1.59 | 0.8 | 1.8 | 18.7 | 12.1 | 462 |
2.5 | 7 / 0.67 | 2.01 | 0.8 | 1.8 | 20.5 | 7.41 | 597 | |
4 | 7 / 0.85 | 2.55 | 1.0 | 1.8 | 24.6 | 4.61 | 898 | |
6 | 7 / 1.04 | 3.12 | 1.0 | 1.8 | 27.0 | 3.08 | 1176 | |
10 | 7 / 1.35 | 4.05 | 1.0 | 1.8 | 30.5 | 1.83 | 1629 | |
15 | 1.5 | 7 / 0.53 | 1.59 | 0.8 | 1.8 | 20.0 | 12.1 | 537 |
2.5 | 7 / 0.67 | 2.01 | 0.8 | 1.8 | 22.1 | 7.41 | 717 | |
4 | 7 / 0.85 | 2.55 | 1.0 | 1.8 | 26.4 | 4.61 | 1066 | |
6 | 7 / 1.04 | 3.12 | 1.0 | 1.8 | 29.1 | 3.08 | 1402 | |
20 | 1.5 | 7 / 0.53 | 1.59 | 0.8 | 1.8 | 22.1 | 12.1 | 646 |
2.5 | 7 / 0.67 | 2.01 | 0.8 | 1.8 | 24.5 | 7.41 | 871 | |
4 | 7 / 0.85 | 2.55 | 1.0 | 1.8 | 29.5 | 4.61 | 1367 | |
6 | 7 / 1.04 | 3.12 | 1.0 | 1.8 | 32.5 | 3.08 | 1826 | |
30 | 1.5 | 7 / 0.53 | 1.59 | 0.8 | 1.8 | 26.3 | 12.1 | 942 |
2.5 | 7 / 0.67 | 2.01 | 0.8 | 1.8 | 28.2 | 7.41 | 1242 | |
4 | 7 / 0.85 | 2.55 | 1.0 | 1.9 | 35.6 | 4.61 | 1964 |
