High Temperature Cables

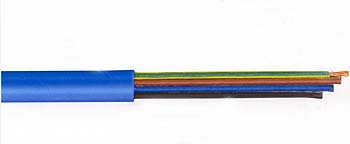

TML Cable Flat - Type A for Process Water, Type B for Drinking Water
Product application :
As connection cable for submersible electric motors (pumps) for the permanent use in process and drinking water up to a temperature of 70°C.
Product characteristic:
Construction:
Fine stranded bare copper conductor
EPR outer sheath
EPR insulation
Technical:
Characteristics at 20oC:
Rated voltage : 600/1000V
Maximum admissible operating voltage:
in 1 ph and 3 ph systems : 720 / 1200V
in D C systems : 1800 V
conductor resistance to DIN / VDE 0295
Test voltage 50Hz, 5 min : 2500 V
Temperature range:
Maximum admissible conductor
Temperature in operation 90°C
Short circuit temperature 250°C
Fixed : -40°C up to + 80°C
In motion : -25°C up to + 80°C
Tensile stress : maximum 15 N each sqmm conductor cross section
Properties:
Adapted to DIN VDE 0250 and DIN VDE 0282
Excellent insulation properties in water
Very low water absorption
Preservation of the mechanical strength
BAM* certificate VI.31/10904/01 - confirming the suitability of TML type B in drinking water.
Product specification:
AWG |
No. of Cores |
Conductor cross section |
Outer Diameter |
Gross |
Gross weight |
16 |
3 |
1.5 |
13 x 7 |
43 |
125 |
14 |
3 |
2.5 |
16 x 8 |
72 |
185 |
12 |
3 |
4 |
19 x 9 |
115 |
290 |
10 |
3 |
6 |
23 x 10 |
173 |
400 |
8 |
3 |
10 |
28 x 12 |
288 |
620 |
6 |
3 |
16 |
31 x 14 |
461 |
900 |
4 |
3 |
25 |
37 x 17 |
720 |
1150 |
2 |
3 |
35 |
38 x 17 |
1008 |
1550 |
1 |
3 |
50 |
45 x 20 |
1440 |
2200 |
2/0 |
3 |
70 |
52 x 22 |
2016 |
2900 |
3/0 |
3 |
95 |
58 x 25 |
2736 |
3800 |
16 |
4 |
1.5 |
17 x 7 |
58 |
160 |
14 |
4 |
2.5 |
20 x 8 |
96 |
250 |
12 |
4 |
4 |
24 x 9 |
154 |
340 |
10 |
4 |
6 |
26 x 10 |
230 |
450 |
8 |
4 |
10 |
31 x 11 |
384 |
850 |
6 |
4 |
16 |
36 x 13 |
614 |
1200 |
4 |
4 |
25 |
45 x 15 |
960 |
1600 |
2 |
4 |
35 |
48 x 17 |
1344 |
2100 |
1 |
4 |
50 |
59 x 20 |
1920 |
2900 |
