High Temperature Cables

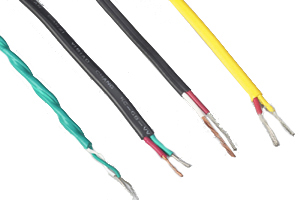

PVC Multi Pair Thermocouple Wire (105°C)
Product application:
PVC Multi Pair Thermocouple Wire may be used in the transmission of telephone or other signals.
Product characteristic:
Construction:
20 gauge solid thermocouple alloy.
Extruded high temperature 105°C PVC insulation.
Color coded twisted pairs, numbered sequentially for easy identification.
Matched pairs are twisted to reduce the amount of electromagnetic interference.
Flame retardant PVC jacket with ripcord.
On individually shielded pairs the shields are isolated from each other.
Technical:
Continuous temperature rating: 105°C
Minimum Bend Radius: insulation 3 x cable Ø
overall 5 x cable Ø
Limits of Error: Conforms to ASTM E230, IEC 584, and ANSI MC 96.1
Color Code: Conforms to ANSI, IEC, JIS
Properties:
Allows a multiple of sensors to be connected to associated instrumentation
Good resistance to weather, moisture, oils, alkalies, and mechanical abrasion
PVC offers high dielectric
Maximum noise rejection with overall shield
Transmission of telephone or other signal with communications wire in core
Non-propagating, flame retardant
Product specification:
Multi Pair Extension Cable With Overall Shield
AWG |
Strand |
Number of |
Thickness of Jacket |
O.D. |
Gross |
20 |
Solid |
4 |
1.016 |
9.042 |
100 |
20 |
Solid |
6 |
1.27 |
10.82 |
144 |
20 |
Solid |
8 |
1.27 |
11.76 |
179 |
20 |
Solid |
12 |
1.27 |
13.665 |
243 |
20 |
Solid |
16 |
1.27 |
15.748 |
324 |
20 |
Solid |
20 |
1.524 |
16.358 |
385 |
20 |
Solid |
24 |
1.524 |
18.44 |
455 |
20 |
Solid |
36 |
1.524 |
20.777 |
631 |
20 |
Solid |
50 |
1.778 |
24.282 |
867 |
20 |
Solid |
8 |
1.27 |
11.76 |
179 |
20 |
Solid |
6 |
1.27 |
10.82 |
144 |
20 |
Solid |
50 |
1.778 |
24.282 |
867 |
20 |
Solid |
4 |
1.016 |
9.042 |
100 |
20 |
Solid |
36 |
1.524 |
20.777 |
631 |
20 |
Solid |
24 |
1.524 |
18.44 |
455 |
20 |
Solid |
20 |
1.524 |
16.358 |
385 |
20 |
Solid |
16 |
1.27 |
15.748 |
324 |
20 |
Solid |
12 |
1.27 |
13.665 |
243 |
Multi Pair Extension Cable With Individually Shielded Pairs
AWG |
Strand |
Number of |
Thickness of |
O.D. |
Gross |
20 |
Solid |
4 |
1.27 |
10.668 |
135 |
20 |
Solid |
6 |
1.27 |
12.573 |
186 |
20 |
Solid |
8 |
1.27 |
13.589 |
231 |
20 |
Solid |
12 |
1.524 |
16.51 |
339 |
20 |
Solid |
16 |
1.524 |
18.161 |
430 |
20 |
Solid |
20 |
1.524 |
19.558 |
513 |
20 |
Solid |
24 |
1.524 |
21.717 |
598 |
20 |
Solid |
36 |
1.778 |
24.638 |
863 |
20 |
Solid |
50 |
1.778 |
28.829 |
1158 |
20 |
Solid |
8 |
1.27 |
13.589 |
231 |
20 |
Solid |
6 |
1.27 |
12.573 |
186 |
20 |
Solid |
50 |
1.778 |
28.829 |
1158 |
20 |
Solid |
4 |
1.27 |
10.668 |
135 |
20 |
Solid |
36 |
1.778 |
24.638 |
863 |
20 |
Solid |
24 |
1.524 |
21.717 |
598 |
20 |
Solid |
20 |
1.524 |
19.558 |
513 |
20 |
Solid |
16 |
1.524 |
18.161 |
430 |
20 |
Solid |
12 |
1.524 |
16.51 |
339 |
