HDMI Cables

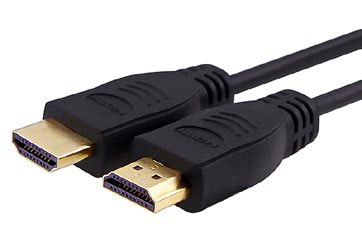

Standard 19 pin Type-A to Type-A Connector
CCL-HDMI
Application:
These HDMI cables are perfect for the home and office, whether you have a Home Theatre system, multi-screen computer setup or a portable device such as a Digital Camera or Mobile phone, these cables will allow you to enjoy 3D movies, Ultra HD content and web browsing via Games consoles, DVD/Blu-ray players, Set top boxes, PC’s and Laptops.
Specification:
Connector 1
o Type: 19 pin Male Type-A
o Terminals: Gold Plated
o Connector Dimensions: 13.9mm x 4.45mm
Connector 2
o Type: 19 pin Male Type-A
o Terminals: Gold Plated
o Connector Dimensions: 13.9mm x 4.45mm
CONSTRUCTION PARAMETERS
Part No. | Lenth | Conductor Size | Overall Diameter | Jacket Material |
m | AWG | mm | ||
CCL-HDMI-0.5M | 0.5 | 30 | 7.3+/-0.2 | PVC |
CCL-HDMI-1M | 1 | 30 | 7.3+/-0.2 | PVC |
CCL-HDMI-2M | 2 | 30 | 7.3+/-0.2 | PVC |
CCL-HDMI-3M | 3 | 30 | 7.3+/-0.2 | PVC |
CCL-HDMI-5M | 5 | 28 | 7.3+/-0.2 | PVC |
CCL-HDMI-10M | 10 | 26 | 8.6+/-0.2 | PVC |
CCL-HDMI-15M | 15 | 24 | 10.0+/-0.2 | PVC |
CCL-HDMI-20M | 20 | 24 | 10.0+/-0.2 | PVC |
Other Options
Slim HDMI Cables: Small diameter cable, reduces the visual impact compared tostandard and larger diameter cables |
|
Flat HDMI cable: Small diameter cable,reduces the visual impact compared to standard and larger diameter cables |
|
Mini HDMI male to HDMI male: For portable devices with a mini HDMI port |
|
Micro HDMI male to HDMI male: For portable devices with a micro HDMI port |
|
HDMI male to DVI male: For connecting a HDMI device to a DVI-D device. |
|

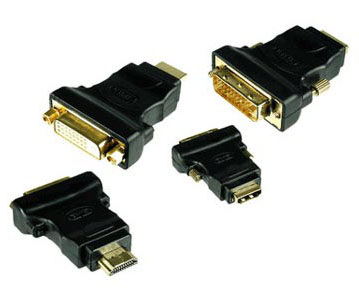

HDMI to DVI Adapters: For connecting a HDMI device to a DVI-D device. |
