Italian Standard Control Cable
FROR 300/500 V
Flexible multicore cable, flame retardant and with reduced emission of corrosive gases.
Normative references:
Italian standard: | CPT 007 | CEI 20-22 II | |||
Colours code: | CEI UNEL 00722/ HD 308 |

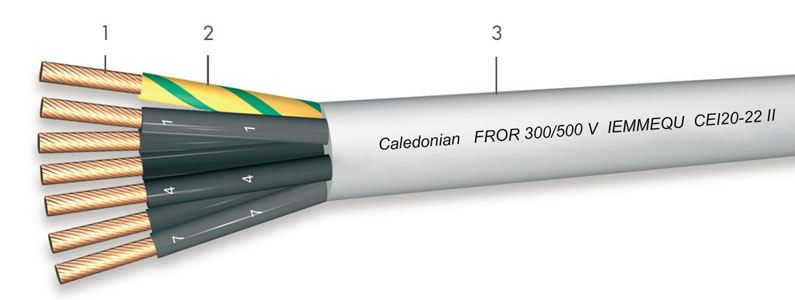

Construction:
- 1 - Flexible copper class 5 CEI EN 60228
- 2 - PVC TI2
- 3 - PVC TM2
Characteristics:
- Rated voltage: 300/500 V
- Operating Temperature: +5°C - +60° C on the conductor
- Max. temperature of short circuit: 160° C on the conductor (max. duration 5 seconds)
-
Min. bending radius: Mobile installation: 12 x outer diameter Fixed installation: 6 x outer diameter
Applications:
Section | Max diam. conductor | Insulation thickness | sheath thickness | Outer diameter | Max cond. resist. at 20°C | Cable weight |
mm2 | mm | mm | mm | mm | ohms/km | kg/km |
7 G 1 | 0.21 | 0.6 | 1.0 | 9.4 | 19.5 | 175 |
10 G 1 | 0.21 | 0.6 | 1.2 | 12.2 | 19.5 | 255 |
12 G 1 | 0.21 | 0.6 | 1.2 | 12.6 | 19.5 | 290 |
14 G 1 | 0.21 | 0.6 | 1.3 | 13.4 | 19.5 | 335 |
16 G 1 | 0.21 | 0.6 | 1.3 | 14.1 | 19.5 | 380 |
19 G 1 | 0.21 | 0.6 | 1.4 | 15.1 | 19.5 | 435 |
24 G 1 | 0.21 | 0.6 | 1.5 | 16.7 | 19.5 | 550 |
27 G 1 | 0.21 | 0.6 | 1.6 | 19.3 | 19.5 | 615 |
7 G 1.5 | 0.26 | 0.7 | 1.2 | 11.1 | 13.3 | 240 |
10 G 1.5 | 0.26 | 0.7 | 1.3 | 14.2 | 13.3 | 335 |
12 G 1.5 | 0.26 | 0.7 | 1.4 | 14.9 | 13.3 | 390 |
14 G 1.5 | 0.26 | 0.7 | 1.4 | 15.6 | 13.3 | 445 |
16 G 1.5 | 0.26 | 0.7 | 1.5 | 16.7 | 13.3 | 515 |
19 G 1.5 | 0.26 | 0.7 | 1.5 | 17.5 | 13.3 | 585 |
24 G 1.5 | 0.26 | 0.7 | 1.7 | 20.8 | 13.3 | 745 |
27 G 1.5 | 0.26 | 0.7 | 1.8 | 21.5 | 13.3 | 825 |
