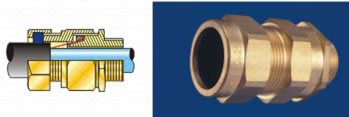

Single Compression CW Type Weatherproof & Waterproof (IP66) Cable Glands for Armoured & Braided Cables

Standards

EN 50262: 1999, BS6121 part1

Applications

Suitable for all types of unarmoured plastic or rubber sheathed cables for indoor as well as outdoor installations. If is used in applications where it is essential to provide an IP66 seal on the outer sheath of the cable.

Feature

The gland provides an environmental seal on the cable outer sheath. If also provide mechanical cable retention & electrical continuity via armour wire termination. The armour clamp provides an electrical bond between the cable armour and the gland.

Ingress Protection

IP66

Material

Brass BS 2874 CZ121 Pb3

Thread Option

METRIC; NPT; BSP; PG or as specified

Seal Option

Neoprene; silicone

Plating Option

Brass Finish, Nickel Finish, Chrome Finish or as specified.

Operating Temperature

Standard seals: -20 ℃ to +80 ℃(Neoprene Seals)
Extended seals: -60℃ to +200℃(Silicone Seals)

Accessories

Lock Nut, Sealing Washer, Earth Tag, Shroud, Serrated Washer, Stopping Plug, Reducer, Adaptor

Ordering Code

(Gland Type / Size & Entry Thread Size), e.g. CW 32/M32 – 15mm

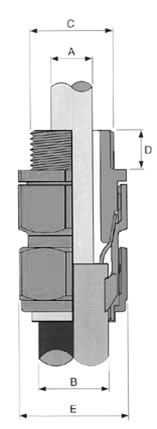

Technical Data

Part No. Entry
Threads Size "C" Entry Thread Length "D" Seal Ranges Armour Wire
Diameter Max. Across Corner Diameter "E"

Inner Cable Sheath
Diameter "A"
Max. Outer Cable Sheath
Diameter "B'

Metric NPT PG Standard Seal Thick Seal

Min. Max. Min. Max.

CW-16 M20 " 11 15 8.6 8.0 13.4 5.5 9.9 0.9 24.4

CW-20S M20 " 13.5 15 11.6 11.4 15.9 7.0 12.4 0.9/1.25 26.6

CW-20 M20 " 16 15 13.9 15.0 20.9 11.1 17.9 0.9/1.25 33.3

CW-25 M25 3/4" 21 15 19.9 20.3 27.4 15.0 23.9 1.25/1.60 40.5

CW-32 M32 1" 29 15 26.2 26.0 33.9 23.0 29.9 1.60/2.00 51.0

CW-40 M40 1-1/4" 36 15 32.1 31.0 40.4 26.6 35.9 1.60/2.00 61.0

CW-50S M50 1-1/2" 36 15 38.1 36.5 46.7 32.9 42.4 2.00/2.50 66.5

CW-50 M50 2" 42 15 44.0 43.0 53.1 30.3 49.9 2.00/2.50 77.7

CW-63S M63 2" 48 15 50.0 48.9 59.4 44.6 55.9 2.50 83.2

CW-63 M63 2-1/2" - 15 55.9 58.0 65.9 51.5 58.9 2.50 86.7

CW-75S M75 2-1/2" - 15 61.9 60.6 72.1 56.4 68.9 2.50 101.6

CW-75 M75 3" - 15 67.9 64.9 78.5 62.7 74.9 2.50/3.15 111.1

CW-90 M90 3-1/2" - - 79.3 76.0 90.4 64.2 79.3 3.15 128.6

Part No.	Entry Threads Size "C"			Entry Thread Length "D"	Seal Ranges					Armour Wire Diameter	Max. Across Corner Diameter "E"
	Entry Threads Size "C"				Inner Cable Sheath Diameter "A" Max.	Outer Cable Sheath Diameter "B'
	Metric	NPT	PG			Standard Seal		Thick Seal
	Metric	NPT	PG			Min.	Max.	Min.	Max.
CW-16	M20	"	11	15	8.6	8.0	13.4	5.5	9.9	0.9	24.4
CW-20S	M20	"	13.5	15	11.6	11.4	15.9	7.0	12.4	0.9/1.25	26.6
CW-20	M20	"	16	15	13.9	15.0	20.9	11.1	17.9	0.9/1.25	33.3
CW-25	M25	3/4"	21	15	19.9	20.3	27.4	15.0	23.9	1.25/1.60	40.5
CW-32	M32	1"	29	15	26.2	26.0	33.9	23.0	29.9	1.60/2.00	51.0
CW-40	M40	1-1/4"	36	15	32.1	31.0	40.4	26.6	35.9	1.60/2.00	61.0
CW-50S	M50	1-1/2"	36	15	38.1	36.5	46.7	32.9	42.4	2.00/2.50	66.5
CW-50	M50	2"	42	15	44.0	43.0	53.1	30.3	49.9	2.00/2.50	77.7
CW-63S	M63	2"	48	15	50.0	48.9	59.4	44.6	55.9	2.50	83.2
CW-63	M63	2-1/2"	-	15	55.9	58.0	65.9	51.5	58.9	2.50	86.7
CW-75S	M75	2-1/2"	-	15	61.9	60.6	72.1	56.4	68.9	2.50	101.6
CW-75	M75	3"	-	15	67.9	64.9	78.5	62.7	74.9	2.50/3.15	111.1
CW-90	M90	3-1/2"	-	-	79.3	76.0	90.4	64.2	79.3	3.15	128.6
