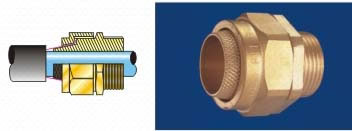

 Single Compression BW Type Cable Glands for Armoured & Braided Cables

Standards

BS 6121: 1989

Applications

Suitable for all types of plastic or rubber sheathed single wire armoured cables. If is used in indoor applications not requiring the weatherproof feature of an inner or outer seal.

Feature

The gland provides mechanical cable retention & electrical wire continuity via armour wire termination. It provides an integral clamp for armoured cables. This armour clamp provides an electrical bond between the cable armour and the gland.

Ingress Protection

IP30

Material

Brass BS 2874 CZ121 Pb3

Thread Option

ISO METRIC; NPT; BSP; PG or as specified

Plating Option

Brass Finish, Nickel Finish, Chrome Finish or as specified.

Operating Temperature

-80 ℃ to +300 ℃

Accessories

Lock Nut, Sealing Washer, Earth Tag, Shroud, Serrated Washer, Stopping Plug, Reducer, Adaptor

Ordering Code

(Gland Type / Size & Entry Thread Size), e.g. BW 32/M32 – 10mm

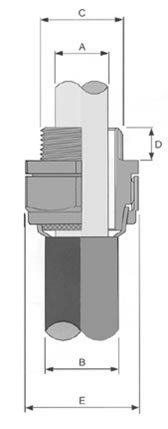

Technical Data

Part No.

Entry Threads Size Metric "C"

Entry Thread Length "D"

Inner Cable Sheath Diameter "A"
Max.

Outer Cable Sheath Diameter "B"
Max.

Armour Wire Diameter

Braid Wire Diameter

Main Across Corner Diameter "E"

BW-20S M20 10 11.6 16.1 0.9/1.25 0.05/0.8 24.4
BW-20 M20 10 13.9 21.1 0.9/1.25 0.05/0.8 30.0
BW-25 M25 10 19.9 27.4 1.25/1.60 0.05/0.8 36.0
BW-32 M32 10 26.2 34.4 1.60/2.00 0.05/0.8 44.5
BW-40 M40 15 32.1 42.4 1.60/2.00 0.05/1.2 56.3
BW-50S M50 15 38.1 50.1 2.00/2.50 0.05/1.2 63.4
BW-50 M50 15 44.0 55.7 2.00/2.50 0.05/1.2 72.1
BW-63S M63 15 50.0 62.4 2.50 0.05/1.2 83.7
BW-63 M63 15 55.9 68.2 2.50 0.05/1.2 88.7
BW-75S M75 15 61.9 76.8 2.50 0.05/1.2 99.8
BW-75 M75 15 67.9 82.9 2.50/3.15 0.05/1.2 105.3
