Cable Glands

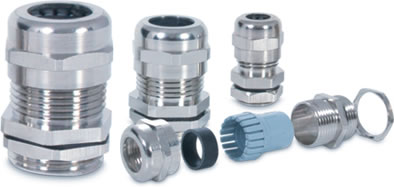

IP 68 Weatherproof & Waterproof Brass Cable Glands
  |
StandardBS6121: 1989, DIN-46320/46255 ApplicationSuitable for all type of unarmoured plastic or rubber sheathed cables in indoor as well as outdoor installations. FeatureWith Vibration Lock and Strain Relief Protection Class IP 68 ?5 Bar. Ingress ProtectionIP65 MaterialNickel Plated Brass InsertPolyamide - 6 SealsNeoprene O - RingPerbunan Plating OptionChrome Finish, Brass Finish, Nickel Finish or as specified Temperature Range-30? to +90? Ordering Code(Gland Type / Size & Entry Thread Size), e.g. PG 36 |
Technical Data
| Part No. | Clamping Range | Thread Length (in mm) |
| PG-7 | 2-6.50 | 6.00 |
| PG-9 | 3-8.00 | 6.00 |
| PG-11 | 4-10.00 | 6.00 |
| PG-13.5 | 5-12.00 | 8.00 |
| PG-16 | 8-14.00 | 8.00 |
| PG-21 | 11-18.00 | 8.00 |
| PG-29 | 16-25.00 | 9.00 |
| PG-36 | 20-30.00 | 9.00 |
| PG-42 | 28-38.00 | 12.00 |
| PG-48 | 34-44.00 | 12.00 |
| M12 | 2-6.50 | 6.00 |
| M16 | 3-8.00 | 6.00 |
| M20 | 5-12.00 | 8.00 |
| M25 | 11-18.00 | 8.00 |
| M32 | 12-21.00 | 8.00 |
| M40 | 18-27.00 | 9.00 |
| M50 | 27-33.00 | 9.00 |
| M63 | 34-48.00 | 12.00 |
