Loudspeaker Cable FFX200 05mRZ1-R/F 2G1.0

FFX200 05mRZ1-R 2G1.0 (CU/MGT+XLPE/LSZH 2×1.0mmsq 300/500V class 2)

FFX200 05mRZ1-F 2G1.0 (CU/MGT+XLPE/LSZH 2×1.0mmsq 300/500V class 5)

Airport ULV Cables

APPLICATIONS

The cables are multicore stranded flexible cables sheathed with thermoplastic LSZH compound. The cables have the ability to restrict the propagation of the flame in the event of a fire. This is especially important to slow down the spreading of the fire as the cables may pass from one area to another within a building. Applications can be found in control and power circuits, power stations, underground tunnels, lifts, escalators, and high-rise buildings.

STANDARDS

Basic design BS 7629-1
Halogen Free IEC 60754-1
No corrosive gas emission IEC 60754-2
Minimum Smoke Emission IEC 61034-1/2
Reduced Fire Propagation IEC 60332-3C / NF C 32070-2.2 (C1)
Flame Retardance IEC 60332-1 / NF C 32-070-2.1 (C2)
Fire Resistance IEC 60331 / NF C 32070-2.3(CR1)

VOLTAGE RATING

300/500V

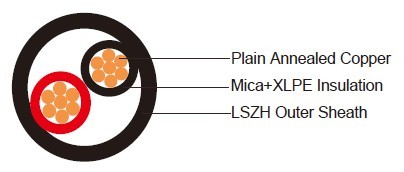

CONSTRUCTION

Conductor : Plain annealed copper wire, stranded according to IEC(EN) 60228 class 2 or class 5.

Insulation : Mica glass tape covered by extruded cross-linked XLPE compound.

Outer Sheath : Thermoplastic LSZH compound type LTS3 as per BS 7655-6.1.

ELECTRICAL PROPERTIES

Dielectric test: 2000 V r.m.s. x 5’ (core/core)
Insulation resistance 1000 MΩ x km (at 20°C)
Short circuit temperature 250°C

PHYSICAL AND THERMAL PROPERTIES

Temperature range during operation (fixed state) : -30°C – +90°C

Temperature range during installation (mobile state) : -20°C – +50°C

Minimum bending radius : 8 × Overall Diameter

CONSTRUCTION PARAMETERS

FFX200 05mRZ1-R 2G1.0

FFX200 05mRZ1-F 2G1.0

No.of core Nominal Cross Sectional Area Number & Nominal Diameter of Strands Nominal Insulation Thickness Nominal Sheath Thickness Nominal Overall Diameter Approx. Weight
  mm² No/mm mm mm mm kg/km
2 1.0 7/0.44 0.5 0.5 5.3 47
2 1.0 32/0.2 0.5 0.5 5.3 47
