Secondary Circuit Cables H07RN-F

H07RN-F Airport Cables

Applications

These cables are used for connection between transformers and Airfield Lighting Equipment.

Standards

NF C 32-102-4
HD 22-4

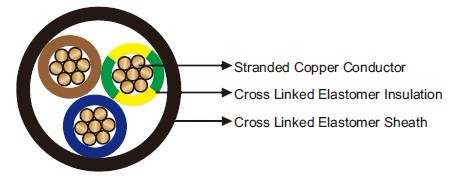

Construction

Conductor: Stranded bare copper.
Insulation: Special cross linked elastomer.
Sheath: Cross linked oil resistant elastomer.

Technical Data

Rated Voltage Uo/U (Um) 450/750V
Maximum Conductor Temperature 85℃
Short Circuit Temperature 200℃
Operating Temperatures -20℃~+85℃
Minimum Bending Radius static: 4×OD; dynamic: 8×OD
Impacted Resistant Yes
Weather Resistant Yes
Oil Resistant Yes

Dimensions and Weight

Construction Nominal Insulation
Thickness
Nominal Sheath
Thickness
Minimum Overall
Diameter
Maximum Overall
Diameter
Nominal Weight
No. ×mm² mm mm mm mm kg/km
1×2.5 0.9 1.4 6.3 7.9 66
1×4 1.0 1.5 7.2 9.0 94
1×6 1.0 1.6 7.9 9.8 109
2×2.5 0.9 1.7 10.2 13.1 161
2×4 1.0 1.8 11.8 15.0 238
2×6 1.0 2.0 13.1 17.0 279
3×2.5 0.9 1.8 10.9 14.0 195
3×4 1.0 1.5 12.7 16.2 290
3×6 1.0 2.0 14.1 18.0 346
