Applications
These cables are used as airfield lighting cable for secondary electrical circuits.
Standards
IEC 60502-2

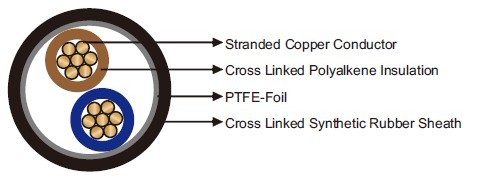

Construction
Conductor: Stranded tinned copper
conductor.
Insulation: Cross linked polyalkene.
Separator: PTFE-Foil.
Outer Sheath: Cross linked synthetic rubber compound
Technical Data
| Rated Voltage Uo/U (Um) | 500V |
| Maximum Conductor Temperature | 90℃ |
| Short Circuit Temperature | 250℃ |
| Operating Temperatures | -20℃~+90℃ |
| Minimum Bending Radius | 5×OD |
| Halogen Free | Yes |
| No Toxicity & Corrosivity | Yes |
| Low Smoke | Yes |
| Flame Retardant | Yes |
Dimensions and Weight
| Construction | Nominal Sheath Thickness |
Nominal Sheath Thickness |
Maximum Overall Diameter |
Nominal Weight |
|---|---|---|---|---|
| No. ×mm² | mm | mm | mm | kg/km |
| 2×4 | 0.5 | 1.1 | 9.8 | 167 |
