Applications
These cables are used as airport pavement cable for secondary electrical circuits.
Standards
FAA 150/5345-30

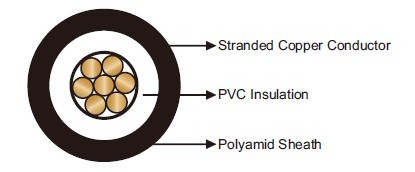

Construction
Conductor: Stranded copper conductor.
Insulation: PVC.
Sheath: Polyamid (nylon).
Technical Data
| Rated Voltage Uo/U (Um) | 600V |
| Operating Temperatures | -45℃~+85℃ |
| Minimum Bending Radius | 5×OD |
| Abrasion Resistant | Yes |
| UV Resistant | Yes |
| Oil Resistant | Yes |
Dimensions and Weight
| Construction | Nominal Insulation Thickness |
Nominal Sheath Thickness |
Nominal Overall Diameter |
Nominal Weight |
|---|---|---|---|---|
| No. ×mm²/AWG | mm | mm | mm | kg/km |
| 1×4 mm² | 0.6 | 0.15 | 4.1 | 48 |
| 1×12 | 0.6 | 0.15 | 3.8 | 41 |
| 1×10 | 0.8 | 0.15 | 4.9 | 66 |
