Secondary Circuit Cable 450/750V to ADP Specification

Secondary Circuit Cable 450/750V to ADP Specification

Applications

These cables are used for connection between transformers and Airfield Lighting Equipment.

Standards

ADP (Aéroport de Paris) specification

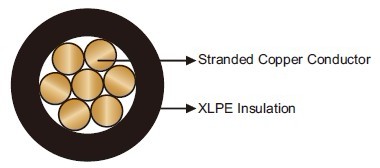

Construction

Conductor: Stranded bare copper.
Insulation: XLPE.

Technical Data

Rated Voltage Uo/U (Um) 450/750V
Maximum Conductor Temperature 90℃
Short Circuit Temperature 250℃
Operating Temperatures -20℃~+70℃
Minimum Bending Radius 5×OD
Impacted Resistant Yes
Weather Resistant Yes

Dimensions and Weight

Construction Nominal Insulation
Thickness
Minimum Overall
Diameter
Maximum Overall
Diameter
Nominal Weight
No. ×mm² mm mm mm kg/km
1×4 0.7 3.5 4.5 42
