400Hz Airport Cables 7-core With Reinforcement

400Hz Airport Cables 7-core With Reinforcement

Applications

These cables are designed for 400 Hz systems for power supply of aircraft, computer systems and radar stations, suitable for laying in earth, in water, outdoors, indoors and in cable ducts.

Standards

VDE 0295

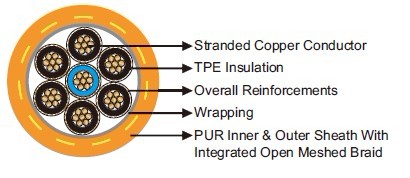

Construction

Conductor : Stranded bare copper conductor, Class 5 to VDE 0295/IEC 60228.

Insulation : TPE.

Cable Assembling : 6 power cores laid-up over a centre core.

Wrapping : Common core covering of wrapping and/or extruded filling compound.

Outer Sheath : Bonded inner and outer sheath of polyurethane with integrated open meshed braid.

Technical Data

Rated Voltage Uo/U (Um) 600/1000V
Operating Temperatures -35℃~+80℃
Minimum Bending Radius static: 4×OD; dynamic: 6×OD
Flame Retardant Yes
Abrasion Resistant Yes
Weather Resistant Yes
UV Resistant Yes
Oil Resistant Yes

Dimensions and Weight

Construction Nominal Diameter of Single Core Nominal Overall Diameter Nominal Weight
No. ×mm² mm mm kg/km
7×35 10.9 38.0 3800
