400Hz Airport Cables 7-core With Copper Tape Shield

400Hz Airport Cables 7-core With Copper Tape Shield

Applications

These cables are designed for 400 Hz systems for power supply of aircraft, computer systems and radar stations, suitable for laying in earth, in water, outdoors, indoors and in cable ducts.

Standards

VDE 0295

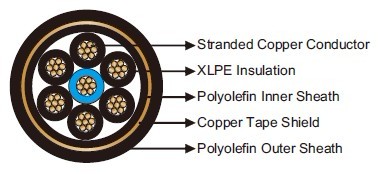

Construction

Conductor: Stranded bare copper conductor, Class 5 to VDE 0295/IEC 60228.

Insulation : XLPE.

Inner Sheath : Polyolefin.

Shield : Copper tape shield.

Outer Sheath : Polyolefin.

Technical Data

Rated Voltage Uo/U (Um) 600/1000V
Operating Temperatures -40℃~+90℃
Minimum Bending Radius static: 9×OD; dynamic: 12×OD
Halogen Free Yes
No Corrosive & Toxic Gases Yes
Low Smoke Yes
Flame Retardant Yes

Dimensions and Weight

Construction Nominal Diameter of Single Core Nominal Overall Diameter Nominal Weight
No. ×mm² mm mm kg/km
7×35 9.7 41.8 3450
7×50 11.8 47.8 4660
7×70 11.9 54.1 5930
