These cables are designed for 400 Hz systems for power supply of aircraft, computer systems and radar stations, suitable for laying in earth, in water, outdoors, indoors and in cable ducts.
VDE 0295

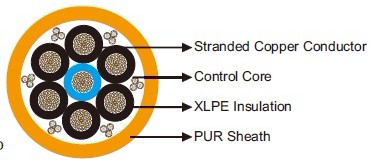

Conductor : Stranded copper conductor, Class 6 to VDE 0295/IEC 60228.
Insulation : XLPE.
Control Core : 1mm² stranded copper conductor with PVC insulation.
Outer Sheath : PUR.
Rated Voltage Uo/U (Um) | 600/1000V |
Operating Temperatures | -40℃~+90℃ |
Minimum Bending Radius | static: 4×OD; dynamic: 6×OD |
Flame Retardant | Yes |
Abrasion Resistant | Yes |
UV Resistant | Yes |
Oil Resistant | Yes |
Construction | Nominal Diameter of Power Core | Nominal Diameter of Control Core | Nominal Overall Diameter | Nominal Weight |
---|---|---|---|---|
No. ×mm² | mm | mm | mm | kg/km |
7×16+6×(2×1) | 7.2 | 2.1 | 30.8 | 1400 |
7×35+6×(3×1) | 10.5 | 2.1 | 36.0 | 3000 |
7×50+6×(4×1) | 11.8 | 2.1 | 43.0 | 4300 |
