400Hz Airport Cables 7-core With Aluminium Wire Armour

400Hz Airport Cables 7-core With Aluminium Wire Armour

Applications

These cables are designed for 400 Hz systems for power supply of aircraft, computer systems and radar stations, suitable for laying in earth, in water, outdoors, indoors and in cable ducts.

Standards

BS 6724

BS 5467

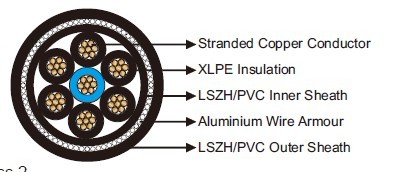

Construction

Conductor: Stranded bare copper conductor, Class 2.

Insulation: XLPE.

Inner Sheath: LSZH. PVC can be offered upon request.

Armour: Aluminium wire armour.

Outer Sheath: LSZH. PVC can be offered upon request.

Technical Data

Rated Voltage Uo/U (Um) 600/1000V
Operating Temperatures -40℃~+90℃
Minimum Bending Radius static: 9×OD; dynamic: 12×OD
Halogen Free Yes
No Corrosive & Toxic Gases Yes
Low Smoke Yes

Dimensions and Weight

Construction Nominal Diameter of Single Core Nominal Diameter Under Armour Nominal Diameter Over Armour Nominal Overall Diameter Nominal Weight
No. ×mm² mm mm mm mm kg/km
7×35 8.6 30.0 32.4 36.6 3355
