These cables are designed for 400 Hz systems for power supply of aircraft, computer systems and radar stations, suitable for laying in earth, in water, outdoors, indoors and in cable ducts.
VDE 0295

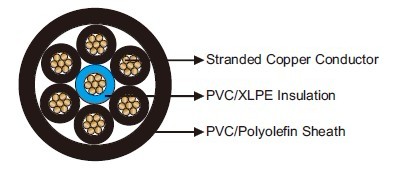

Conductor : Stranded bare copper conductor, Class 2 or 5 to VDE 0295/IEC 60228.
Insulation : PVC/XLPE.
Outer Sheath : PVC. Polyolefin can be offered upon request.
| Rated Voltage Uo/U (Um) | 600/1000V |
| Operating Temperatures | -20℃~+70℃ |
| Minimum Bending Radius | static: 6×OD; dynamic: 12×OD |
| Impacted Resistant | Yes |
| Weather Resistant | Yes |
| Construction | Nominal Diameter of Single Core | Nominal Overall Diameter | Nominal Weight |
|---|---|---|---|
| No. ×mm² | mm | mm | kg/km |
| 7×25 | 9.6 | 35.0 | 2800 |
| 7×35 | 10.6 | 39.0 | 3500 |
| 7×50 | 11.8 | 42.9 | 4000 |
| 7×70 | 13.6 | 49.2 | 5440 |
