Thermocouple Cables |  |
|
|
|||
 |
|
|

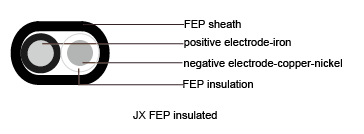

Flat Single Pair FEP Insulated
Application
These cables are used with thermocouples for temperature measurements.
Specification
Conductor: Solid. Material is according to thermocouple type.
Insulation: FEP
Outer sheath: FEP
Construction: Flat
Color code: According to IEC 60584-3
K Type
AWG(mm) |
Insulation Material |
Sheath Material |
Max. Temp. (°C) |
Nominal O.D. (mm) |
Weight (kg/km) |
30(0.25) |
FEP |
FEP |
200 |
1.2 x 1.8 |
4.5 |
28(0.32) |
FEP |
FEP |
200 |
1.2 x 2.0 |
5.5 |
26(0.41) |
FEP |
FEP |
200 |
1.3 x 2.1 |
6.5 |
24 (0.51) |
FEP |
FEP |
200 |
1.4 x 2.4 |
10.0 |
20 (0.81) |
FEP |
FEP |
200 |
1.7 x 3.0 |
16.7 |
E Type
AWG(mm) |
Insulation Material |
Sheath Material |
Max. Temp. (°C) |
Nominal O.D. (mm) |
Weight (kg/km) |
30(0.25) |
FEP |
FEP |
200 |
1.2 x 1.8 |
4.5 |
28(0.32) |
FEP |
FEP |
200 |
1.2 x 2.0 |
5.5 |
26(0.41) |
FEP |
FEP |
200 |
1.3 x 2.1 |
6.5 |
24 (0.51) |
FEP |
FEP |
200 |
1.4 x 2.4 |
10.0 |
20 (0.81) |
FEP |
FEP |
200 |
1.7 x 3.0 |
16.7 |
J Type
AWG(mm) |
Insulation Material |
Sheath Material |
Max. Temp. (°C) |
Nominal O.D. (mm) |
Weight (kg/km) |
30(0.25) |
FEP |
FEP |
200 |
1.2 x 1.8 |
4.5 |
28(0.32) |
FEP |
FEP |
200 |
1.2 x 2.0 |
5.5 |
26(0.41) |
FEP |
FEP |
200 |
1.3 x 2.1 |
6.5 |
24 (0.51) |
FEP |
FEP |
200 |
1.4 x 2.4 |
10.0 |
20 (0.81) |
FEP |
FEP |
200 |
1.7 x 3.0 |
16.7 |
