Telephone Cables

 XDSL Connecting Cables

Application

The cables are designed for XDSL transmission system. The cables are characterized by guaranteed data speeds up to 40MHz.

Standards

• ER.f5.113

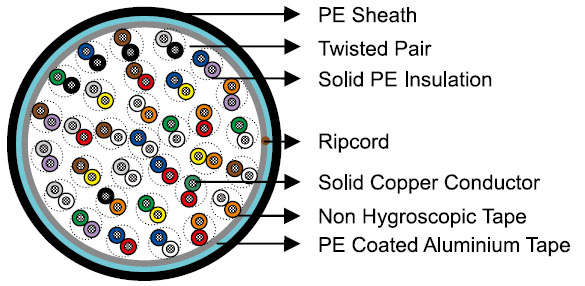

Construction

Conductors
Solid annealed bare copper sized 0.5mm as per ASTM B-3/IEC 60228 Class1

Insulation
Solid polyethylene as per ASTM D 1248/IEC 60708

Twisted Pairs
Insulated conductors are twisted into pairs with varying lays to minimize crosstalk

Cable Core Assembly
The pairs are cabled together in layers of 12, 13 & 25 pair unit to form the cable core. Units are identified by colour coded binders.

Core Wrapping
One or more non-hygroscopic polyester tapes are helically or longitudinally laid with an overlap

Screen
An aluminium polyster foil is applied longitudinally with an overlap

Sheath
Black low density polyethylene as per BS 6234/IEC 60708

Ripcord
Nylon ripcord may be placed parallel to the cores to facilitate sheath removal

Electrical Properties

Conductor Diameter

mm

0.5

Maximum Conductor Resistance @20°C

Ω/km

91

Minimum Insulation Resistance @500V DC

MΩ.km

20000

Maximum Resistance Unbalance

%

2

Average Mutual Capacitance

nF/km

52

Maximum Capacitance Unbalance @1KHz pair-to-pair

pF/500m

45

Maximum Capacitance Unbalance @1KHz pair-to-ground

pF/500m

400

Impedance @0.3 – 1MHz

100+/- 20

Impedance @1 – 40MHz

100+/- 15

Maximum Average Attenuation @0.1MHz

dB/km

0.81

Maximum Average Attenuation @0.3MHz

dB/km

1.15

Maximum Average Attenuation @0.6MHz

dB/km

1.65

Maximum Average Attenuation @1MHz

dB/km

2.1

Maximum Average Attenuation @4MHz

dB/km

4.3

Maximum Average Attenuation @10MHz

dB/km

6.6

Maximum Average Attenuation @16MHz

dB/km

8.2

Maximum Average Attenuation @20MHz

dB/km

9.2

Maximum Average Attenuation @31.25MHz

dB/km

11.8

Maximum Average Attenuation @40MHz

dB/km

13.9

Minimum Return Loss @1-20MHz

dB/100m

23

Minimum Return Loss @20-40MHz

dB/km

23-10log (f/20)

Minimum ELFEXT pair-to-pair @0.16MHz

dB

69

Minimum ELFEXT pair-to-pair @1MHz

dB

55

Minimum ELFEXT pair-to-pair @20MHz

dB

29

Minimum ELFEXT pair-to-pair @40MHz

dB

23

Minimum NEXT pair-to-pair @0.16MHz

dB

68

Minimum NEXT pair-to-pair @1MHz

dB

59

Minimum NEXT pair-to-pair @20MHz

dB

39

Minimum NEXT pair-to-pair @40MHz

dB

35

Dielectric Strength

dB



Conductor to Conductor 3secs

V DC

3000

Conductor to Screen 3secs

V DC

5000

Mechanical and Thermal Properties

Temperature range during operation (fixed state): -30°C – +70°C
Temperature range during installation (mobile state): -20°C – +50°C
Minimum bending radius: 10 x Overall Diameter

Colour Code

Standard colour code is per ANSI/ICEA S-80-576 given in Colour Code Chart.

Dimensions And Weight

Cable Code

Number
of
Pairs/Quads

Nominal Insulation
Thickness mm

Nominal Sheath
Thickness mm

Nominal Overall
Diameter
mm

Nominal Weight kg/km

TP113-2Y(St)Y-26P05-XDSL

26

0.2

0.9

18.5

265

TP113-2Y(St)Y-51P05-XDSL 51 0.2 1.0 24.2 460
TP113-2Y(St)Y-101P05-XDSL 101 0.2 1.1 31.5 790
TP113-2Y(St)Y-202P05-XDSL 202 0.2 1.2 41.5 1415
