Application

The cables are designed for medium frequency data or telephone systems, suitable for indoor or outdoor insulations.

Standards

• TIA/EIA-568B
• IEC 61156-4
• UL-444
• ANSI/ICEA S-80-576

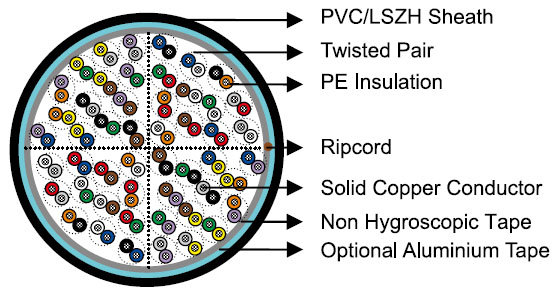

Construction

Conductors
Solid annealed bare copper sized 0.5mm (24 AWG) as per ASTM-B3/class 1 of IEC 60228

Insulation
Solid polyethylene as per ASTM D 1248/IEC 60708

Twisted Pairs
Insulated conductors are twisted into pairs with varying lay length to minimize crosstalk

Cable Core Assembly
The 50-pair cable is composed of 4 units having 12 or 13 pairs each. All other cables are composed of 25-pair units. Units are identified by colour coded binders

Core Wrapping
Non-hygroscopic dielectric tape fully enclosing the core with an overlap

Screen (optional)
An optional Aluminium/Polyester tape placed in contact with solid copper drain wire may be provided as an option

Sheath
PVC or LSZH

Ripcord
Nylon ripcord may be placed parallel to the cores to facilitate sheath removal

Electrical Properties

Nominal Conductor Diameter	mm	0.5
Maximum DC Resistance	Ω/100m	9.38
Maximum Resistance Unbalance	%	5
Maximum Capacitance Unbalance pair-to-ground @1KHz	pF/100m	330
Minimum Worst Pair Structural Return Loss (SRL):
Up to 10 MHz	dB	12
Between 10 and 16 MHz	dB	10
Impedance @1-16 MHz	Ω	85 - 115
Maximum Attenuation at 20°C
@64KHz	dB/100m	0.9
@256KHz	dB/100m	1.3
@512KHz	dB/100m	1.8
@772KHz	dB/100m	2.2
@1MHz	dB/100m	2.6
@4MHz	dB/100m	5.6
@8MHz	dB/100m	8.5
@10MHz	dB/100m	9.7
@16MHz	dB/100m	13.1
Minimum Worst pair-to-pair NEXT Loss
@772KHz	dB	43
@1MHz	dB	41
@4MHz	dB	32
@8MHz	dB	28
@10MHz	dB	26
@16MHz	dB	23
Minimum Relative Velocity of Propagation @10MHz	dB	0.585

Mechanical and Thermal Properties

Temperature range during operation (fixed state): -30°C – +70°C
Temperature range during installation (mobile state): -20°C – +50°C
Minimum bending radius: 10 x Overall Diameter (unarmoured cable);15 x Overall Diameter (armoured cables)

Colour Code

Standard Colour Code is per TIA/EIA 568B or ICEA S-80-576 as given in Colour Code Chart.

Dimensions And Weight

PE INSULATED CATEGORY 3 UTP CABLES

Cable Code	Number of Pairs	Nominal Sheath Thickness mm	Nominal Overall Diameter mm	Nominal Weight kg/km
0.5mm Conductor, 0.9mm Insulated Wire, UTP, PVC Sheathed, Indoor
TP568-2YY-10P05-UTPC3	10	0.9	9.5	77
TP568-2YY-25P05-UTPC3	25	0.9	12.5	155
TP568-2YY-50P05-UTPC3	50	1.0	17.0	260
TP568-2YY-100P05-UTPC3	100	1.1	21.5	530
TP568-2YY-200P05-UTPC3	200	1.2	29.5	1100
TP568-2YY-300P05-UTPC3	300	1.3	33.5	1550
0.5mm Conductor, 0.9mm Insulated Wire, UTP, LSZH Sheathed, Indoor & Outdoor
TP568-2YH-10P05-UTPC3	10	0.9	10.0	80
TP568-2YH-25P05-UTPC3	25	0.9	14.0	150
TP568-2YH-50P05-UTPC3	50	1.1	16.5	280
TP568-2YH-100P05-UTPC3	100	1.4	21.5	530
TP568-2YH-200P05-UTPC3	200	1.7	30.0	900
TP568-2YH-300P05-UTPC3	300	1.7	36.0	1300
0.5mm Conductor, 0.9mm Insulated Wire, UTP, PE Sheathed, Outdoor
TP568-2Y2Y-10P05-UTPC3	10	0.9	9.5	80
TP568-2Y2Y-25P05-UTPC3	25	0.9	13.0	150
TP568-2Y2Y-50P05-UTPC3	50	1.0	16.0	280
TP568-2Y2Y-100P05-UTPC3	100	1.1	21.5	550
TP568-2Y2Y-200P05-UTPC3	200	1.2	28.5	1050
TP568-2Y2Y-300P05-UTPC3	300	1.3	34.5	1550

PE INSULATED CATEGORY 3 FTP CABLES

Cable Code	Number of Pairs	Nominal Sheath Thickness mm	Nominal Overall Diameter mm	Nominal Weight kg/km
0.5mm Conductor, 0.9mm Insulated Wire, FTP, PVC Sheathed, Indoor
TP568-2Y(St)Y-10P05-FTPC3	10	0.9	10.0	85
TP568-2Y(St)Y-25P05-FTPC3	25	0.9	13.5	170
TP568-2Y(St)Y-50P05-FTPC3	50	1.0	17.0	300
TP568-2Y(St)Y-100P05-FTPC3	100	1.1	22.0	570
TP568-2Y(St)Y-200P05-FTPC3	200	1.2	30.0	1120
TP568-2Y(St)Y-300P05-FTPC3	300	1.3	36.6	1630
0.5mm Conductor, 0.9mm Insulated Wire, FTP, LSZH Sheathed, Indoor& Outdoor
TP568-2Y(St)H-25P05-FTPC3	25	0.9	14.0	170
TP568-2Y(St)H-50P05-FTPC3	50	1.0	17.5	300
TP568-2Y(St)H-100P05-FTPC3	100	1.2	23.0	580
TP568-2Y(St)H-200P05-FTPC3	200	1.6	32.0	1120
TP568-2Y(St)H-300P05-FTPC3	300	1.6	35.0	1320
0.5mm Conductor, 0.9mm Insulated Wire, FTP, PE Sheathed, Outdoor
TP568-2Y(St)2Y-10P05-FTPC3	10	0.9	11.0	85
TP568-2Y(St)2Y-25P05-FTPC3	25	0.9	13.5	170
TP568-2Y(St)2Y-50P05-FTPC3	50	1.0	16.5	300
TP568-2Y(St)2Y-100P05-FTPC3	100	1.1	22.6	570
TP568-2Y(St)2Y-200P05-FTPC3	200	1.2	31.0	1070
TP568-2Y(St)2Y-300P05-FTPC3	300	1.3	35.5	1570
