Telephone Cables

 Cellular PE Insulated & PE Sheathed Jelly Filled Cables to CW1128 & CW 1128/1179

Application

The cables are designed for use in access or trunk networks, from telephone exchange to subscriber area. The cables are suitable for installation in ducts, direct burial in the ground and also for aerial installation with integral suspension strand. Jelly filled construction is for subscriber’s cables installed underground or along the edge of pavement. An armoured option is offered for direct burial installations. A figure-8 self support option is offered for aerial installation.

Standards

• CW 1128 (Unscreened jelly filled cables)
• CW 1128/1179 (Screened jelly filled cables)
• CW 1128/1252 (Self supporting jelly filled cables)
• CW 1128/1198 (Steel wire armoured jelly filled cables)
• CW 1128/1179/1198 (Steel wire armoured screened jelly filled cables)

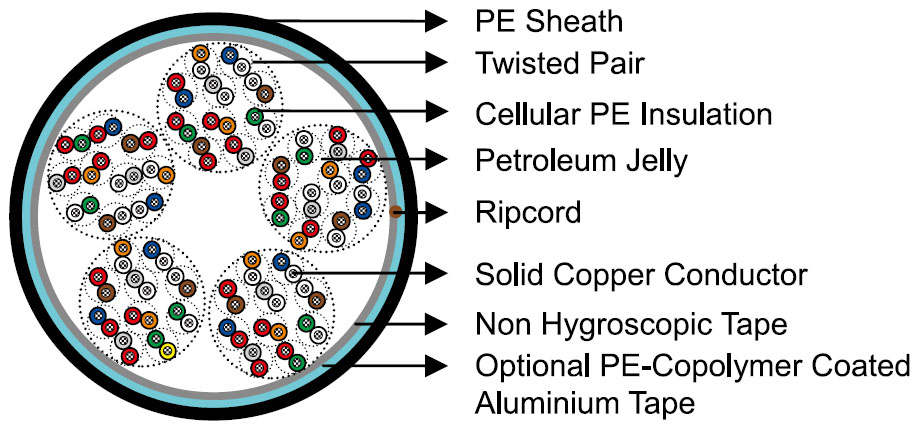

Construction

Conductors
Solid annealed bare copper 0.4/0.5/0.6/0.63/0.9 mm as per class 1 of BS 6360/IEC 60228

Insulation
Cellular polyethylene as per BS 6234/BS EN 50290-2-23/IEC 60708

Twisted Pairs
Insulated conductors are twisted into pairs with varying lay length to minimize crosstalk

Cabling Element
Twisted Pairs

Cable Core Assembly
Cables are composed of 10-pair units. Any extra pairs form a separate unit. Units are identified by colour coded binders. Standard construction is per CW 1128 given in Cable Make Up Chart below

Core Wrapping
One or more non-hygroscopic polyester tapes are helically or longitudinally laid with an overlap. These tapes furnish thermal, mechanical as well as high dielectric protection between shielding and individual conductors

Moisture Barrier(optional)
Laminated sheath made of an aluminium tape (0.15mm) coated with PE-copolymer on one or both sides is applied longitudinally with overlap over the cable core to provide 100% electrical shielding coverage and ensures a barrier against water vapor

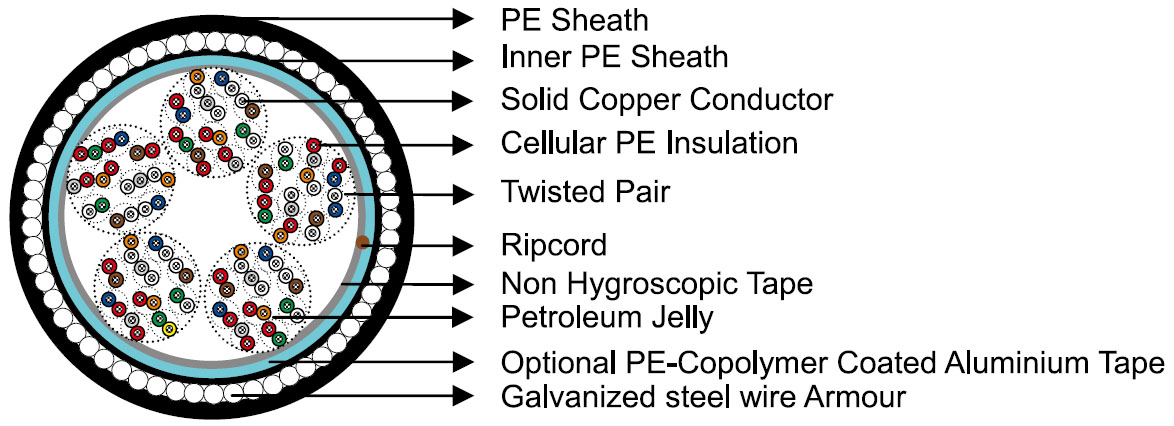

Inner Bedding (for armoured cables)
Black polyethylene compound

Armour (for armoured cables)
Galvanized steel wire armour is applied over an inner polyethylene sheath

Filling
The cable core interstices are filled with petroleum jelly to avoid longitudinal water penetration within the cable.
The water resistant filling compound is applied to the air space between non-hygroscopic tape and shield, shield and sheath within the cable core

Sheath
Black low density polyethylene as per BS 6234/IEC 60708/ASTM D 1248 which is compounded to withstand exposure to sunlight, temperature variations, ground chemicals and other environmental contaminants

Ripcord(optional)
Ripcord may be provided for slitting the sheath longitudinally to facilitate its removal

Continuity Wire (optional)
One tinned copper drain wire may be longitudinally laid to ensure electrical continuity of the screen

Electrical Properties

Nominal Conductor Diameter

mm

0.4

0.5

0.6

0.63

0.9

Conductor Gauge Size

AWG

26

24

-

22

19

Conductor Size

mm2

0.126

0.196

0.283

0.312

0.636

Maximum Average Conductor Resistance @20°C

Ω/km

143

91

63

58

28

Minimum Insulation Resistance @500V DC

MΩ.km

1500

1500

1500

1500

1500

Maximum Average Mutual Capacitance @800Hz*

nF/km

56

56

42

56

59

Maximum Individual Mutual Capacitance @800Hz
(for 99% cases)

nF/km

64

64

46

64

65

Maximum Individual Capacitance Unbalance @800Hz
pair-to-pair
pF/500m

275

275

275

275

275

Maximum Conductor Loop Resistance @20°C

Ω/km

300

192

130

114

60

Impedance @1KHz

994

796

665

660

445

Impedance @100KHz

147

134

127

125

122

Impedance @512KHz

120

118

117.5

117

116

Impedance @1MHz

117

115

114.5

114

113

Maximum Average Attenuation @0.8KHz

dB/km

1.64

1.30

1.1

1.04

0.74

Maximum Average Attenuation @1KHz

dB/km

1.68

1.35

1.14

1.08

0.76

Maximum Average Attenuation @3KHz

dB/km

3.18

2.52

2.3

2.01

1.42

Maximum Average Attenuation @150KHz

dB/km

11.4

8.3

7.2

6.2

4.4

Maximum Average Attenuation @772KHz

dB/km

24.3

19.4

17.4

15.4

10.8

Maximum Average Attenuation @1000KHz

dB/km

27.1

21.4

18.5

17.5

12.8

Dielectric Strength Conductor to Conductor (3secs)

V DC

500

500

500

500

500

Nominal Insulation Thickness

mm

0.175

0.20

0.375

0.26

0.30

Nominal Insulated Conductor Diameter

mm

0.75

0.90

1.35

1.15

1.50































Remarks: For screened cables of 20 pairs or less the maximum average mutual capacitance values shall not apply and the
maximum for 99% shall be increased by 3nF.

Mechanical and Thermal Properties

Temperature range during operation (fixed state): -30°C – +70°C
Temperature range during installation (mobile state): -20°C – +50°C
Minimum bending radius: 10 x Overall Diameter (unarmoured cables);15 x Overall Diameter (armoured cables)

Colour Code
Standard colour code is per CW 1128 given in Colour Code Chart

Cabling Element No.

a-wire

b-wire

1

WHITE

BLUE

2
3
4
5
6

WHITE

ORANGE

WHITE

GREEN

WHITE

BROWN

WHITE

GREY

RED

BLUE

7

RED

ORANGE

8

RED

GREEN

9

RED

BROWN

10

RED

GREY

Unit Number Binder Colour
1

BLUE

2

ORANGE

3

GREEN

4

BROWN

5

GREY

6 WHITE
7 RED
8 BLACK
9 YELLOW
10 VIOLET

Cable Size

No. and Pair Size of Units in Centre and 1st Layer

Centre

1st Layer

2 pairs

1 X 2



5 pairs

1 X 5



10 pairs  1 X 10



20 pairs   4 X 5



  2 X 10



50 pairs 5 X 10



  1 X 10

4 X 10

100 pairs 2 X 10

8 X 10

  3 X 10

7 X 10

  4 X 5

8 X 10





Note:
The two pair cable is manufactured as a
quad, coloured Orange, Green, White, and
Black in order of rotation





1 2
