Telephone Cables

 ADSL Connecting Cables

Application

The cables are designed for ADSL transmission system. The cables are characterized by guaranteed data speeds up to 10MHz. The cables have a small cable diameter with an easily removable sheath.

Standards

• IEC 61156-1 Part 1

• ANSI/ICEA S-80-576

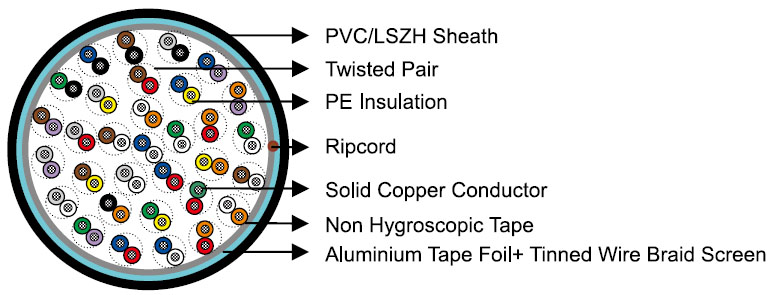

Construction

Conductors
Solid annealed bare copper sized 0.4mm as per ASTM B-3/IEC 60228 Class 1

Insulation
Solid polyethylene as per ASTM D 1248/IEC 60708

Twisted Pairs
Insulated conductors are twisted into pairs with varying lays to minimize crosstalk

Cable Core Assembly
The pairs are cabled in concentric layer to form the cable core

Core Wrapping
One or more non-hygroscopic polyester tapes are helically or longitudinally laid with an overlap

Screen
An aluminium polyester foil is applied in close contact with tinned copper braid screen

Sheath
PVC or LSZH compound

Ripcord
Ripcord may be placed to facilitate sheath removal

Electrical Properties

Number of Pairs



24

32

64

72

96

128

Maximum Conductor Resistance @20°C

Ω/km

143

143

143

143

143

143

Minimum Insulation Resistance @500V DC

MΩ.km

1000

1000

1000

1000

1000

1000

Maximum Mutual Capacitance @800Hz

nF/km

80

80

80

80

80

80

Maximum Capacitance Unbalance pair-to-pair

pF/500m

250

250

250

250

250

250

Impedance

120

120

105

105

100

105

Maximum Average Attenuation @1MHz

dB/km

32

32

32

32

32

32

Maximum Average Attenuation @10MHz

dB/km

110

110

110

110

110

110

Minimum NEXT pair-to-pair @1MHz

dB

55

55

55

55

55

55

Minimum NEXT pair-to-pair @10MHz

dB

40

40

40

40

40

40

Dielectric Strength 1min

V DC

1500

1500

1500

1500

1500

1500

Mechanical and Thermal Properties

Temperature range during operation (fixed state): -30°C – +70°C
Temperature range during installation (mobile state): -20°C – +50°C
Minimum bending radius: 10 x Overall Diameter

Colour Code

Standard colour code is per ANSI/ICEA S-80-576 given in Colour Code Chart

Dimensions And Weight

Cable Code

Number of Pairs

Nominal Insulation
Thickness mm

Nominal Sheath
Thickness mm

Nominal Overall
Diameter
mm

Nominal Weight kg/km

TP576-2Y(St)Y-24P04-ADSL

24 / 3X4Q

0.2

0.9

11.0

139

TP576-2Y(St)Y-32P04-ADSL 32 / 4X4Q 0.2 0.9 12.0

180

TP576-2Y(St)Y-64P04-ADSL 64 0.15 1.0 15.0

300

TP576-2Y(St)Y-72P04-ADSL 72 0.15 1.0 16.0

330

TP576-2Y(St)Y-96P04-ADSL 96 0.15 1.1 19.5

450

TP576-2Y(St)Y-128P04-ADSL 128 0.15 1.2 20.0

528
