450℉/232℃ EPDM/LEAD Flat Electrical Submersible Pump Cable


Applications

These cables are designed for transmitting power to the submersible motor in the oil industry, suitable for installed down well in the oil industry.

Standards

  • IEEE Std. 1018
  • API RP 11S5
  • API RP 11S6

Construction

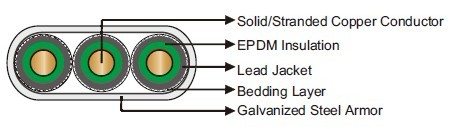

400?/204? EPDM/LEAD Flat Electrical Submersible Pump Cable

  • Conductor:Solid bare copper conductor.
  • Insulation: EPDM insulation with a poly adhesive layer to the conductor.
  • Jacket: Lead jacket.
  • Tape: Longitudinally applied, rubber backed, fabric bedding tap.
  • Armor: Galvanized steel tape.

Dimensions and Weight:

5KV

Cable Type

Conductor
Size

Conductor
O.D.

Insulation
Thickness

Overall O.D.

Weight



AWG

mm²

inches

mm

Inches

mm

Inches

mm

lbs/kft

kg/km

QYEQ-232-5kV-3G4

4

21.1

0.20

5.2

0.08

2.0

1.47x0.59

37.3x15.1

1478

2200

QYEQ-232-5kV-3G2

2

33.6

0.26

6.6

0.08

2.0

1.63x0.64

41.4x16.3

1882

2800

QYEQ-232-5kV-3G1

1

42.4

0.29

7.4

0.08

2.0

1.73x0.67

43.9x17.0

2083

3100

Other conductor size can be offered upon request.
