250℉/121℃ PP/LEAD Flat Electrical Submersible Pump Cable


Applications

These cables are designed for transmitting power to the submersible motor in the oil industry, suitable for installed down well in the oil industry.

Standards

  • IEEE Std. 1019
  • API RP 11S5
  • API RP 11S6

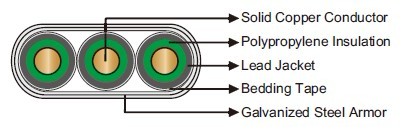

Construction

250℉/121℃ PP/LEAD Flat Electrical Submersible Pump Cable

  • Conductor: Solid bare copper conductor.
  • Insulation: Polypropylene insulation with a metal deactivator and a poly adhesive layer to the conductor.
  • Jacket: Lead jacket.
  • Tape: Longitudinally applied, rubber backed, fabric bedding tap.
  • Armor: Galvanized steel tape.

Dimensions and Weight:

5KV

Cable Type

Conductor
Size

Conductor
O.D.

Insulation
Thickness

Overall O.D.

Weight



AWG

mm²

inches

mm

Inches

mm

Inches

mm

lbs/
kft

kg/
km

QYPQ-121-5kV-3G4

4

21.1

0.20

5.2

0.09

2.3

1.60 x 0.62

40.6 x 15.7

1700

2529

QYPQ-121-5kV-3G2

2

33.6

0.26

6.6

0.09

2.3

1.76 x 0.67

44.7 x 17.0

2100

3124

QYPQ-121-5kV-3G1

1

42.4

0.29

7.4

0.09

2.3

1.85 x 0.70

47.0 x 17.8

2400

3571

Other conductor size can be offered upon request.
