205℉/96℃ PP/NBR Round Electrical Submersible Pump Cable
Applications
These cables are designed for transmitting power to the submersible motor in the oil industry,
suitable for installed down well in the oil industry.
Standards
- IEEE Std. 1019
- API RP 11S5
- API RP 11S6

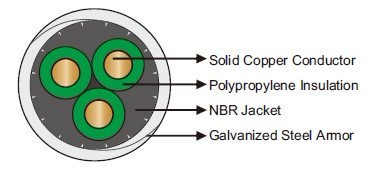

Construction
- Conductor:
Solid/stranded copper conductor.
- Insulation: Polypropylene insulation.
- Jacket: Oil-resistant nitrile rubber.
- Armor: Galvanized steel.
Dimensions and Weight:
3KV
Cable Type |
Conductor Size |
Conductor O.D. |
Insulation
Thickness |
Overall O.D. |
Weight |
|
AWG |
mm² |
inches |
mm |
Inches |
mm |
Inches |
mm |
lbs/kft |
kg/km |
QYPNY-96-3kV-3G10S |
- |
10 |
0.14 |
3.556 |
0.075 |
1.9 |
1.03 |
26.1 |
724 |
1077 |
QYPNY-96-3kV-3G6 |
6 |
13.3 |
0.162 |
4.115 |
0.075 |
1.9 |
1.09 |
27.8 |
832 |
1238 |
QYPNY-96-3kV-3G16S |
- |
16 |
0.178 |
4.521 |
0.075 |
1.9 |
1.14 |
29.0 |
917 |
1364 |
QYPNY-96-3kV-3G4 |
4 |
21.1 |
0.204 |
5.182 |
0.075 |
1.9 |
1.22 |
31.0 |
1066 |
1587 |
QYPNY-96-3kV-3G25S |
- |
25 |
0.222 |
5.639 |
0.075 |
1.9 |
1.27 |
32.3 |
1178 |
1752 |
QYPNY-96-3kV-3G2 |
2 |
33.6 |
0.258 |
6.553 |
0.075 |
1.9 |
1.38 |
35.1 |
1420 |
2114 |
QYPNY-96-3kV-3G1 |
1 |
42.4 |
0.289 |
7.341 |
0.075 |
1.9 |
1.47 |
37.4 |
1651 |
2456 |
QYPNY-96-3kV-3G1/0 |
1/0 |
53.5 |
0.368 |
9.347 |
0.075 |
1.9 |
1.71 |
43.4 |
2326 |
3462 |
QYPNY-96-3kV-3G2/0 |
2/0 |
67.4 |
0.414 |
10.516 |
0.075 |
1.9 |
1.84 |
46.8 |
2779 |
4135 |
5KV
Cable Type |
Conductor Size |
Conductor O.D. |
Insulation
Thickness |
Overall O.D. |
Weight |
|
AWG |
mm² |
inches |
mm |
Inches |
mm |
Inches |
mm |
lbs/kft |
kg/km |
QYPNY-96-5kV-3G10S |
- |
10 |
0.14 |
3.556 |
0.09 |
2.3 |
1.12 |
28.5 |
806 |
1199 |
QYPNY-96-5kV-3G6 |
6 |
13.3 |
0.162 |
4.115 |
0.09 |
2.3 |
1.19 |
30.2 |
917 |
1365 |
QYPNY-96-5kV-3G16S |
- |
16 |
0.178 |
4.521 |
0.09 |
2.3 |
1.24 |
31.4 |
1005 |
1495 |
QYPNY-96-5kV-3G4 |
4 |
21.1 |
0.204 |
5.182 |
0.09 |
2.3 |
1.31 |
33.4 |
1158 |
1724 |
QYPNY-96-5kV-3G25S |
- |
25 |
0.222 |
5.639 |
0.09 |
2.3 |
1.37 |
34.7 |
1272 |
1894 |
QYPNY-96-5kV-3G2 |
2 |
33.6 |
0.258 |
6.553 |
0.09 |
2.3 |
1.47 |
37.4 |
1521 |
2263 |
QYPNY-96-5kV-3G1 |
1 |
42.4 |
0.289 |
7.341 |
0.09 |
2.3 |
1.57 |
39.8 |
1756 |
2613 |
QYPNY-96-5kV-3G1/0 |
1/0 |
53.5 |
0.368 |
9.347 |
0.09 |
2.3 |
1.80 |
45.7 |
2444 |
3637 |
QYPNY-96-5kV-3G2/0 |
2/0 |
67.4 |
0.414 |
10.516 |
0.09 |
2.3 |
1.94 |
49.2 |
2903 |
4321 |
|
