176℉/80℃ PP/HDPE Unarmored Round
Electrical Submersible Pump Cable
Applications
These cables are designed for transmitting power to the submersible motor in the oil industry,
suitable for installed down well in the oil industry.
Standards
- IEEE Std. 1019
- API RP 11S5
- API RP 11S6
1

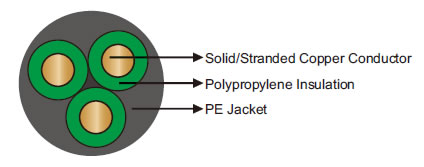

Construction
- Conductors: Solid/stranded copper conductor.
- Insulation: Polypropylene insulation.
- Jacket:
Excellent abrasion resistance PE.
Dimensions and Weight:
3KV
Cable Type |
Conductor
Size |
Conductor
O.D. |
Insulation
Thickness |
Overall O.D. |
Weight |
|
AWG |
mm² |
inches |
mm |
Inches |
mm |
Inches |
mm |
lbs/kft |
kg/km |
QYPHY(U)-80-5kV-3G10S |
- |
10 |
0.14 |
3.556 |
0.075 |
1.9 |
0.98 |
24.9 |
518 |
771 |
QYPHY(U)-80-5kV-3G6 |
6 |
13.3 |
0.162 |
4.115 |
0.075 |
1.9 |
1.04 |
26.5 |
613 |
913 |
QYPHY(U)-80-5kV-3G16S |
- |
16 |
0.178 |
4.521 |
0.075 |
1.9 |
1.09 |
27.7 |
689 |
1025 |
QYPHY(U)-80-5kV-3G4 |
4 |
21.1 |
0.204 |
5.182 |
0.075 |
1.9 |
1.17 |
29.7 |
823 |
1225 |
QYPHY(U)-80-5kV-3G25S |
- |
25 |
0.222 |
5.639 |
0.075 |
1.9 |
1.22 |
31.1 |
924 |
1375 |
QYPHY(U)-80-5kV-3G2 |
2 |
33.6 |
0.258 |
6.553 |
0.075 |
1.9 |
1.33 |
33.8 |
1146 |
1705 |
QYPHY(U)-80-5kV-3G1 |
1 |
42.4 |
0.289 |
7.341 |
0.075 |
1.9 |
1.42 |
36.1 |
1358 |
2021 |
QYPHY(U)-80-5kV-3G1/0 |
1/0 |
53.5 |
0.368 |
9.347 |
0.075 |
1.9 |
1.66 |
42.1 |
1987 |
2958 |
QYPHY(U)-80-5kV-3G2/0 |
2/0 |
67.4 |
0.414 |
10.516 |
0.075 |
1.9 |
1.80 |
45.6 |
2413 |
3591 |
5KV
Cable Type |
Conductor
Size |
Conductor
O.D. |
Insulation
Thickness |
Overall O.D. |
Weight |
|
AWG |
mm² |
inches |
mm |
Inches |
mm |
Inches |
mm |
lbs/kft |
kg/km |
QYPHY(U)-80-5kV-3G10S |
- |
10 |
0.14 |
3.556 |
0.09 |
2.3 |
1.07 |
27.2 |
582 |
866 |
QYPHY(U)-80-5kV-3G6 |
6 |
13.3 |
0.162 |
4.115 |
0.09 |
2.3 |
1.14 |
28.9 |
681 |
1013 |
QYPHY(U)-80-5kV-3G16S |
- |
16 |
0.178 |
4.521 |
0.09 |
2.3 |
1.19 |
30.1 |
759 |
1129 |
QYPHY(U)-80-5kV-3G4 |
4 |
21.1 |
0.204 |
5.182 |
0.09 |
2.3 |
1.26 |
32.1 |
897 |
1335 |
QYPHY(U)-80-5kV-3G25S |
- |
25 |
0.222 |
5.639 |
0.09 |
2.3 |
1.32 |
33.4 |
1001 |
1489 |
QYPHY(U)-80-5kV-3G2 |
2 |
33.6 |
0.258 |
6.553 |
0.09 |
2.3 |
1.42 |
36.2 |
1228 |
1827 |
QYPHY(U)-80-5kV-3G1 |
1 |
42.4 |
0.289 |
7.341 |
0.09 |
2.3 |
1.52 |
38.5 |
1445 |
2150 |
QYPHY(U)-80-5kV-3G1/0 |
1/0 |
53.5 |
0.368 |
9.347 |
0.09 |
2.3 |
1.75 |
44.5 |
2087 |
3105 |
QYPHY(U)-80-5kV-3G2/0 |
2/0 |
67.4 |
0.414 |
10.516 |
0.09 |
2.3 |
1.89 |
47.9 |
2520 |
3749 |
|
