176℉/80℃ PP/HDPE Flat Electrical Submersible Pump Cable
Applications
These cables are designed for transmitting power to the submersible motor in the oil industry,
suitable for installed down well in the oil industry.
Standards
- IEEE Std. 1019
- API RP 11S5
- API RP 11S6

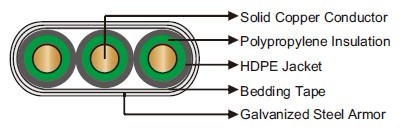

Construction
- Conductor:
Solid bare copper conductor with poly adhesive layer.
- Insulation: Polypropylene insulation
- Jacket: HDPE jacket.
- Tape: Helicoidally applied bedding tape.
- Armor: Galvanized steel armor.
Dimensions and Weight:
3KV
Cable Type |
Conductor
Size |
Conductor
O.D. |
Insulation
Thickness |
Overall O.D. |
Weight |
|
AWG |
mm² |
inches |
mm |
Inches |
mm |
Inches |
mm |
lbs/kft |
kg/km |
QYPH-80-3kV-3G6 |
6 |
13.3 |
0.16 |
4.1 |
0.075 |
1.9 |
1.5 x 0.6 |
39.2 x 14.4 |
850 |
1265 |
QYPH-80-3kV-3G4 |
4 |
21.1 |
0.20 |
5.1 |
0.075 |
1.9 |
1.7 x 0.6 |
42.4 x 15.5 |
1060 |
1577 |
QYPH-80-3kV-3G2 |
2 |
33.5 |
0.26 |
6.6 |
0.075 |
1.9 |
1.8 x 0.7 |
46.5 x 16.9 |
1360 |
2023 |
QYPH-80-3kV-3G1 |
1 |
42.4 |
0.29 |
7.4 |
0.075 |
1.9 |
1.9 x 0.7 |
48.9 x 17.7 |
1560 |
2321 |
4KV
Cable Type |
Conductor
Size |
Conductor
O.D. |
Insulation
Thickness |
Overall O.D. |
Weight |
|
AWG |
mm² |
inches |
mm |
Inches |
mm |
Inches |
mm |
lbs/kft |
kg/km |
QYPH-80-4kV-3G6 |
6 |
13.3 |
0.16 |
4.1 |
0.08 |
2.1 |
1.6 x 0.6 |
40.4 x 14.8 |
880 |
1309 |
QYPH-80-4kV-3G4 |
4 |
21.1 |
0.20 |
5.1 |
0.08 |
2.1 |
1.7 x 0.6 |
43.6 x 15.9 |
1090 |
1622 |
QYPH-80-4kV-3G2 |
2 |
33.5 |
0.26 |
6.6 |
0.08 |
2.1 |
1.9 x 0.7 |
47.7 x 17.3 |
1390 |
2068 |
QYPH-80-4kV-3G1 |
1 |
42.4 |
0.29 |
7.4 |
0.08 |
2.1 |
2.0 x 0.7 |
50.1 x 18.1 |
1590 |
2366 |
5KV
Cable Type |
Conductor
Size |
Conductor
O.D. |
Insulation
Thickness |
Overall O.D. |
Weight |
|
AWG |
mm² |
inches |
mm |
Inches |
mm |
Inches |
mm |
lbs/kft |
kg/km |
QYPH-80-5kV-3G6 |
6 |
13.3 |
0.16 |
4.1 |
0.09 |
2.3 |
1.6 x 0.6 |
41.6 x 15.2 |
910 |
1354 |
QYPH-80-5kV-3G4 |
4 |
21.1 |
0.20 |
5.1 |
0.09 |
2.3 |
1.8 x 0.6 |
44.8 x 16.3 |
1120 |
1666 |
QYPH-80-5kV-3G2 |
2 |
33.5 |
0.26 |
6.6 |
0.09 |
2.3 |
1.9 x 0.7 |
48.9 x 17.7 |
1420 |
2113 |
QYPH-80-5kV-3G1 |
1 |
42.4 |
0.29 |
7.4 |
0.09 |
2.3 |
2.0 x 0.7 |
51.3 x 18.5 |
1620 |
2410 |
Other conductor size can be offered upon request. |
