Pair Screened & Insulated Partially Longitudinally Water
Blocked Cable
Applications
These outboard installation cables for naval vessels are transversally water blocked and
longitudinally completely water blocked (all wires are not water blocked), designed according to VG
95218 part 29.

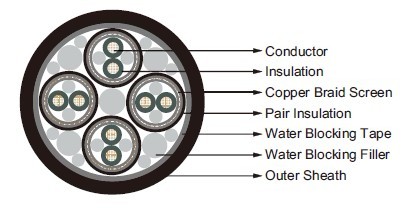

Construction
- Conductor:Copper conductor, fine stranded.
- Insulation: Special elastomer.
- Cable Element: Pairs.
- Individual Screen: Pairs are screened with tinned copper wire braid.
- Pair Insulation: Special elastomer.
- Fillers: Water-blocking fillers.
- Separator: Water-blocking tapes.
- Sheath: Cross linked halogen free flame retardant compound.
Electrical Data:
500V
| Number of Cores × Nominal Cross Section Area |
Maximum Transfer impedance |
| No. × mm² |
m Ω /m |
| 4×2×0.75 |
15 |
| 7×2×0.75 |
15 |
| 8×2×0.75 |
15 |
| 10×2×0.75 |
15 |
| 27×2×0.38 |
15 |
Dimension and Weight:
Number of Cores × Nominal
Cross Section Area |
Maximum Single
Core Diameter |
Minimum Sheath
Thickness |
Minimum Overall
Diameter |
Maximum Overall
Diameter |
Maximum Weight |
| No. × mm² |
mm |
mm |
mm |
mm |
kg/km |
| 4×2×0.75 |
1.9 |
1.7 |
17.8 |
18.4 |
430 |
| 7×2×0.75 |
1.9 |
2.0 |
19.8 |
20.4 |
650 |
| 8×2×0.75 |
1.9 |
2.0 |
22.1 |
22.7 |
720 |
| 10×2×0.75 |
1.9 |
2.0 |
26.3 |
26.9 |
900 |
| 27×2×0.38 |
1.3 |
2.5 |
34.1 |
34.7 |
1500 |
|
