Lead Sheathed AC High-voltage Submarine Cable


Applications

These submarine cables are used for power transmission to offshore islands, oil platforms or to cross-rivers and lakes. Cable design based on the mayor national or international standards e.g. VDE, IEC and ICEA or according to customers design and standards.

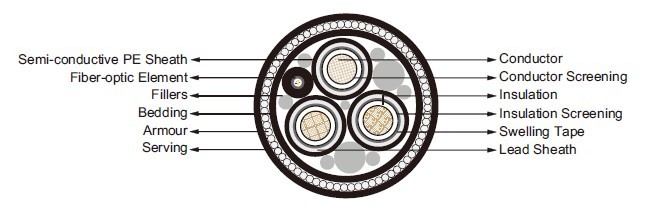

Construction

Submarine Cables

  • Conductor:Copper conductor, water blocked.
  • Conductor Screening: Extruded semi-conductive compound.
  • Insulation: XLPE.
  • Insulation Screening: extruded semi-conductive compound.
  • Separator: Swelling tape.
  • Core Sheath1: Lead Sheath.
  • Core Sheath2: Semi-conductive PE sheath.
  • Fillers: Polypropylene filler.
  • Fibre-optic Element: Fibre optic cable.
  • Bedding: Bedding layer.
  • Armour: Galvanized steel wires filled with bitumen compound.
  • Serving: Polypropylene yarn.

Electrical Data:

26/45(52) kV

Nominal
Cross Section Area		 Capacitance Inductance Charging Current per phase
@50Hz
mm² μF/km mH/km A/km
95 0.18 0.43 1.5
120 0.19 0.42 1.6
150 0.21 0.40 1.6
185 0.22 0.39 1.8
240 0.24 0.37 2.0
300 0.26 0.36 2.2
400 0.29 0.35 2.3
500 0.32 0.33 2.6
630 0.35 0.32 2.9
800 0.38 0.31 3.1
1000 0.42 0.30 3.5

38/66(72.5) kV

Nominal
Cross Section Area		 Capacitance Inductance Charging Current per phase
@50Hz
mm² μF/km mH/km A/km
95 0.17 0.44 2.0
120 0.18 0.43 2.1
150 0.19 0.41 2.3
185 0.20 0.40 2.4
240 0.22 0.38 2.6
300 0.24 0.37 2.8
400 0.26 0.35 3.1
500 0.29 0.34 3.5
630 0.32 0.33 3.7
800 0.35 0.32 4.1
1000 0.38 0.31 4.6

64/110(123) kV

Nominal
Cross Section Area		 Capacitance Inductance Charging Current per phase
@50Hz
mm² μF/km mH/km A/km
185 0.14 0.46 2.8
240 0.15 0.43 3.0
300 0.17 0.41 3.5
400 0.20 0.38 3.9
500 0.22 0.37 4.3
630 0.24 0.36 4.7
800 0.26 0.34 5.2
1000 0.28 0.33 5.6

76/132(145) kV

Nominal
Cross Section Area		 Capacitance Inductance Charging Current per phase
@50Hz
mm² μF/km mH/km A/km
185 0.13 0.47 3.0
240 0.14 0.44 3.4
300 0.16 0.42 3.8
400 0.18 0.40 4.3
500 0.20 0.38 4.6
630 0.21 0.37 5.1
800 0.23 0.36 5.6
1000 0.25 0.35 6.1

87/150(170) kV

Nominal
Cross Section Area		 Capacitance Inductance Charging Current per phase
@50Hz
mm² μF/km mH/km A/km
240 0.13 0.47 3.4
300 0.14 0.44 3.7
400 0.15 0.42 4.1
500 0.17 0.40 4.7
630 0.19 0.38 5.3
800 0.21 0.37 5.7
1000 0.23 0.36 6.3

127/220(245) kV

Nominal
Cross Section Area		 Capacitance Inductance Charging Current per phase
@50Hz
mm² μF/km mH/km A/km
500 0.14 0.43 5.7
630 0.16 0.41 6.4
800 0.17 0.40 6.9
1000 0.19 0.38 7.4

160/275(300) kV

Nominal
Cross Section Area		 Capacitance Inductance Charging Current per phase
@50Hz
mm² μF/km mH/km A/km
500 0.14 0.44 6.8
630 0.16 0.42 7.7
800 0.17 0.40 8.3
1000 0.18 0.39 9.0

Dimension and Weight:

26/45(52) kV

Nominal
Cross Section
Area		 Nominal
Conductor
Diameter		 Nominal
Insulation
Thickness		 Nominal
Diameter Over
Insulation		 Nominal
Lead Sheath
Thickness		 Nominal Overall
Diameter		 Weight
mm² mm mm mm mm mm kg/m
95 11.2 8.0 29.6 1.3 109.0 20.8
120 12.6 8.0 31.0 1.3 112.0 22.3
150 14.2 8.0 32.6 1.4 116.0 24.4
185 15.8 8.0 34.2 1.4 119.0 26.2
240 18.1 8.0 36.5 1.5 124.0 29.5
300 20.4 8.0 38.8 1.6 130.0 32.9
400 23.2 8.0 41.6 1.7 136.0 37.9
500 26.2 8.0 45.0 1.8 144.0 43.2
630 29.8 8.0 48.6 1.9 152.0 49.7
800 33.7 8.0 52.5 2.1 162.0 58.6
1000 37.9 8.0 57.3 2.2 173.0 68.1

38/66(72.5) kV

Nominal
Cross Section
Area		 Nominal
Conductor
Diameter		 Nominal
Insulation
Thickness		 Nominal
Diameter Over
Insulation		 Nominal
Lead Sheath
Thickness		 Nominal Overall
Diameter		 Weight
mm² mm mm mm mm mm kg/m
95 11.2 9.0 31.6 1.3 113.0 21.6
120 12.6 9.0 33.0 1.4 116.0 23.8
150 14.2 9.0 34.6 1.4 120.0 25.7
185 15.8 9.0 36.2 1.4 124.0 28.0
240 18.1 9.0 38.5 1.6 129.0 31.3
300 20.4 9.0 40.8 1.6 134.0 34.3
400 23.2 9.0 43.6 1.7 141.0 39.2
500 26.2 9.0 47.0 1.9 149.0 45.4
630 29.8 9.0 50.6 2.0 157.0 52.0
800 33.7 9.0 54.5 2.1 167.0 60.1
1000 37.9 9.0 59.3 2.3 178.0 70.7

64/110(123) kV

Nominal
Cross Section
Area		 Nominal
Conductor
Diameter		 Nominal
Insulation
Thickness		 Nominal
Diameter Over
Insulation		 Nominal
Lead Sheath
Thickness		 Nominal Overall
Diameter		 Weight
mm² mm mm mm mm mm kg/m
185 15.8 16.0 50.2 2.0 156.0 40.9
240 18.1 15.0 50.5 2.0 157.0 42.5
300 20.4 14.0 50.8 2.0 157.0 44.1
400 23.2 13.0 51.6 2.0 159.0 47.2
500 26.2 13.0 55.0 2.1 167.0 53.0
630 29.8 13.0 58.6 2.3 176.0 60.7
800 33.7 13.0 62.5 2.4 185.0 69.5
1000 37.9 13.0 67.3 2.6 197.0 80.5

76/132(145) kV

Nominal
Cross Section
Area		 Nominal
Conductor
Diameter		 Nominal
Insulation
Thickness		 Nominal
Diameter Over
Insulation		 Nominal
Lead Sheath
Thickness		 Nominal Overall
Diameter		 Weight
mm² mm mm mm mm mm kg/m
185 15.8 18.0 54.2 2.1 165.0 44.9
240 18.1 17.0 54.5 2.1 166.0 46.3
300 20.4 16.0 54.8 2.1 167.0 48.0
400 23.2 15.0 55.6 2.1 168.0 51.1
500 26.2 15.0 59.0 2.3 176.0 58.0
630 29.8 15.0 62.6 2.4 185.0 65.2
800 33.7 15.0 66.5 2.5 194.0 74.0
1000 37.9 15.0 71.3 2.7 206.0 85.4

87/150(170) kV

Nominal
Cross Section
Area		 Nominal
Conductor
Diameter		 Nominal
Insulation
Thickness		 Nominal
Diameter Over
Insulation		 Nominal
Lead Sheath
Thickness		 Nominal Overall
Diameter		 Weight
mm² mm mm mm mm mm kg/m
240 18.1 21.0 62.5 2.4 184.0 55.5
300 20.4 20.0 62.8 2.4 185.0 57.3
400 23.2 19.0 63.6 2.4 187.0 60.5
500 26.2 18.0 65.0 2.5 190.0 65.1
630 29.8 17.0 66.6 2.5 194.0 69.7
800 33.7 17.0 70.5 2.7 204.0 79.8
1000 37.9 17.0 75.3 2.8 215.0 90.5

127/220(245) kV

Nominal
Cross Section
Area		 Nominal
Conductor
Diameter		 Nominal
Insulation
Thickness		 Nominal
Diameter Over
Insulation		 Nominal
Lead Sheath
Thickness		 Nominal Overall
Diameter		 Weight
mm² mm mm mm mm mm kg/m
500 26.2 24.0 77.6 2.9 219.0 81.3
630 29.8 23.0 79.2 3.0 224.0 86.7
800 33.7 23.0 83.1 3.1 234.0 95.3
1000 37.9 23.0 87.3 3.1 241.0 104.0

160/275(300) kV

Nominal
Cross Section
Area		 Nominal
Conductor
Diameter		 Nominal
Insulation
Thickness		 Nominal
Diameter Over
Insulation		 Nominal
Lead Sheath
Thickness		 Nominal Overall
Diameter		 Weight
mm² mm mm mm mm mm kg/m
500 26.2 26.0 81.6 2.9 229.0 84.7
630 29.8 24.0 81.2 3.0 228.0 88.9
800 33.7 24.0 85.1 3.1 237.0 97.6
1000 37.9 24.0 89.3 3.1 247.0 106.3
