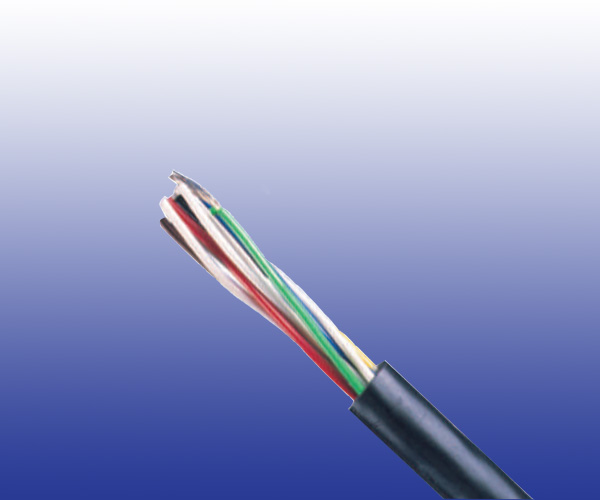

ZUG/ ZUT/ SUG Indoor Equipment Cables
Application
The cables are used as cabling for the relays and electronic equipments in the Traffic Control Center and Trackside Equipment Shelter. The cables are suitable for indoor interconnection of railway network equipments.
Standards
•SNCF CT 455
Construction
Conductors
Class 5 stranded tinned copper, 1 mm² or 0.38 mm² cross section.
Insulation
Coloured PVC.
Cabling Element
Pairs (for ZUG/ZUT)/Cores (for SUG).
Core Wrapping (optional)
Plastic tape(s) with overlapping.
Screen (optional)
Tinned copper braid for electrostatic protection (only for ZUT type).
Sheath
Black FRPVC compound. LSZH option can be offered upon request.
Electrical Characteristics at 20℃
No of Strands/ Strand Diameter |
No/mm |
12/0.2 |
32/0.2 |
Nominal Cross Section Area |
mm² |
0.38 |
1 |
Maximum Conductor Resistance (DC) |
Ω/km |
52.5 |
20.1 |
Operating Voltage |
V |
450/750 |
450/750 |
Mechanical and Thermal Properties
Minimum Bending Radius: 4×OD (static); 8×OD (dynamic)
Operating Temperature: -15℃ to +70℃
Dimensions And Weight
ZUG Cables
Cable Code |
Number of Pairs |
Nominal Sheath Thickness mm |
Nominal Overall Diameter mm |
Nominal Weight kg/km |
12/0.2mm Conductor, 1.4mm Insulated Wire |
||||
RS/ZUG-075-YY-28P0.38S |
28 |
0.7 |
15.7 |
310 |
32/0.2mm Conductor, 2.09mm Insulated Wire |
||||
RS/ZUG-075-YY-1P1S |
1 |
0.7 |
7.0 |
59 |
RS/ZUG-075-YY-3P1S |
3 |
0.7 |
9.9 |
108 |
RS/ZUG-075-YY-6P1S |
6 |
0.7 |
12.4 |
184 |
RS/ZUG-075-YY-12P1S |
12 |
0.7 |
15.7 |
335 |
SUG Cables
Cable Code |
Number of Conductors |
Nominal Sheath Thickness mm |
Nominal Overall Diameter mm |
Nominal Weight kg/km |
32/0.2mm Conductor, 2.09mm Insulated Wire |
||||
RS/SUG-075-YY-3C1S |
3 |
0.7 |
8 |
73 |
ZUT Cables
Cable Code |
Number of Pairs |
Nominal Sheath Thickness mm |
Nominal Overall Diameter mm |
Nominal Weight kg/km |
32/0.2mm Conductor, 2.09mm Insulated Wire |
||||
RS/ZUT-075-YCY-2P1S |
2 |
0.7 |
9.5 |
122 |
RS/ZUT-075-YCY-6P1S |
6 |
0.7 |
13.5 |
276 |
RS/ZUT-075-YCY-12P1S |
12 |
0.7 |
17.5 |
445 |
