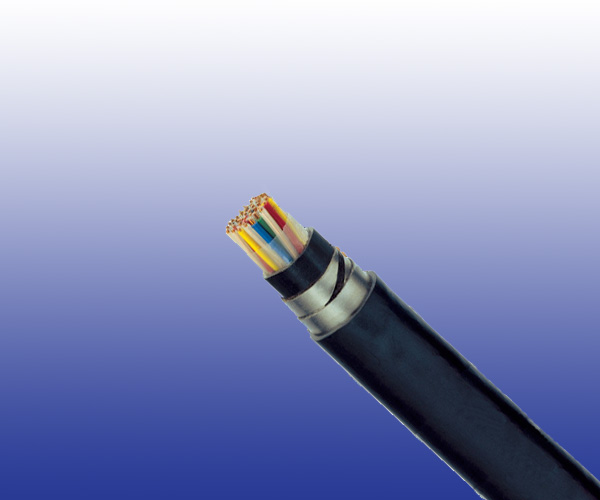

ZPFU & ZPFU-SH Main & Local Signalling Cables
(DC Electrifi ed Lines)
Application
The cables are designed for the main signalling circuits of 1500V DC electrifi ed lines.
Standards
● SNCF CT 445
● NF F 55-698
Construction
Conductors
Solid annealed copper, 1.0mm² nominal cross section area.
Insulation
Solid polyethylene.
Cabling Element
Two conductors are twisted to form a pair.
Stranding
Pairs are helically stranded to form the cable core.
Core Wrapping
Plastic tape(s) with overlapping.
Inner Sheath
PE. LSZH FR option can be offered upon request to NF C 32 070.2.2 (C1).
Mechanical Protection
Two helically applied steel tapes (0.15, 0.2/0.5mm, depending on pair count).
Outer Sheath
PE/PVC. LSZH FR option can be offered upon request to NF C 32 070.2.2 (C1).
Remarks
ZPFU: PE/PVC Sheath; ZPFU-SH: LSZH Sheath.
Electrical Characteristics at 20℃
Nominal Conductor Diameter | mm |
1.13 |
1.38 |
Nominal Cross Section Area | mm² |
1.0 |
1.5 |
Maximum Conductor Resistance (DC) | Ω/km |
18.1 |
12.31 |
Minimum Insulation Resistance @500 V DC (3mins) | MΩ.km |
5000 |
5000 |
Maximum Mutual Capacitance @1000Hz (AC) | nF/km |
55 |
55 |
Maximum Capacitance Unbalance @1000Hz | pF/500 m |
400 |
400 |
Attenuation @45KHz | dB/km |
2.5 |
2.5 |
Characteristic Impedance @45KHz | Ω |
120 |
120 |
Dielectric Strength, conductor to conductor (DC voltage 3secs) | V |
4500 |
4500 |
Operating Voltage (AC/DC) | V |
450/750 |
450/750 |
Mechanical and Thermal Properties
Minimum Bending Radius: 8×OD (static); 16×OD (dynamic)
Temperature Range: -40℃ to +70℃ (during operation); -20℃ to +50℃ (during installation)
Dimensions And Weight
Cable Code |
No. of Pairs |
Nominal Sheath Thickness mm |
Nominal Overall Diameter mm |
Nominal Weight kg/km |
Armour Thickness mm |
|
Inner |
Outer |
|||||
1.13mm Conductor, 2.3 Insulated Wire |
||||||
RS/ZPFU-2Y2YB2Y-1P1S |
1 |
1.0 |
1.5 |
11.7 |
207 |
0.15 |
RS/ZPFU-2Y2YB2Y-2P1S |
2 |
1.0 |
1.5 |
12.9 |
257 |
0.2 |
RS/ZPFU-2Y2YB2Y-4P1S |
4 |
1.0 |
1.6 |
16.8 |
509 |
0.2 |
RS/ZPFU-2Y2YB2Y-7P1S |
7 |
1.0 |
1.7 |
19.0 |
653 |
0.5 |
RS/ZPFU-2Y2YB2Y-14P1S |
14 |
1.2 |
1.8 |
24.1 |
1011 |
0.5 |
RS/ZPFU-2Y2YB2Y-21P1S |
21 |
1.2 |
2.0 |
27.8 |
1304 |
0.5 |
RS/ZPFU-2Y2YB2Y-28P1S |
28 |
1.2 |
2.2 |
31.0 |
1594 |
0.5 |
RS/ZPFU-2Y2YB2Y-56P1S |
56 |
1.3 |
2.5 |
40.5 |
2630 |
0.5 |
