Railway Cables | ||||||||||||
CCPSSP-R-FR0.1
Application
The cables are used as railway cables and can be installed directly into the ground or in ducts.
Standards
● RENFE E.T. 03.365.051.6

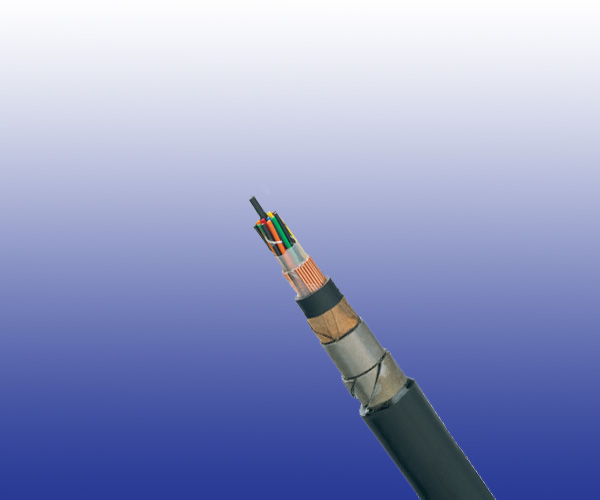

Construction
Conductors
Soft annealed solid copper, 0.9 mm nominal diameter.
Insulation
PE insulation.
Cabling Element
Four insulated conductors are twisted together to form a quad.
Stranding
Quads are helically stranded in concentric layers.
Core Wrapping
At least one layer of water swellable material with overlapping.
Inner Sheath
PE sheath.
Screen
1.4/1.8mm copper wires wrapping with one plastic tape (protection against interference).
Intermediate Sheath
PE sheath.
Armour
Two layers of steel tape (0.8mm thick).
Outer Sheath
PE sheath.
Electrical Characteristics at 20℃
Nominal Conductor Diameter | mm |
0.9 |
Maximum Conductor Resistance | Ω/km |
28.5 |
Minimum Insulation Resistance @500 V DC | MΩ.km |
25000 |
Mutual Capacitance @800Hz | nF/km |
41 |
Capacitance Unbalance @800Hz | ||
K1 maximum individual value | pF/460m |
250 |
K9-12 maximum individual value | pF/460m |
250 |
ea1/2 maximum individual value | pF/460m |
1200 |
Attenuation | ||
@1KHz | dB/km |
0.7 |
@10KHz | dB/km |
1.6 |
@30KHz | dB/km |
2.1 |
Test Voltage @50Hz 1min | ||
Core to Core | Veff |
2100 |
Core to Screen | Veff |
2500 |
Core to Armouring | Veff |
2000 |
Reduction Factor @100V/km 50Hz | 0.1 |
Mechanical and Thermal Properties
Minimum Bending Radius: 10×OD
Temperature Range: -30℃ to +70℃ (during operation); -5℃ to +50℃ (during installation)
Dimensions And Weight
Cable Code |
Number of Quads |
Nominal Sheath Thickness mm |
Maximum Overall Diameter mm |
Nominal Weight kg/km |
||
Inner |
Inter. |
Outer |
||||
0.9mm Conductor, 1.8mm Insulated Wire |
||||||
RS/CCPSSP-R-FR0.1-2Y(F)2YD2YB2Y-1Q0.9 |
1 |
1.5 |
1.5 |
1.6 |
23.7 |
1300 |
RS/CCPSSP-R-FR0.1-2Y(F)2YD2YB2Y-3Q0.9 |
3 |
1.5 |
1.5 |
1.6 |
27.7 |
1648 |
RS/CCPSSP-R-FR0.1-2Y(F)2YD2YB2Y-5Q0.9 |
5 |
1.5 |
1.5 |
1.6 |
31.5 |
1984 |
RS/CCPSSP-R-FR0.1-2Y(F)2YD2YB2Y-25Q0.9 |
25 |
1.7 |
1.7 |
1.8 |
51.3 |
4166 |
