Applications :

• Single core cable with very high resistance to temperature designed for internal wiring in lamps, heating appliances and distribution boxes in apparatus, mechanical and plant engineering, etc.

Standards :

• IEC 60332-1, EN 50265-2-1 (flame retardant)
• EN 50266-2 (non-flame propagating)

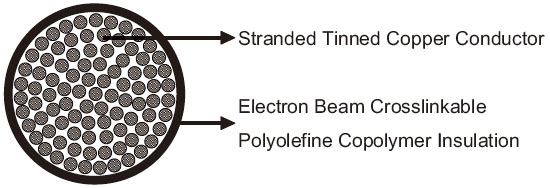

Construction :

• Conductors : Class 5 stranded tinned copper to IEC60228/VDE 0295.
• Insulation : Electron beam crosslinkable polyolefine copolymer.
• Colour Code : Various colours on request.

Electrical Characteristics at 20 °C :

• Nominal Conductor Cross Section	mm²	0.50	0.75	1.0	1.5	2.5	4.0	6.0
  Maximum Conductor Resistance	Ω/km	40.1	26.7	20.0	13.7	8.21	5.09	3.39
  Voltage Rating	V	450/750V (≤0.5mm²); 600/1000V (>0.5mm²)

Mechanical and Thermal Properties :

• Minimum Bending Radius : 4xOD (Static); 6xOD (Flexing).
• Temperature Range : -55℃ ~+155℃ (Static); -40℃ ~+120℃ (Flexing).
• Short Circuit Temperature : +280℃.

Dimensions and Weight :

No. of cores& Nominal Conductor Cross Sectional Area No.×mm²	Number and Nominal Diameter of Strands No./mm	Nominal Insulation Thickness mm	Nominal Overall Diameter mm	Nominal Weight kg/km
1×0.50	16/0.20	0.4	1.7	7
1×0.75	24/0.20	0.5	2.2	11
1×1.0	30/0.20	0.6	2.5	15
1×1.5	30/0.25	0.6	2.7	19
1×2.5	50/0.25	0.7	3.5	30
1×4.0	56/0.30	0.8	4.2	45
1×6.0	84/0.30	0.9	5.2	66
