PROFIBUS 1 Pair 0.35mm²
Application
These profibus cables are dedicated for fixed installation on board of ship, used as
connection cables for digital signals up to 12MBd.
Standards
DIN VDE 0472 part 805
IEC 60332-1&2
IEC 60754-1/2
IEC 61034

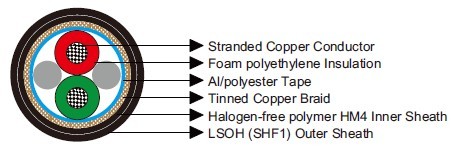

Construction
Conductors: Stranded bare copper.
Insulation: Foam polyethylene (cellular HDPE).
Overall Screen1: Aluminium/polyester tape.
Overall Screen2: Tinned copper braid.
Inner Sheath: Halogen-free polymer HM4.
Outer Sheath: LSOH (SHF1).
Core Identification
Core 1: Red
Core 2: Green
Electrical Characteristics
Characteristic Impedance |
Ω |
150 ± 15 |
Mutual Capacitance @800MHz |
nF/km |
30 |
Insulation Resistance |
MΩ.km |
16000 |
Attenuation @9.6kHz |
dB/km |
3 |
Attenuation @38.4kHz |
dB/km |
5 |
Attenuation @4kHz |
dB/km |
22 |
Attenuation @16kHz |
dB/km |
45 |
Mechanical and Thermal Properties
Bending Radius for Fixed Installations: 10×OD
Temperature Range: -35℃ ~ +80℃
Dimensions and Weight
Part No. |
Construction
No. of elements×No. of cores in element×Cross
section(mm²) |
Core Diameter mm |
Nominal Overall
Diameter mm |
Nominal Weight kg/km |
MLN-02Y(ST)CH-1×2×0.35 |
1×2×0.35 |
2.75 |
10.3 |
110 |
|
