PROFIBUS 1 Pair 22 AWG

PROFIBUS 1 Pair 22 AWG

Application
These profibus cables are dedicated for fixed installation on board of ship, used as connection cables for digital signals up to 12MBd.

Standards
 IEC 60332-1&2
 IEC 60754-1/2
 IEC 61034
 IEC 60092

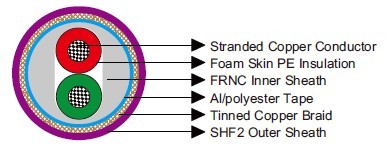

Construction
 Conductors: Stranded bare copper 22 AWG.
 Insulation: Foam skin PE.
 Inner Sheath: Thermoplastic copolymer (FRNC).
 Overall Screen1: Aluminium/polyester tape.
 Overall Screen2: Tinned copper braid.
 Outer Sheath: SHF2.

Core Identification
Core 1: Red
Core 2: Green

Electrical Characteristics

Characteristic Impedance

Ω

150 ± 15

Mutual Capacitance @1KHz

nF/km

28.5

Insulation Resistance

MΩ.km

16000

Attenuation @9.6kHz

dB/km

2.5

Attenuation @38.4kHz

dB/km

4

Attenuation @4kHz

dB/km

22

Attenuation @16kHz

dB/km

42

Mechanical and Thermal Properties
Bending Radius for Fixed Installations: 10×OD
Temperature Range: -25℃ ~ +80℃

Dimensions and Weight

Part No.

Construction
No. of elements×No. of cores in element×Cross
section(mm²)

Core Diameter mm

Nominal Overall
Diameter mm

Nominal Weight kg/km

MLN- 02YSH(ST)CH-1×2×22A

1×2×22 AWG

2.55

8.0

84
