Caledonian Order Code

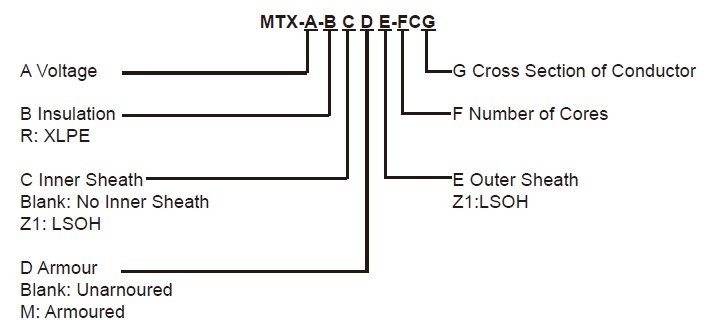

MariTox Marine Flame Retardant Medium Voltage Cables

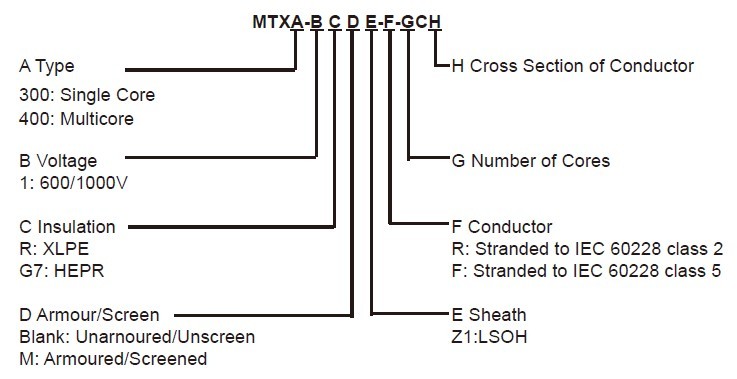

MariTox Marine Flame Retardant Power & Control Cables

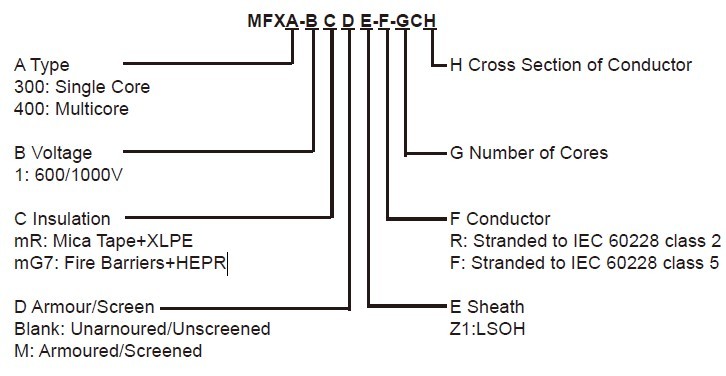

MariFlex Marine Fire Resistant Power & Control Cables

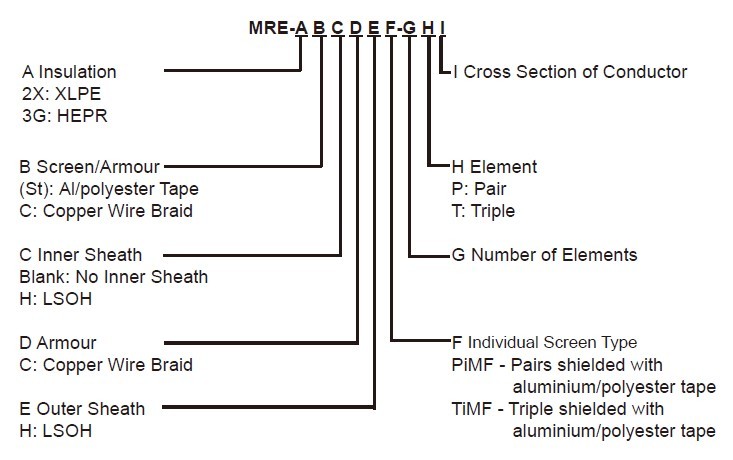

MariSig Flame Retardant Instrumentation & Control Cables

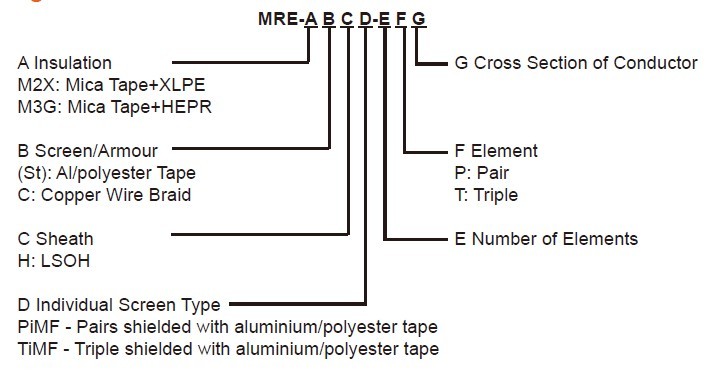

MariSig Fire Resistant Instrumentation & Control Cables

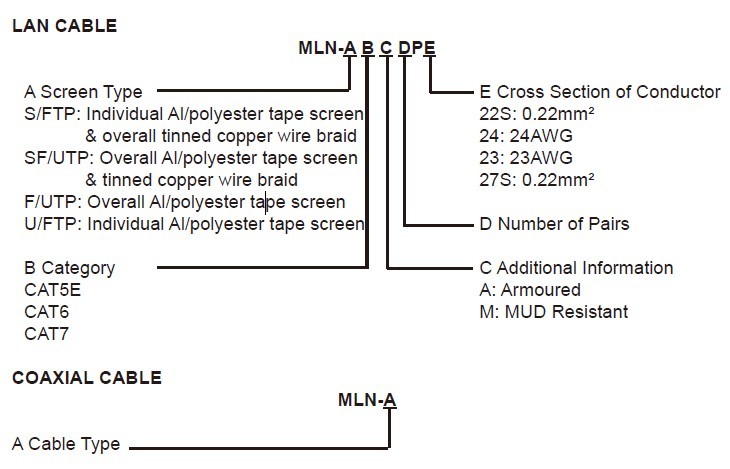

MariLan Marine Lan Data & Communication Cables
OPTICAL FIBER CABLE
MLN-BTA-X-N-H-F-H-CD-A
Semi-tight buffered (CD) breakout cable (BT) with halogen free & flame-retardant subcable
sheath (H), FRP central member (F), SHF1 sheath (H) and aramid strain relief elements.
MLN-MTA-X-N-H-F-H-CD/VT-A
Semi tight buffered (CD) or tight buffered (VT) distribution cable (MT) with halogen free& flame-retardant subcable sheath (H), FRP central member (F), SHF1 sheath (H) and aramid
strain relief elements.
MLN-MTA-X-N-H-VT-G
Tight buffered (VT) distribution cable (MT) with LSOH & FR compound sheath (H) and
fiberglass yarn reinforcing elements (G).
MLN-CLA-X-N-H-J-G
Central loose tube cable (CL) with water blocking gel in tubes (J), LSOH & FR compound
sheath (H) and fiberglass yarn reinforcing elements (G).
MLN-FCLA-X-N-H-J
Fire resistant (F) central loose tube cable (CL) with water blocking gel in tubes (J) and
SHF1 sheath (H).
X: Fiber type (0=Fiber and copper conductors in cable 4=50/125 multi-mode fiber (OM3);
5=50/125 multi-mode fiber (OM2); 6=50/125 multi-mode fiber (OM1); 7=NZDS SM fiber per
G.656.; 8=NZDS SM fiber per G.655.; 9=Standard SM fiber per G.652.D). N: No. of Fibers.
|
