MRE-M3GCH 150/250V Mica Tape + HEPR Insulated, LSOH (SHF1) Sheathed, Armoured Fire Resistant Instrumentation & Control Cables (Multipair)

MRE-M3GCH 150/250V Mica Tape + HEPR Insulated, LSOH (SHF1) Sheathed, Armoured Fire Resistant Instrumentation & Control Cables (Multipair)

Application
These cables are used on board of ships in all locations for fixed installations complying with IEC standards 60092-352 in safety circuit, where fire resistance is required. These cables are fire resistant, flame retardant, low smoke & halogen free, suitable for installations on passenger ships, as on other commercial vessels.

Standards
 DIN 89159
 IEC 60092-351/375/359
 IEC 60331-21
 IEC 60332-1
 IEC 60332-3-22
 IEC 60754-1/2
 IEC 61034

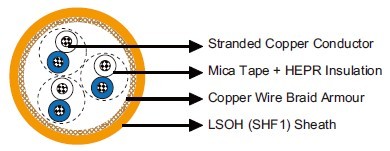

Construction
 Conductors: Stranded copper conductor.
 Insulation: Mica tape + HEPR.
 Cabling Element: Pair.
 Armour: Copper wire braid.
 Outer Sheath: LSOH (SHF1).

Core Identification
Pair: White/blue with printed pair number and core number.

Mechanical and Thermal Properties
Bending Radius for Fixed Installations: 6×OD
Temperature Range: -30℃ ~ +75℃

Dimensions and Weight

Part No.

Construction
No. of elements×No. of cores in element×Cross
section(mm²)

Nominal Insulation Thickness mm

Nominal Sheath Thickness mm

Nominal Overall
Diameter mm

Nominal Weight kg/km

MRE-M3GCH-1P0.75

1×2×0.75

0.5

1.2

10.5

110

MRE-M3GCH-2P0.75

2×2×0.75*

0.5

1.3

11.0

150

MRE-M3GCH-4P0.75

4×2×0.75

0.5

1.4

16.0

270

MRE-M3GCH-7P0.75

7×2×0.75

0.5

1.8

19.0

400

MRE-M3GCH-10P0.75

10×2×0.75

0.5

1.9

22.0

560

MRE-M3GCH-14P0.75

14×2×0.75

0.5

2.0

27.0

740

MRE-M3GCH-19P0.75

19×2×0.75

0.5

2.1

29.0

930

MRE-M3GCH-24P0.75

24×2×0.75

0.5

2.2

31.0

1110

*: 2 pairs are assembled as a quad.
