IEC60092 STANDARD Offshore & Marine Cables |
|
|
MariSig Fire Resistant Instrumentation & Control Cables
MRE-M2XH PiMF/TiMF 150/250V Mica Tape + XLPE Insulated,
LSOH (SHF1) Sheathed, Individual Screened Fire Resistant
Instrumentation & Control Cables (Multipair/Multitriple)
Application
These cables are used on board of ships in all locations for fixed installations not subject
to mechanical risk complying with IEC standards 60092-352 in safety circuit, where fire
resistance is required. These cables are fire resistant, flame retardant, low smoke & halogen
free, suitable for installations on passenger ships, as on other commercial vessels.
Standards
IEC 60092-350/351/376/359
IEC 60331-21
IEC 60332-1
IEC 60332-3-22
IEC 60754-1/2
IEC 61034

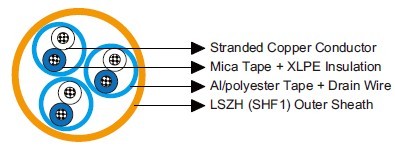

Construction
Conductors: Class 2 stranded copper conductor.
Insulation: Mica tape + XLPE.
Cabling Element: Pair/Triple.
Individual Screen: Al/polyester tape.
Drain Wire: Tinned copper wire.
Outer Sheath: LSOH (SHF1). SHF2 can be offered upon request.
Core Identification
Pair: White/blue with printed pair number and core number.
Triple: White/blue/red with printed triple number.
Mechanical and Thermal Properties
Bending Radius for Fixed Installations: 6×OD (OD>25mm); 4×OD (OD ≤25mm)
Temperature Range: -30℃ ~ +80℃
Dimensions and Weight
Part No. |
Construction
No. of elements×No. of cores in element×Cross
section(mm²) |
Nominal Insulation Thickness mm |
Nominal Sheath Thickness mm |
Nominal Overall
Diameter mm |
Nominal Weight kg/km |
MRE-M2XH PiMF-1P0.75 |
1×2×0.75 |
0.5 |
1.0 |
7.9 |
80 |
MRE-M2XH PiMF-2P0.75 |
2×2×0.75 |
0.5 |
1.2 |
12.4 |
170 |
MRE-M2XH PiMF-3P0.75 |
3×2×0.75 |
0.5 |
1.2 |
13.2 |
210 |
MRE-M2XH PiMF-4P0.75 |
4×2×0.75 |
0.5 |
1.3 |
14.3 |
260 |
MRE-M2XH PiMF-5P0.75 |
5×2×0.75 |
0.5 |
1.3 |
16.0 |
320 |
MRE-M2XH PiMF-6P0.75 |
6×2×0.75 |
0.5 |
1.4 |
17.4 |
380 |
MRE-M2XH PiMF-7P0.75 |
7×2×0.75 |
0.5 |
1.4 |
17.4 |
410 |
MRE-M2XH PiMF-8P0.75 |
8×2×0.75 |
0.5 |
1.4 |
18.5 |
460 |
MRE-M2XH PiMF-10P0.75 |
10×2×0.75 |
0.5 |
1.5 |
21.0 |
570 |
MRE-M2XH PiMF-12P0.75 |
12×2×0.75 |
0.5 |
1.5 |
21.8 |
650 |
MRE-M2XH PiMF-14P0.75 |
14×2×0.75 |
0.5 |
1.6 |
22.9 |
740 |
MRE-M2XH PiMF-16P0.75 |
16×2×0.75 |
0.5 |
1.6 |
24.6 |
840 |
MRE-M2XH PiMF-19P0.75 |
19×2×0.75 |
0.5 |
1.7 |
26.5 |
980 |
MRE-M2XH PiMF-20P0.75 |
20×2×0.75 |
0.5 |
1.7 |
26.5 |
1010 |
MRE-M2XH PiMF-24P0.75 |
24×2×0.75 |
0.5 |
1.9 |
30.6 |
1260 |
MRE-M2XH PiMF-30P0.75 |
30×2×0.75 |
0.5 |
2.0 |
33.4 |
1530 |
MRE-M2XH PiMF-37P0.75 |
37×2×0.75 |
0.5 |
2.1 |
35.9 |
1830 |
MRE-M2XH PiMF-1P1.0 |
1×2×1.0 |
0.5 |
1.0 |
8.3 |
90 |
MRE-M2XH PiMF-2P1.0 |
2×2×1.0 |
0.5 |
1.2 |
13.1 |
200 |
MRE-M2XH PiMF-3P1.0 |
3×2×1.0 |
0.5 |
1.3 |
14.2 |
250 |
MRE-M2XH PiMF-4P1.0 |
4×2×1.0 |
0.5 |
1.3 |
15.1 |
310 |
MRE-M2XH PiMF-5P1.0 |
5×2×1.0 |
0.5 |
1.4 |
17.1 |
380 |
MRE-M2XH PiMF-6P1.0 |
6×2×1.0 |
0.5 |
1.4 |
18.4 |
440 |
MRE-M2XH PiMF-7P1.0 |
7×2×1.0 |
0.5 |
1.4 |
18.4 |
480 |
MRE-M2XH PiMF-8P1.0 |
8×2×1.0 |
0.5 |
1.5 |
19.8 |
550 |
MRE-M2XH PiMF-10P1.0 |
10×2×1.0 |
0.5 |
1.6 |
22.4 |
690 |
MRE-M2XH PiMF-12P1.0 |
12×2×1.0 |
0.5 |
1.6 |
23.3 |
780 |
MRE-M2XH PiMF-14P1.0 |
14×2×1.0 |
0.5 |
1.6 |
24.2 |
880 |
MRE-M2XH PiMF-16P1.0 |
16×2×1.0 |
0.5 |
1.7 |
26.3 |
1020 |
MRE-M2XH PiMF-19P1.0 |
19×2×1.0 |
0.5 |
1.8 |
28.3 |
1190 |
MRE-M2XH PiMF-20P1.0 |
20×2×1.0 |
0.5 |
1.8 |
28.3 |
1230 |
MRE-M2XH PiMF-24P1.0 |
24×2×1.0 |
0.5 |
1.9 |
32.5 |
1510 |
MRE-M2XH PiMF-30P1.0 |
30×2×1.0 |
0.5 |
2.0 |
35.4 |
1840 |
MRE-M2XH PiMF-37P1.0 |
37×2×1.0 |
0.5 |
2.1 |
38.1 |
2210 |
MRE-M2XH TiMF-1T0.75 |
1×3×0.75 |
0.5 |
1.0 |
8.3 |
100 |
MRE-M2XH TiMF-2T0.75 |
2×3×0.75 |
0.5 |
1.2 |
13.5 |
210 |
MRE-M2XH TiMF-3T0.75 |
3×3×0.75 |
0.5 |
1.3 |
14.5 |
270 |
MRE-M2XH TiMF-4T0.75 |
4×3×0.75 |
0.5 |
1.3 |
16.0 |
330 |
MRE-M2XH TiMF-5T0.75 |
5×3×0.75 |
0.5 |
1.4 |
17.9 |
410 |
MRE-M2XH TiMF-6T0.75 |
6×3×0.75 |
0.5 |
1.5 |
20.3 |
500 |
MRE-M2XH TiMF-7T0.75 |
7×3×0.75 |
0.5 |
1.5 |
20.3 |
540 |
MRE-M2XH TiMF-8T0.75 |
8×3×0.75 |
0.5 |
1.5 |
21.8 |
620 |
MRE-M2XH TiMF-10T0.75 |
10×3×0.75 |
0.5 |
1.7 |
25.0 |
780 |
MRE-M2XH TiMF-12T0.75 |
12×3×0.75 |
0.5 |
1.7 |
26.4 |
900 |
MRE-M2XH TiMF-14T0.75 |
14×3×0.75 |
0.5 |
1.8 |
27.7 |
1020 |
MRE-M2XH TiMF-16T0.75 |
16×3×0.75 |
0.5 |
1.8 |
29.5 |
1160 |
MRE-M2XH TiMF-19T0.75 |
19×3×0.75 |
0.5 |
1.9 |
32.0 |
1360 |
MRE-M2XH TiMF-20T0.75 |
20×3×0.75 |
0.5 |
1.9 |
32.5 |
1420 |
MRE-M2XH TiMF-24T0.75 |
24×3×0.75 |
0.5 |
2.1 |
35.7 |
1700 |
MRE-M2XH TiMF-30T0.75 |
30×3×0.75 |
0.5 |
2.2 |
39.6 |
2100 |
MRE-M2XH TiMF-32T0.75 |
32×3×0.75 |
0.5 |
2.3 |
41.2 |
2250 |
MRE-M2XH TiMF-1T1.0 |
1×3×1.0 |
0.5 |
1.1 |
8.9 |
120 |
MRE-M2XH TiMF-2T1.0 |
2×3×1.0 |
0.5 |
1.3 |
14.4 |
250 |
MRE-M2XH TiMF-3T1.0 |
3×3×1.0 |
0.5 |
1.3 |
15.4 |
310 |
MRE-M2XH TiMF-4T1.0 |
4×3×1.0 |
0.5 |
1.4 |
17.1 |
400 |
MRE-M2XH TiMF-5T1.0 |
5×3×1.0 |
0.5 |
1.4 |
18.9 |
480 |
MRE-M2XH TiMF-6T1.0 |
6×3×1.0 |
0.5 |
1.5 |
21.5 |
590 |
MRE-M2XH TiMF-7T1.0 |
7×3×1.0 |
0.5 |
1.5 |
21.5 |
640 |
MRE-M2XH TiMF-8T1.0 |
8×3×1.0 |
0.5 |
1.6 |
23.3 |
740 |
MRE-M2XH TiMF-10T1.0 |
10×3×1.0 |
0.5 |
1.7 |
26.5 |
930 |
MRE-M2XH TiMF-12T1.0 |
12×3×1.0 |
0.5 |
1.8 |
28.2 |
1090 |
MRE-M2XH TiMF-14T1.0 |
14×3×1.0 |
0.5 |
1.8 |
29.4 |
1220 |
MRE-M2XH TiMF-16T1.0 |
16×3×1.0 |
0.5 |
1.9 |
31.5 |
1400 |
MRE-M2XH TiMF-19T1.0 |
19×3×1.0 |
0.5 |
2.0 |
34.1 |
1640 |
MRE-M2XH TiMF-20T1.0 |
20×3×1.0 |
0.5 |
2.0 |
34.7 |
1710 |
MRE-M2XH TiMF-24T1.0 |
24×3×1.0 |
0.5 |
2.1 |
37.9 |
2040 |
MRE-M2XH TiMF-30T1.0 |
30×3×1.0 |
0.5 |
2.3 |
42.3 |
2540 |
MRE-M2XH TiMF-32T1.0 |
32×3×1.0 |
0.5 |
2.4 |
44.0 |
2720 |
|
