IEC60092 STANDARD Offshore & Marine Cables |
|
|
MariSig Flame Retardant Instrumentation & Control Cables
MRE-3GCH 150/250V HEPR Insulated, LSOH (SHF1) Sheathed,
Armoured Flame Retardant Instrumentation & Control Cables
(Multipair)
Application
These armoured cables are used on board of ships in all locations for fixed installations
where cable protection is required. These cables are flame retardant, low smoke & halogen
free, suitable for installations on passenger ships, as on other commercial vessels.
Standards
DIN 89159/98
IEC 60092-351/375/359
IEC 60332-1
IEC 60332-3-22
IEC 60754-1/2
IEC 61034

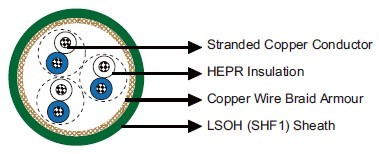

Construction
Conductors: Stranded copper conductor.
Insulation: HEPR.
Cabling Element: Pair.
Armour: Copper wire braid.
Outer Sheath: LSOH (SHF1).
Core Identification
Pair: white/ blue with printed pair number and core number.
Mechanical and Thermal Properties
Bending Radius for Fixed Installations: 6×OD
Temperature Range: -30℃ ~ +75℃
Dimensions and Weight
Part No. |
Construction
No. of elements×No. of cores in element×Cross
section(mm²) |
Nominal Insulation Thickness mm |
Nominal Sheath Thickness mm |
Nominal Overall
Diameter mm |
Nominal Weight kg/km |
MRE-3GCH-1P0.75 |
1×2×0.75 |
0.5 |
1.2 |
8.5 |
90 |
MRE-3GCH-2P0.75 |
2×2×0.75* |
0.5 |
1.3 |
9.5 |
130 |
MRE-3GCH-4P0.75 |
4×2×0.75 |
0.5 |
1.4 |
13.0 |
230 |
MRE-3GCH-7P0.75 |
7×2×0.75 |
0.5 |
1.8 |
15.5 |
340 |
MRE-3GCH-10P0.75 |
10×2×0.75 |
0.5 |
1.9 |
18.5 |
470 |
MRE-3GCH-14P0.75 |
14×2×0.75 |
0.5 |
2.0 |
21.0 |
610 |
MRE-3GCH-19P0.75 |
19×2×0.75 |
0.5 |
2.1 |
23.5 |
770 |
MRE-3GCH-24P0.75 |
24×2×0.75 |
0.5 |
2.2 |
26.5 |
950 |
*: 2 pairs are assembled as a quad. |
