IEC60092 STANDARD Offshore & Marine Cables |
|
|
MariSig Flame Retardant Instrumentation & Control Cables
MRE-2XCH 150/250V XLPE Insulated, LSOH (SHF1) Sheathed,
Armoured Flame Retardant Instrumentation & Control Cables
(Multicore)
Application
These armoured cables are used on board of ships in all locations for fixed installations
complying with IEC standards 60092-352. These cables are flame retardant, low smoke& halogen free, suitable for installations on passenger ships, as on other commercial vessels.
Standards
IEC 60092-350/351/376/359
IEC 60332-1
IEC 60332-3-22
IEC 60754-1/2
IEC 61034

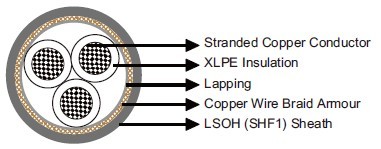

Construction
Conductors: Class 2 stranded copper conductor.
Insulation: XLPE.
Inner Covering: Lapping.
Armour: Copper wire braid.
Outer Sheath: LSOH (SHF1). SHF2 can be offered upon request.
Core Identification
White with printed number.
Mechanical and Thermal Properties
Bending Radius for Fixed Installations: 6×OD
Temperature Range: -30℃ ~ +80℃
Dimensions and Weight
Part No. |
Construction
No. of cores×Cross
section(mm²) |
Nominal Insulation
Thickness mm |
Nominal Sheath Thickness mm |
Nominal Overall
Diameter mm |
Nominal Weight kg/km |
MRE-2XCH-2C0.75 |
2×0.75 |
0.5 |
1.2 |
7.2 |
80 |
MRE-2XCH-3C0.75 |
3×0.75 |
0.5 |
1.2 |
7.5 |
90 |
MRE-2XCH-5C0.75 |
5×0.75 |
0.5 |
1.4 |
8.9 |
130 |
MRE-2XCH-7C0.75 |
7×0.75 |
0.5 |
1.6 |
9.8 |
150 |
MRE-2XCH-12C0.75 |
12×0.75 |
0.5 |
1.7 |
12.4 |
230 |
MRE-2XCH-19C0.75 |
19×0.75 |
0.5 |
1.9 |
14.6 |
320 |
MRE-2XCH-27C0.75 |
27×0.75 |
0.5 |
2.1 |
17.3 |
460 |
MRE-2XCH-37C0.75 |
37×0.75 |
0.5 |
2.2 |
19.3 |
590 |
MRE-2XCH-2C1.0 |
2×1.0 |
0.5 |
1.4 |
7.9 |
90 |
MRE-2XCH-3C1.0 |
3×1.0 |
0.5 |
1.4 |
8.3 |
100 |
MRE-2XCH-5C1.0 |
5×1.0 |
0.5 |
1.5 |
9.7 |
150 |
MRE-2XCH-7C1.0 |
7×1.0 |
0.5 |
1.6 |
10.4 |
180 |
MRE-2XCH-12C1.0 |
12×1.0 |
0.5 |
1.8 |
13.2 |
270 |
MRE-2XCH-19C1.0 |
19×1.0 |
0.5 |
2.1 |
15.9 |
420 |
MRE-2XCH-27C1.0 |
27×1.0 |
0.5 |
2.2 |
18.4 |
560 |
MRE-2XCH-37C1.0 |
37×1.0 |
0.5 |
2.4 |
20.7 |
710 |
|
