IEC60092 STANDARD Offshore & Marine Cables |
|
|
MariSig Flame Retardant Instrumentation & Control Cables
MRE-2XCH PiMF/TiMF 150/250V XLPE Insulated, LSOH (SHF1)
Sheathed, Individual Screened & Armoured Flame Retardant
Instrumentation & Control Cables (Multipair/Multitriple)
Application
These cables are used on board of ships at all locations for fixed installations complying
with IEC standards 60092-352. These cables are flame retardant, low smoke & halogen free,
suitable for installations on passenger ships, as on other commercial vessels.
Standards
IEC 60092-350/351/376/359
IEC 60332-1
IEC 60332-3-22
IEC 60754-1/2
IEC 61034

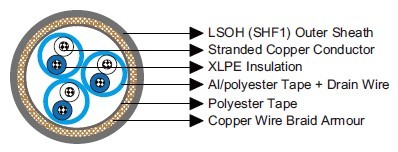

Construction
Conductors: Class 2 stranded copper conductor.
Insulation: XLPE.
Cabling Element: Pair/Triple.
Individual Screen: Al/polyester tape.
Drain Wire: Tinned copper wire.
Inner Covering: Lapped polyester tape.
Armour: Copper wire braid.
Outer Sheath: LSOH (SHF1). SHF2 can be offered upon request.
Core Identification
Pair: White/blue with printed pair number and core number.
Triple: White/blue/red with printed triple number.
Mechanical and Thermal Properties
Bending Radius for Fixed Installations: 6×OD
Temperature Range: -30℃ ~ +80℃
Dimensions and Weight
Part No. |
Construction
No. of elements×No. of cores in element×Cross
section(mm²) |
Nominal Insulation Thickness mm |
Nominal Sheath Thickness mm |
Nominal Overall Diameter mm |
Nominal Weight kg/km |
MRE-2XCH PiMF-1P0.75 |
1×2×0.75 |
0.5 |
1.2 |
8.3 |
110 |
MRE-2XCH PiMF-2P0.75 |
2×2×0.75 |
0.5 |
1.4 |
12.2 |
200 |
MRE-2XCH PiMF-3P0.75 |
3×2×0.75 |
0.5 |
1.4 |
13.0 |
240 |
MRE-2XCH PiMF-4P0.75 |
4×2×0.75 |
0.5 |
1.7 |
14.4 |
310 |
MRE-2XCH PiMF-5P0.75 |
5×2×0.75 |
0.5 |
1.7 |
15.9 |
370 |
MRE-2XCH PiMF-6P0.75 |
6×2×0.75 |
0.5 |
1.9 |
17.1 |
430 |
MRE-2XCH PiMF-7P0.75 |
7×2×0.75 |
0.5 |
1.9 |
17.1 |
450 |
MRE-2XCH PiMF-8P0.75 |
8×2×0.75 |
0.5 |
1.9 |
18.0 |
500 |
MRE-2XCH PiMF-10P0.75 |
10×2×0.75 |
0.5 |
2.0 |
20.2 |
610 |
MRE-2XCH PiMF-12P0.75 |
12×2×0.75 |
0.5 |
2.0 |
20.9 |
680 |
MRE-2XCH PiMF-14P0.75 |
14×2×0.75 |
0.5 |
2.0 |
21.7 |
750 |
MRE-2XCH PiMF-16P0.75 |
16×2×0.75 |
0.5 |
2.1 |
23.3 |
850 |
MRE-2XCH PiMF-19P0.75 |
19×2×0.75 |
0.5 |
2.2 |
25.0 |
980 |
MRE-2XCH PiMF-20P0.75 |
20×2×0.75 |
0.5 |
2.2 |
25.0 |
1010 |
MRE-2XCH PiMF-24P0.75 |
24×2×0.75 |
0.5 |
2.3 |
28.4 |
1220 |
MRE-2XCH PiMF-30P0.75 |
30×2×0.75 |
0.5 |
2.4 |
30.8 |
1460 |
MRE-2XCH PiMF-37P0.75 |
37×2×0.75 |
0.5 |
2.5 |
33.0 |
1720 |
MRE-2XCH PiMF-1P1.0 |
1×2×1.0 |
0.5 |
1.3 |
8.9 |
120 |
MRE-2XCH PiMF-2P1.0 |
2×2×1.0 |
0.5 |
1.4 |
12.9 |
230 |
MRE-2XCH PiMF-3P1.0 |
3×2×1.0 |
0.5 |
1.8 |
14.4 |
310 |
MRE-2XCH PiMF-4P1.0 |
4×2×1.0 |
0.5 |
1.8 |
15.2 |
360 |
MRE-2XCH PiMF-5P1.0 |
5×2×1.0 |
0.5 |
1.8 |
17.0 |
440 |
MRE-2XCH PiMF-6P1.0 |
6×2×1.0 |
0.5 |
1.8 |
18.1 |
500 |
MRE-2XCH PiMF-7P1.0 |
7×2×1.0 |
0.5 |
1.8 |
18.1 |
530 |
MRE-2XCH PiMF-8P1.0 |
8×2×1.0 |
0.5 |
1.8 |
19.1 |
590 |
MRE-2XCH PiMF-10P1.0 |
10×2×1.0 |
0.5 |
2.0 |
21.4 |
720 |
MRE-2XCH PiMF-12P1.0 |
12×2×1.0 |
0.5 |
2.1 |
22.4 |
820 |
MRE-2XCH PiMF-14P1.0 |
14×2×1.0 |
0.5 |
2.1 |
23.2 |
900 |
MRE-2XCH PiMF-16P1.0 |
16×2×1.0 |
0.5 |
2.2 |
25.0 |
1030 |
MRE-2XCH PiMF-19P1.0 |
19×2×1.0 |
0.5 |
2.2 |
26.6 |
1180 |
MRE-2XCH PiMF-20P1.0 |
20×2×1.0 |
0.5 |
2.2 |
26.6 |
1210 |
MRE-2XCH PiMF-24P1.0 |
24×2×1.0 |
0.5 |
2.4 |
30.4 |
1480 |
MRE-2XCH PiMF-30P1.0 |
30×2×1.0 |
0.5 |
2.5 |
33.0 |
1780 |
MRE-2XCH PiMF-37P1.0 |
37×2×1.0 |
0.5 |
2.5 |
35.2 |
2090 |
MRE-2XCH PiMF-1P1.5 |
1×2×1.5 |
0.6 |
1.3 |
9.9 |
150 |
MRE-2XCH PiMF-2P1.5 |
2×2×1.5 |
0.6 |
1.8 |
15.3 |
320 |
MRE-2XCH PiMF-3P1.5 |
3×2×1.5 |
0.6 |
1.8 |
16.3 |
390 |
MRE-2XCH PiMF-4P1.5 |
4×2×1.5 |
0.6 |
1.8 |
17.4 |
460 |
MRE-2XCH PiMF-5P1.5 |
5×2×1.5 |
0.6 |
1.8 |
19.5 |
560 |
MRE-2XCH PiMF-6P1.5 |
6×2×1.5 |
0.6 |
2.0 |
20.8 |
640 |
MRE-2XCH PiMF-7P1.5 |
7×2×1.5 |
0.6 |
2.0 |
20.8 |
690 |
MRE-2XCH PiMF-8P1.5 |
8×2×1.5 |
0.6 |
2.1 |
22.2 |
770 |
MRE-2XCH PiMF-10P1.5 |
10×2×1.5 |
0.6 |
2.2 |
24.9 |
950 |
MRE-2XCH PiMF-12P1.5 |
12×2×1.5 |
0.6 |
2.2 |
25.9 |
1070 |
MRE-2XCH PiMF-14P1.5 |
14×2×1.5 |
0.6 |
2.2 |
26.8 |
1180 |
MRE-2XCH PiMF-16P1.5 |
16×2×1.5 |
0.6 |
2.3 |
28.9 |
1350 |
MRE-2XCH PiMF-19P1.5 |
19×2×1.5 |
0.6 |
2.4 |
31.0 |
1560 |
MRE-2XCH PiMF-20P1.5 |
20×2×1.5 |
0.6 |
2.4 |
31.0 |
1600 |
MRE-2XCH PiMF-24P1.5 |
24×2×1.5 |
0.6 |
2.5 |
35.3 |
1950 |
MRE-2XCH PiMF-30P1.5 |
30×2×1.5 |
0.6 |
2.9 |
39.0 |
2450 |
MRE-2XCH PiMF-37P1.5 |
37×2×1.5 |
0.6 |
3.0 |
41.8 |
2900 |
MRE-2XCH TiMF-1T0.75 |
1×3×0.75 |
0.5 |
1.3 |
8.9 |
120 |
MRE-2XCH TiMF-2T0.75 |
2×3×0.75 |
0.5 |
1.4 |
13.2 |
230 |
MRE-2XCH TiMF-3T0.75 |
3×3×0.75 |
0.5 |
1.8 |
14.6 |
320 |
MRE-2XCH TiMF-4T0.75 |
4×3×0.75 |
0.5 |
1.8 |
15.8 |
380 |
MRE-2XCH TiMF-5T0.75 |
5×3×0.75 |
0.5 |
1.8 |
17.5 |
460 |
MRE-2XCH TiMF-6T0.75 |
6×3×0.75 |
0.5 |
2.0 |
19.6 |
550 |
MRE-2XCH TiMF-7T0.75 |
7×3×0.75 |
0.5 |
2.0 |
19.6 |
580 |
MRE-2XCH TiMF-8T0.75 |
8×3×0.75 |
0.5 |
2.0 |
20.9 |
650 |
MRE-2XCH TiMF-10T0.75 |
10×3×0.75 |
0.5 |
2.1 |
23.5 |
800 |
MRE-2XCH TiMF-12T0.75 |
12×3×0.75 |
0.5 |
2.2 |
24.9 |
910 |
MRE-2XCH TiMF-14T0.75 |
14×3×0.75 |
0.5 |
2.2 |
25.9 |
1010 |
MRE-2XCH TiMF-16T0.75 |
16×3×0.75 |
0.5 |
2.3 |
27.6 |
1140 |
MRE-2XCH TiMF-19T0.75 |
19×3×0.75 |
0.5 |
2.3 |
29.5 |
1300 |
MRE-2XCH TiMF-20T0.75 |
20×3×0.75 |
0.5 |
2.3 |
30.0 |
1350 |
MRE-2XCH TiMF-24T0.75 |
24×3×0.75 |
0.5 |
2.4 |
32.6 |
1590 |
MRE-2XCH TiMF-30T0.75 |
30×3×0.75 |
0.5 |
2.8 |
36.7 |
2030 |
MRE-2XCH TiMF-32T0.75 |
32×3×0.75 |
0.5 |
2.8 |
37.9 |
2150 |
MRE-2XCH TiMF-1T1.0 |
1×3×1.0 |
0.5 |
1.3 |
9.3 |
140 |
MRE-2XCH TiMF-2T1.0 |
2×3×1.0 |
0.5 |
1.8 |
14.6 |
310 |
MRE-2XCH TiMF-3T1.0 |
3×3×1.0 |
0.5 |
1.8 |
15.4 |
370 |
MRE-2XCH TiMF-4T1.0 |
4×3×1.0 |
0.5 |
1.8 |
16.9 |
450 |
MRE-2XCH TiMF-5T1.0 |
5×3×1.0 |
0.5 |
1.8 |
18.5 |
530 |
MRE-2XCH TiMF-6T1.0 |
6×3×1.0 |
0.5 |
2.0 |
20.8 |
640 |
MRE-2XCH TiMF-7T1.0 |
7×3×1.0 |
0.5 |
2.0 |
20.8 |
680 |
MRE-2XCH TiMF-8T1.0 |
8×3×1.0 |
0.5 |
2.1 |
22.4 |
780 |
MRE-2XCH TiMF-10T1.0 |
10×3×1.0 |
0.5 |
2.2 |
25.2 |
960 |
MRE-2XCH TiMF-12T1.0 |
12×3×1.0 |
0.5 |
2.2 |
26.5 |
1080 |
MRE-2XCH TiMF-14T1.0 |
14×3×1.0 |
0.5 |
2.3 |
27.8 |
1220 |
MRE-2XCH TiMF-16T1.0 |
16×3×1.0 |
0.5 |
2.3 |
29.4 |
1360 |
MRE-2XCH TiMF-19T1.0 |
19×3×1.0 |
0.5 |
2.4 |
31.7 |
1580 |
MRE-2XCH TiMF-20T1.0 |
20×3×1.0 |
0.5 |
2.4 |
32.2 |
1640 |
MRE-2XCH TiMF-24T1.0 |
24×3×1.0 |
0.5 |
2.5 |
35.0 |
1930 |
MRE-2XCH TiMF-30T1.0 |
30×3×1.0 |
0.5 |
2.9 |
39.4 |
2470 |
MRE-2XCH TiMF-32T1.0 |
32×3×1.0 |
0.5 |
2.9 |
40.7 |
2620 |
MRE-2XCH TiMF-1T1.5 |
1×3×1.5 |
0.6 |
1.3 |
10.4 |
170 |
MRE-2XCH TiMF-2T1.5 |
2×3×1.5 |
0.6 |
1.8 |
16.5 |
380 |
MRE-2XCH TiMF-3T1.5 |
3×3×1.5 |
0.6 |
1.9 |
17.7 |
480 |
MRE-2XCH TiMF-4T1.5 |
4×3×1.5 |
0.6 |
1.9 |
19.2 |
570 |
MRE-2XCH TiMF-5T1.5 |
5×3×1.5 |
0.6 |
1.9 |
21.3 |
690 |
MRE-2XCH TiMF-6T1.5 |
6×3×1.5 |
0.6 |
2.1 |
24.0 |
840 |
MRE-2XCH TiMF-7T1.5 |
7×3×1.5 |
0.6 |
2.1 |
24.0 |
900 |
MRE-2XCH TiMF-8T1.5 |
8×3×1.5 |
0.6 |
2.2 |
25.8 |
1020 |
MRE-2XCH TiMF-10T1.5 |
10×3×1.5 |
0.6 |
2.3 |
29.1 |
1260 |
MRE-2XCH TiMF-12T1.5 |
12×3×1.5 |
0.6 |
2.4 |
30.9 |
1450 |
MRE-2XCH TiMF-14T1.5 |
14×3×1.5 |
0.6 |
2.4 |
32.2 |
1620 |
MRE-2XCH TiMF-16T1.5 |
16×3×1.5 |
0.6 |
2.5 |
34.3 |
1830 |
MRE-2XCH TiMF-19T1.5 |
19×3×1.5 |
0.6 |
2.8 |
37.5 |
2210 |
MRE-2XCH TiMF-20T1.5 |
20×3×1.5 |
0.6 |
2.8 |
38.1 |
2300 |
MRE-2XCH TiMF-24T1.5 |
24×3×1.5 |
0.6 |
3.0 |
41.6 |
2720 |
MRE-2XCH TiMF-30T1.5 |
30×3×1.5 |
0.6 |
3.1 |
45.9 |
3310 |
MRE-2XCH TiMF-32T1.5 |
32×3×1.5 |
0.6 |
3.2 |
47.7 |
3530 |
|
