IEC60092 STANDARD Offshore & Marine Cables |
|
|
MariSig Flame Retardant Instrumentation & Control Cables
MRE-2XCH 150/250V XLPE Insulated, LSOH (SHF1) Sheathed,
Armoured Flame Retardant Instrumentation & Control Cables
(Multipair/Multitriple)
Application
These armoured cables are used on board of ships in all locations for fixed installations
complying with IEC standards 60092-352. These cables are flame retardant, low smoke& halogen free, suitable for installations on passenger ships, as on other commercial vessels.
Standards
IEC 60092-350/351/376/359
IEC 60332-1
IEC 60332-3-22
IEC 60754-1/2
IEC 61034

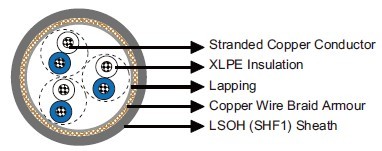

Construction
Conductors: Class 2 stranded copper conductor.
Insulation: XLPE.
Cabling Element: Pair/Triple.
Inner Covering: Lapped polyester tape.
Armour: Copper wire braid.
Outer Sheath: LSOH (SHF1). SHF2 can be offered upon request.
Core Identification
Pair: White/blue with printed pair number and core number.
Triple: White/blue/red with printed triple number.
Mechanical and Thermal Properties
Bending Radius for Fixed Installations: 6×OD
Temperature Range: -30℃ ~ +80℃
Dimensions and Weight
Part No. |
Construction
No. of elements×No. of cores in element×Cross
section(mm²) |
Nominal Insulation
Thickness mm |
Nominal Sheath Thickness mm |
Nominal Overall
Diameter mm |
Nominal Weight kg/km |
MRE-2XCH-1P0.75 |
1×2×0.75 |
0.5 |
1.2 |
8.1 |
90 |
MRE-2XCH-2P0.75 |
2×2×0.75 |
0.5 |
1.3 |
9.3 |
130 |
MRE-2XCH-3P0.75 |
3×2×0.75 |
0.5 |
1.4 |
12.4 |
200 |
MRE-2XCH-4P0.75 |
4×2×0.75 |
0.5 |
1.4 |
13.1 |
230 |
MRE-2XCH-5P0.75 |
5×2×0.75 |
0.5 |
1.8 |
15.2 |
320 |
MRE-2XCH-6P0.75 |
6×2×0.75 |
0.5 |
1.8 |
16.1 |
350 |
MRE-2XCH-7P0.75 |
7×2×0.75 |
0.5 |
1.8 |
16.1 |
370 |
MRE-2XCH-8P0.75 |
8×2×0.75 |
0.5 |
1.9 |
17.2 |
420 |
MRE-2XCH-10P0.75 |
10×2×0.75 |
0.5 |
1.9 |
19.1 |
500 |
MRE-2XCH-12P0.75 |
12×2×0.75 |
0.5 |
2.0 |
20.0 |
560 |
MRE-2XCH-14P0.75 |
14×2×0.75 |
0.5 |
2.0 |
20.6 |
610 |
MRE-2XCH-16P0.75 |
16×2×0.75 |
0.5 |
2.1 |
22.2 |
690 |
MRE-2XCH-19P0.75 |
19×2×0.75 |
0.5 |
2.1 |
23.6 |
790 |
MRE-2XCH-20P0.75 |
20×2×0.75 |
0.5 |
2.1 |
23.6 |
800 |
MRE-2XCH-24P0.75 |
24×2×0.75 |
0.5 |
2.2 |
26.8 |
980 |
MRE-2XCH-30P0.75 |
30×2×0.75 |
0.5 |
2.3 |
29.1 |
1160 |
MRE-2XCH-37P0.75 |
37×2×0.75 |
0.5 |
2.4 |
31.1 |
1360 |
MRE-2XCH-1P1.0 |
1×2×1.0 |
0.5 |
1.3 |
8.7 |
110 |
MRE-2XCH-2P1.0 |
2×2×1.0 |
0.5 |
1.3 |
9.7 |
150 |
MRE-2XCH-3P1.0 |
3×2×1.0 |
0.5 |
1.4 |
13.2 |
230 |
MRE-2XCH-4P1.0 |
4×2×1.0 |
0.5 |
1.8 |
14.6 |
310 |
MRE-2XCH-5P1.0 |
5×2×1.0 |
0.5 |
1.8 |
16.1 |
360 |
MRE-2XCH-6P1.0 |
6×2×1.0 |
0.5 |
1.9 |
17.3 |
420 |
MRE-2XCH-7P1.0 |
7×2×1.0 |
0.5 |
1.9 |
17.3 |
440 |
MRE-2XCH-8P1.0 |
8×2×1.0 |
0.5 |
1.9 |
18.3 |
490 |
MRE-2XCH-10P1.0 |
10×2×1.0 |
0.5 |
2.0 |
20.5 |
590 |
MRE-2XCH-12P1.0 |
12×2×1.0 |
0.5 |
2.0 |
21.3 |
660 |
MRE-2XCH-14P1.0 |
14×2×1.0 |
0.5 |
2.1 |
22.2 |
730 |
MRE-2XCH-16P1.0 |
16×2×1.0 |
0.5 |
2.1 |
23.7 |
820 |
MRE-2XCH-19P1.0 |
19×2×1.0 |
0.5 |
2.2 |
25.4 |
940 |
MRE-2XCH-20P1.0 |
20×2×1.0 |
0.5 |
2.2 |
25.4 |
960 |
MRE-2XCH-24P1.0 |
24×2×1.0 |
0.5 |
2.3 |
28.9 |
1170 |
MRE-2XCH-30P1.0 |
30×2×1.0 |
0.5 |
2.4 |
31.3 |
1400 |
MRE-2XCH-37P1.0 |
37×2×1.0 |
0.5 |
2.5 |
33.5 |
1640 |
MRE-2XCH-1P1.5 |
1×2×1.5 |
0.6 |
1.3 |
9.7 |
140 |
MRE-2XCH-2P1.5 |
2×2×1.5 |
0.6 |
1.3 |
10.9 |
190 |
MRE-2XCH-3P1.5 |
3×2×1.5 |
0.6 |
1.8 |
15.7 |
340 |
MRE-2XCH-4P1.5 |
4×2×1.5 |
0.6 |
1.9 |
16.8 |
400 |
MRE-2XCH-5P1.5 |
5×2×1.5 |
0.6 |
1.9 |
18.6 |
480 |
MRE-2XCH-6P1.5 |
6×2×1.5 |
0.6 |
2.0 |
20.0 |
550 |
MRE-2XCH-7P1.5 |
7×2×1.5 |
0.6 |
2.0 |
20.0 |
590 |
MRE-2XCH-8P1.5 |
8×2×1.5 |
0.6 |
2.0 |
21.2 |
650 |
MRE-2XCH-10P1.5 |
10×2×1.5 |
0.6 |
2.1 |
23.8 |
800 |
MRE-2XCH-12P1.5 |
12×2×1.5 |
0.6 |
2.2 |
24.9 |
900 |
MRE-2XCH-14P1.5 |
14×2×1.5 |
0.6 |
2.2 |
25.8 |
990 |
MRE-2XCH-16P1.5 |
16×2×1.5 |
0.6 |
2.3 |
27.8 |
1130 |
MRE-2XCH-19P1.5 |
19×2×1.5 |
0.6 |
2.3 |
29.6 |
1290 |
MRE-2XCH-20P1.5 |
20×2×1.5 |
0.6 |
2.3 |
29.6 |
1320 |
MRE-2XCH-24P1.5 |
24×2×1.5 |
0.6 |
2.5 |
33.9 |
1630 |
MRE-2XCH-30P1.5 |
30×2×1.5 |
0.6 |
2.8 |
37.3 |
2040 |
MRE-2XCH-37P1.5 |
37×2×1.5 |
0.6 |
2.9 |
39.9 |
2390 |
MRE-2XCH-1T0.75 |
1×3×0.75 |
0.5 |
1.3 |
8.7 |
110 |
MRE-2XCH-2T0.75 |
2×3×0.75 |
0.5 |
1.4 |
12.6 |
210 |
MRE-2XCH-3T0.75 |
3×3×0.75 |
0.5 |
1.4 |
13.3 |
240 |
MRE-2XCH-4T0.75 |
4×3×0.75 |
0.5 |
1.8 |
15.2 |
330 |
MRE-2XCH-5T0.75 |
5×3×0.75 |
0.5 |
1.9 |
16.8 |
400 |
MRE-2XCH-6T0.75 |
6×3×0.75 |
0.5 |
1.9 |
18.6 |
470 |
MRE-2XCH-7T0.75 |
7×3×0.75 |
0.5 |
1.9 |
18.6 |
490 |
MRE-2XCH-8T0.75 |
8×3×0.75 |
0.5 |
2.0 |
20.0 |
560 |
MRE-2XCH-10T0.75 |
10×3×0.75 |
0.5 |
2.1 |
22.5 |
690 |
MRE-2XCH-12T0.75 |
12×3×0.75 |
0.5 |
2.1 |
23.6 |
770 |
MRE-2XCH-14T0.75 |
14×3×0.75 |
0.5 |
2.1 |
24.5 |
850 |
MRE-2XCH-16T0.75 |
16×3×0.75 |
0.5 |
2.2 |
26.1 |
950 |
MRE-2XCH-19T0.75 |
19×3×0.75 |
0.5 |
2.3 |
28.2 |
1100 |
MRE-2XCH-20T0.75 |
20×3×0.75 |
0.5 |
2.3 |
28.6 |
1140 |
MRE-2XCH-24T0.75 |
24×3×0.75 |
0.5 |
2.4 |
31.1 |
1340 |
MRE-2XCH-30T0.75 |
30×3×0.75 |
0.5 |
2.5 |
34.3 |
1620 |
MRE-2XCH-32T0.75 |
32×3×0.75 |
0.5 |
2.5 |
35.4 |
1720 |
MRE-2XCH-1T1.0 |
1×3×1.0 |
0.5 |
1.3 |
9.1 |
130 |
MRE-2XCH-2T1.0 |
2×3×1.0 |
0.5 |
1.4 |
13.4 |
240 |
MRE-2XCH-3T1.0 |
3×3×1.0 |
0.5 |
1.8 |
14.9 |
320 |
MRE-2XCH-4T1.0 |
4×3×1.0 |
0.5 |
1.8 |
16.1 |
380 |
MRE-2XCH-5T1.0 |
5×3×1.0 |
0.5 |
1.9 |
17.8 |
460 |
MRE-2XCH-6T1.0 |
6×3×1.0 |
0.5 |
2.0 |
20.0 |
560 |
MRE-2XCH-7T1.0 |
7×3×1.0 |
0.5 |
2.0 |
20.0 |
590 |
MRE-2XCH-8T1.0 |
8×3×1.0 |
0.5 |
2.0 |
21.3 |
660 |
MRE-2XCH-10T1.0 |
10×3×1.0 |
0.5 |
2.1 |
24.0 |
810 |
MRE-2XCH-12T1.0 |
12×3×1.0 |
0.5 |
2.2 |
25.4 |
920 |
MRE-2XCH-14T1.0 |
14×3×1.0 |
0.5 |
2.2 |
26.4 |
1020 |
MRE-2XCH-16T1.0 |
16×3×1.0 |
0.5 |
2.3 |
28.1 |
1150 |
MRE-2XCH-19T1.0 |
19×3×1.0 |
0.5 |
2.4 |
30.3 |
1330 |
MRE-2XCH-20T1.0 |
20×3×1.0 |
0.5 |
2.4 |
30.8 |
1380 |
MRE-2XCH-24T1.0 |
24×3×1.0 |
0.5 |
2.5 |
33.5 |
1620 |
MRE-2XCH-30T1.0 |
30×3×1.0 |
0.5 |
2.8 |
37.5 |
2060 |
MRE-2XCH-32T1.0 |
32×3×1.0 |
0.5 |
2.9 |
38.9 |
2190 |
MRE-2XCH-1T1.5 |
1×3×1.5 |
0.6 |
1.3 |
10.2 |
160 |
MRE-2XCH-2T1.5 |
2×3×1.5 |
0.6 |
1.8 |
16.0 |
350 |
MRE-2XCH-3T1.5 |
3×3×1.5 |
0.6 |
1.9 |
17.1 |
430 |
MRE-2XCH-4T1.5 |
4×3×1.5 |
0.6 |
1.9 |
18.6 |
510 |
MRE-2XCH-5T1.5 |
5×3×1.5 |
0.6 |
2.0 |
20.6 |
620 |
MRE-2XCH-6T1.5 |
6×3×1.5 |
0.6 |
2.1 |
23.2 |
750 |
MRE-2XCH-7T1.5 |
7×3×1.5 |
0.6 |
2.1 |
23.2 |
800 |
MRE-2XCH-8T1.5 |
8×3×1.5 |
0.6 |
2.2 |
24.9 |
900 |
MRE-2XCH-10T1.5 |
10×3×1.5 |
0.6 |
2.3 |
28.1 |
1110 |
MRE-2XCH-12T1.5 |
12×3×1.5 |
0.6 |
2.3 |
29.6 |
1260 |
MRE-2XCH-14T1.5 |
14×3×1.5 |
0.6 |
2.4 |
31.0 |
1410 |
MRE-2XCH-16T1.5 |
16×3×1.5 |
0.6 |
2.5 |
33.0 |
1590 |
MRE-2XCH-19T1.5 |
19×3×1.5 |
0.6 |
2.5 |
35.4 |
1830 |
MRE-2XCH-20T1.5 |
20×3×1.5 |
0.6 |
2.8 |
36.7 |
2010 |
MRE-2XCH-24T1.5 |
24×3×1.5 |
0.6 |
2.9 |
39.9 |
2360 |
MRE-2XCH-30T1.5 |
30×3×1.5 |
0.6 |
3.1 |
44.2 |
2880 |
MRE-2XCH-32T1.5 |
32×3×1.5 |
0.6 |
3.1 |
45.7 |
3060 |
|
