KX Series Coaxial Cables 50 Ω/75 Ω
Application
These radio frequency cables are suitable for high frequency data transmission
(communication equipment, radar, instrumentation equipment) and video signal transmission.
Standards
In line with MIL C17
IEC 60092-359
IEC 60332-3-22
IEC 60754-1/2
IEC 61034

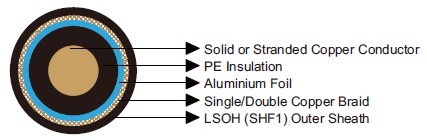

Construction
Conductors: Solid or stranded CCS (Bare copper plated steel), BC (Bare copper).
Insulation: PE.
Fire Barriers: Aluminium foil.
Screen: Single or double braid. Bare, tinned or silvered copper
Outer Sheath: LSOH (SHF1).
Electrical Characteristics
|
|
KX 3B |
KX 6A |
KX 8 |
Characteristic Impedance |
Ω |
50 |
75 |
75 |
Capacitance |
pF/m |
106 |
72 |
72 |
Velocity |
% |
66 |
66 |
66 |
Attenuation @200MHz |
dB/100m |
45 |
20 |
12 |
Mechanical and Thermal Properties
Bending Radius for Fixed Installations: 10×OD
Temperature Range: -30℃ ~ +60℃
Dimensions and Weight
50 Ω
Part No. |
Cable Type |
Conductor
Stranding
No.×mm |
Conductor Diameter mm |
Dielectric Diameter mm |
Nominal Overall
Diameter mm |
Nominal Weight kg/km |
MLN-KX3B |
KX 3B |
7×0.16 CCS |
0.48 |
1.50 |
2.55 |
10 |
75 Ω
Part No. |
Cable Type |
Conductor
Stranding
No.×mm |
Conductor Diameter mm |
Dielectric Diameter mm |
Nominal Overall
Diameter mm |
Nominal Weight kg/km |
MLN-KX6A |
KX 6A |
7×0.20 BC |
0.6 |
3.7 |
6.1 |
57 |
MLN-KX8 |
KX 8 |
7×0.40 BC |
1.2 |
7.25 |
10.3 |
145 |
|
